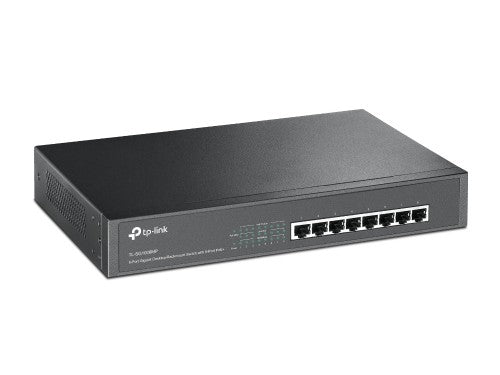

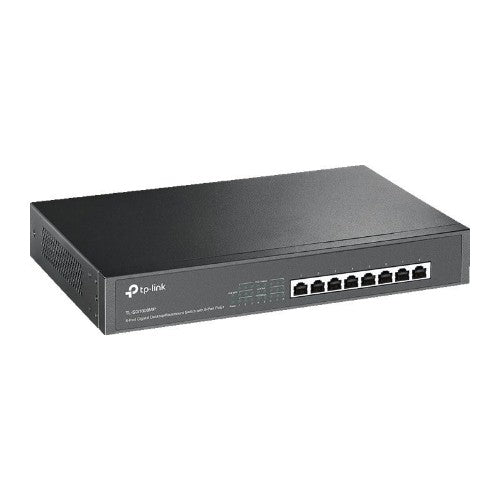

TP-Link TL-SG1008MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

8x 10/100/1000 Mb/s RJ-45, PoE+, 16 Gb/s, Rack Mountable

Key Features

• 8 10/100/1000Mbps RJ45 ports
• Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
• Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
• Innovative energy-efficient technology reduces power consumption
• Rack mountable with included rack mount bracket
• Total PoE power budget up to 126W
• Plug and play design, no configuration required

Description

What This Product Does
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.

Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Packet buffer memory	1.5 MB
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Yes
Design
Product colour	Black
Rack mounting	Yes
Number of fans	1 fan(s)
Certification	FCC, CE, RoHS
Performance
Minimum system requirements	1
Mean time between failures (MTBF)	1 h
Commodity Classification Automated Tracking System (CCATS)	11
MTBF (PoE)	1 h
Packet buffer memory	1.5 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	144.4 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	140.1 W
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	492.6 BTU/h
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Technical details
Product colour	Black
Mean time between failures (MTBF)	1 h
Rack mounting	Yes
Shipping (inner) case width	1 mm
Shipping (inner) case net weight	1 g
Shipping (inner) case length	1 mm
Shipping (inner) case height	1 mm
Products per shipping (inner) case	1 pc(s)
Layers per pallet (sea)	1 pc(s)
Layers per pallet (air)	1 pc(s)
Master (outer) cases per pallet layer	1 pc(s)
Products per pallet (sea)	11 pc(s)
Products per pallet (air)	1 pc(s)
Pallet gross width	1 mm
Pallet gross length	1 mm
Pallet height (sea)	1 mm
Pallet height (air)	1 mm
Pallet gross weight (sea)	1 g
Pallet gross weight (air)	1 g
Master (outer) cases per pallet (sea)	1 pc(s)
Master (outer) cases per pallet (air)	11 pc(s)
Shipping (inner) case gross weight	1 g
Memory
Packet buffer memory	1.5 MB
Certificates
Certification	FCC, CE, RoHS
System requirements
Minimum system requirements	1
Packaging data
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Logistics data
Harmonized System (HS) code	85176990
