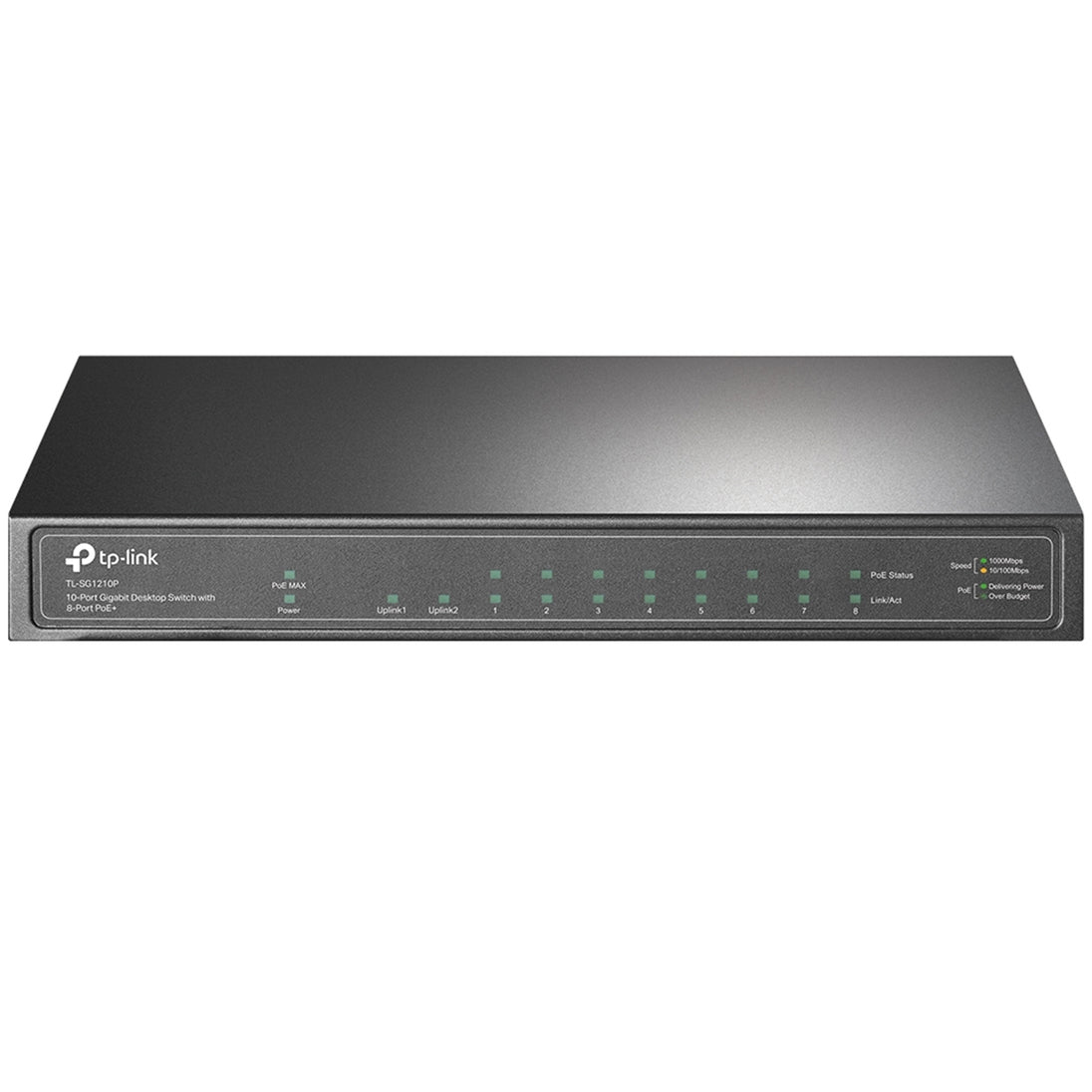

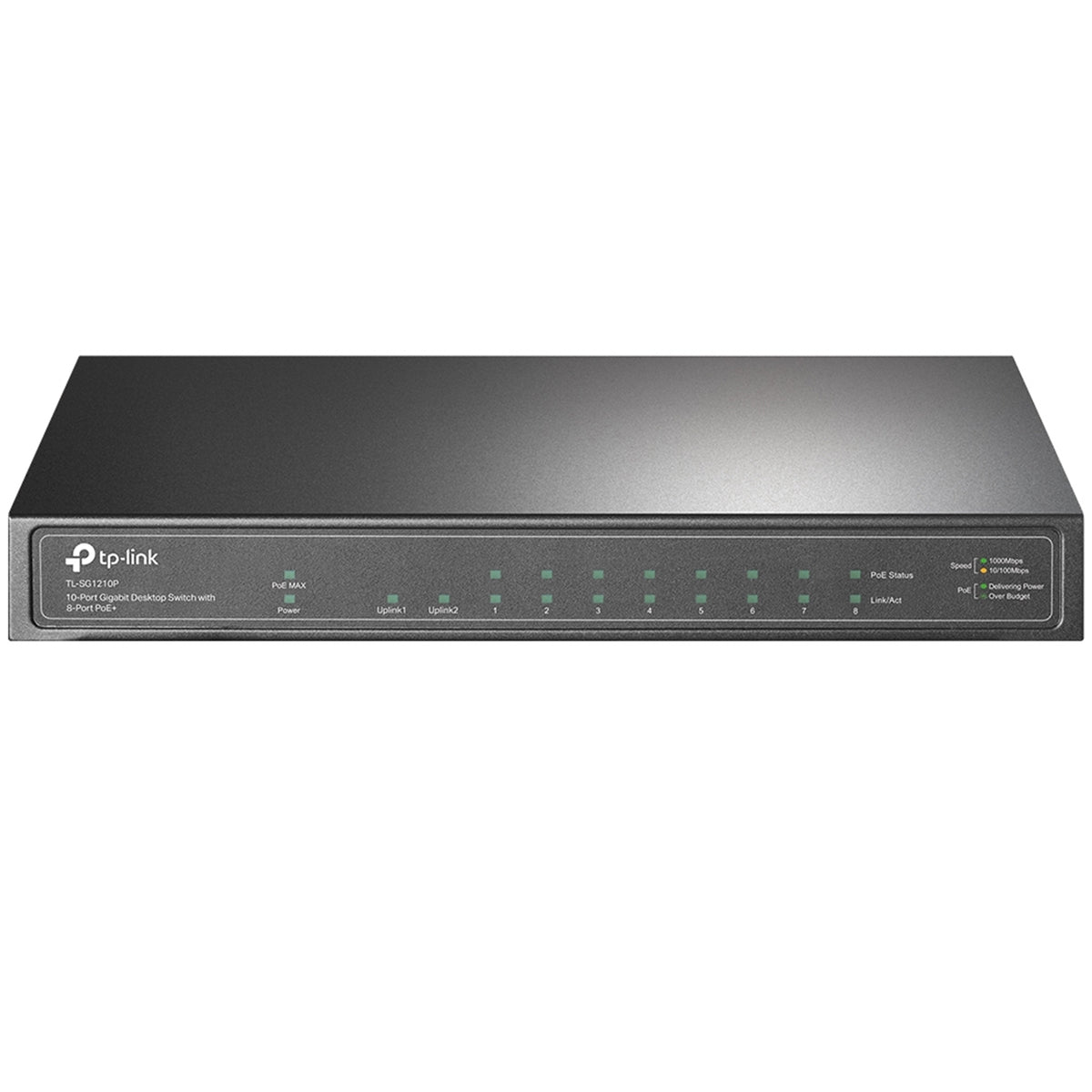

The TP-Link TL-SG1210P is an unmanaged desktop Gigabit Ethernet switch for small offices, home networks and installations with several powered devices. It provides network connections for computers and other wired equipment, with PoE+ on eight ports for compatible devices such as IP cameras, IP phones and wireless access points.
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Advanced Features
- Compatible With IEEE 802.3af/at Compliant PDs
- EEE802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
Specification
| Specification | Detail |
|---|---|
| Intelligent Power Management | When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation. |
| Sturdy Metal Casing | Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation. |

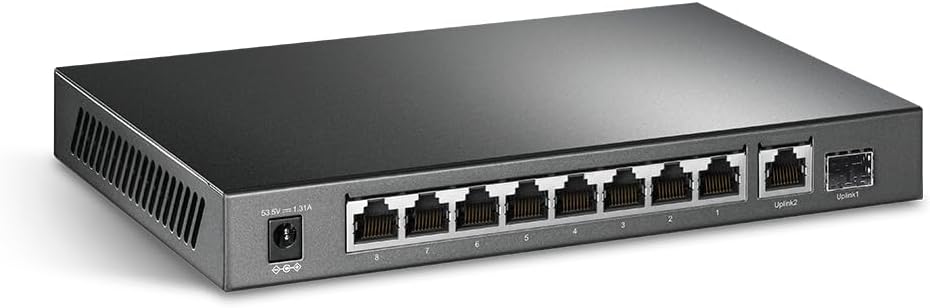

| Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter (Output: 53.5VDC / 1.31A) |
| Backup Bandwidth | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 209 x 126 x 26 mm |
| Max Power Consumption | 7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected) |
| Max Heat Dissipation | 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) |
| Transmission Method | Store-And-Forward |
| Certification | CE, FCC, RoHS |

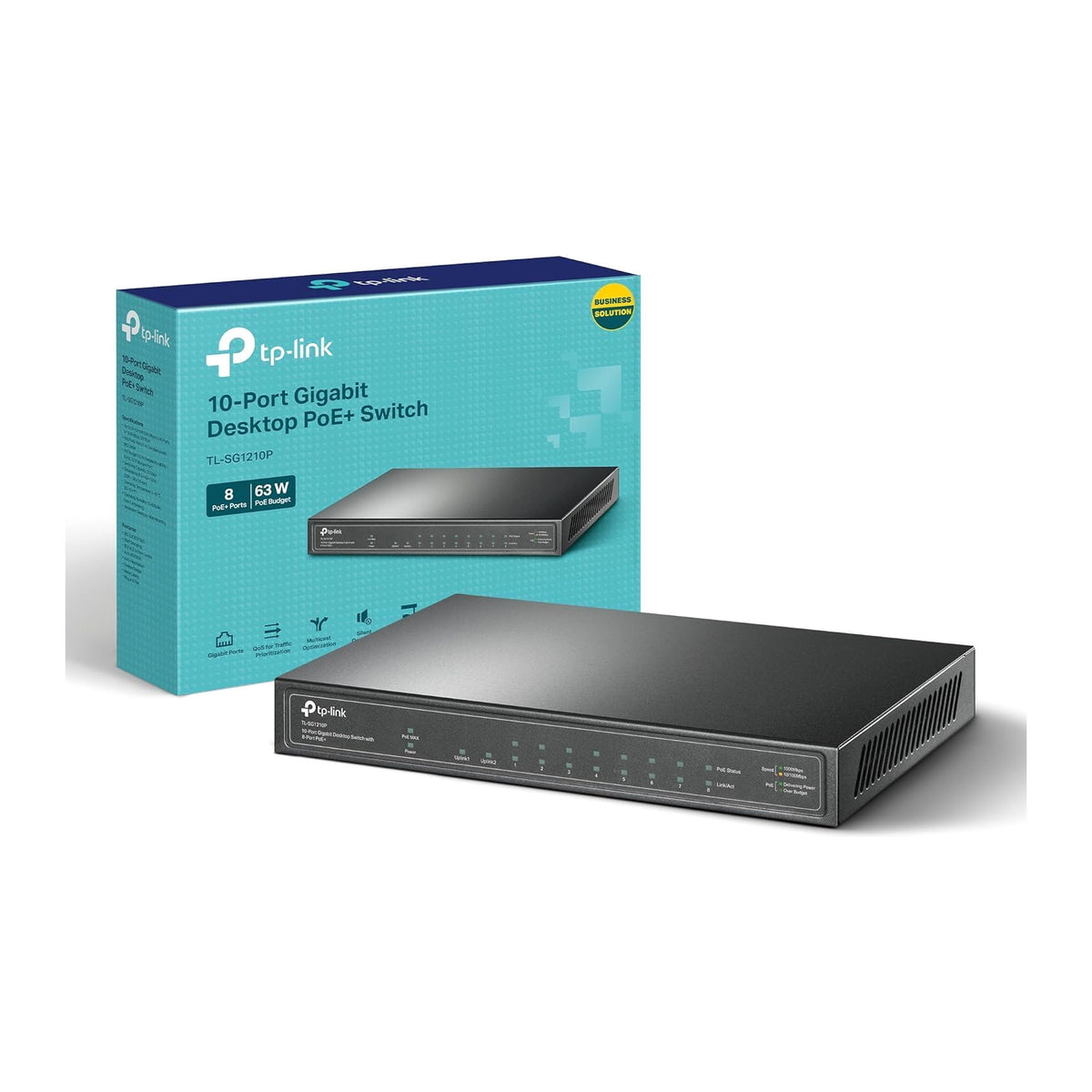

| Package Contents | TL-SG1210P, Power Adapter, Installation Guide |
-
