The TP-Link TL-SG1218MP is an unmanaged Gigabit switch for small businesses, offices and other networks that need to connect several wired devices. Its 16 PoE+ ports make it a practical choice for powering IP cameras, wireless access points or IP phones over Ethernet, while also providing connections for computers and printers.
Key features
- 16 x gigabit PoE+ RJ45 ports, 2 x gigabit non-PoE RJ45 ports, and 2x combo gigabit SFP slots
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports
- Working with IEEE 802.3af/at compliant PDs
- Plug and play, with no configuration and installation needed
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ?)
Specification
| Specification | Detail |
|---|---|
| Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications | Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16x gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc. |
| QoS for a Lag-Free Experience | Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS). |
| Intelligent Power Management to Prevent Power Overload | When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged. |

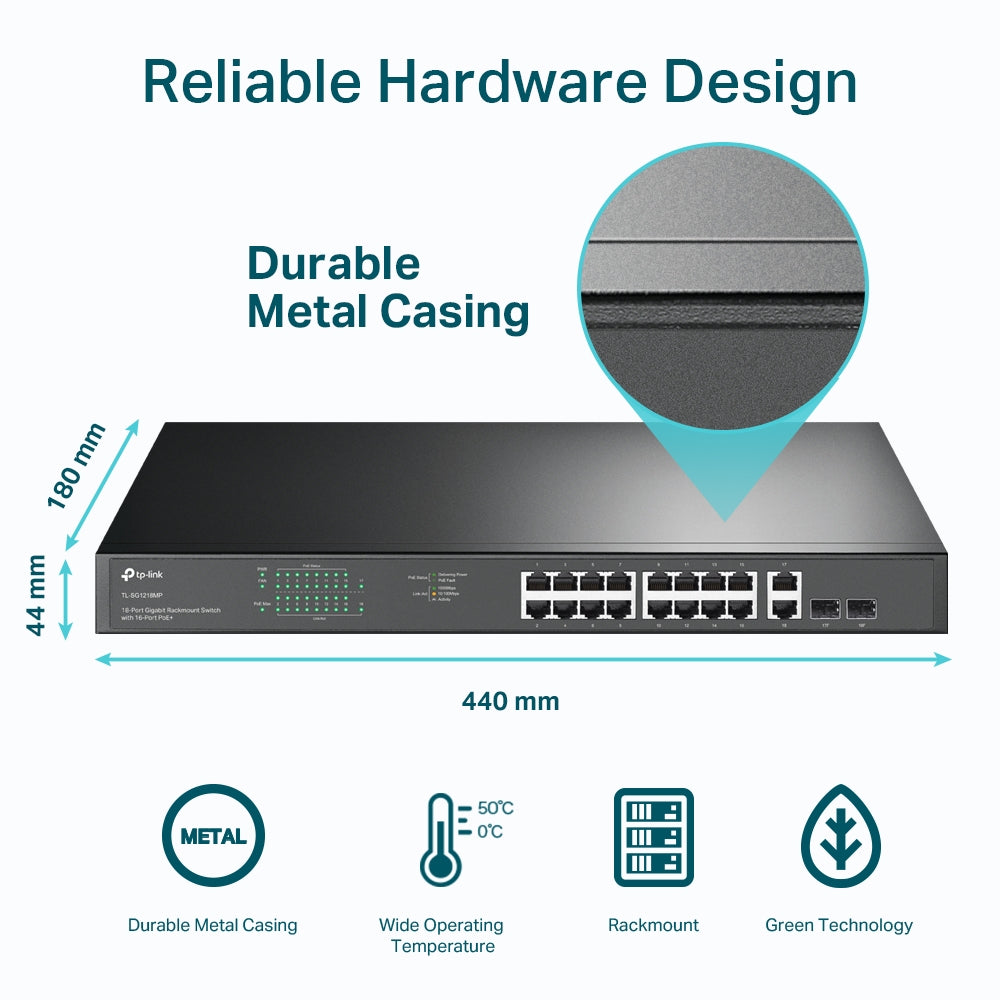

| Wide Operating Temperature with Good Heat Dissipation | Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50?) with reliability. |
| Multiple Application Scenarios | The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface | • 16 x PoE+ gigabit RJ45 ports • 2 x gigabit non-PoE RJ45 ports • 2 x combo gigabit SFP slots |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100O STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100O STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100O STP (maximum 100m) • 1000BASE-X MMF, SMF |
| Fan Quantity | 2 |
| Physical Security Lock | Yes |
| Power Supply | 100–240 VAC, 50/60 Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W |
| Dimensions ( W x D x H ) | 17.3 x 7.1 x 1.73 in (440 x 180 x 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | • 21.4 W (220/50 Hz. no PD connected) • 286.64 W (220/50 Hz. with 250 W PD connected) |
| Max Heat Dissipation | • 72.97 BTU/h (no PD connected) • 977.44 BTU/h (with 250 W PD connected) |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • 802.1p/DHCP QoS • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| Jumbo Frame | 10 KB |
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SG1218MP • Installation Guide • Power Cord • Rackmount Kit • Rubber Feet |
| Environment | • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
-
