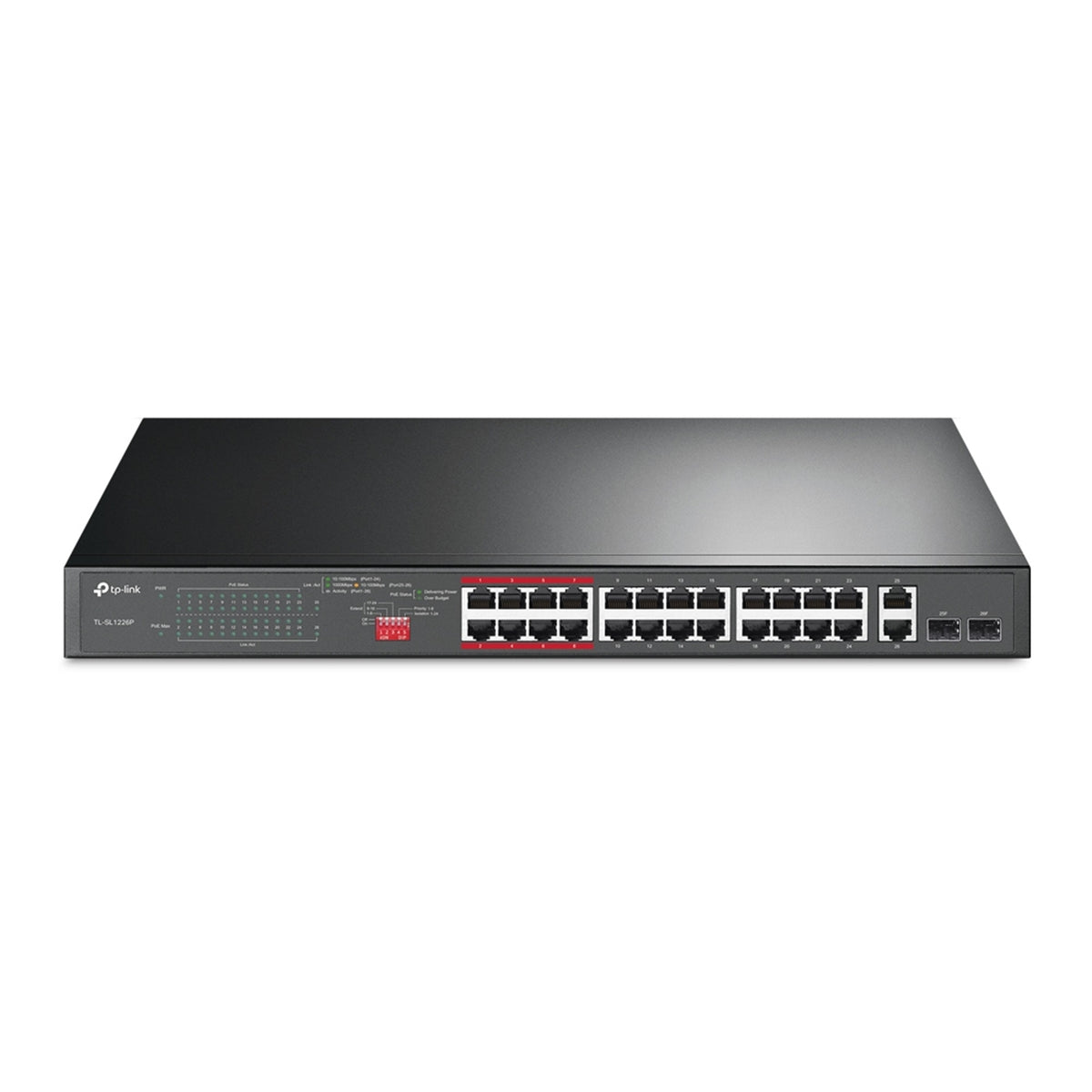

The TP-Link TL-SL1226P is an unmanaged PoE+ switch for surveillance systems, offices and small businesses. It suits teams connecting IP cameras, wireless access points and IP phones that need network data and power over Ethernet.
Key features
- 24 x PoE+ 10/100 Mbps RJ45 ports, 2 x Gigabit RJ45 ports, and 2 x combo Gigabit SFP slots

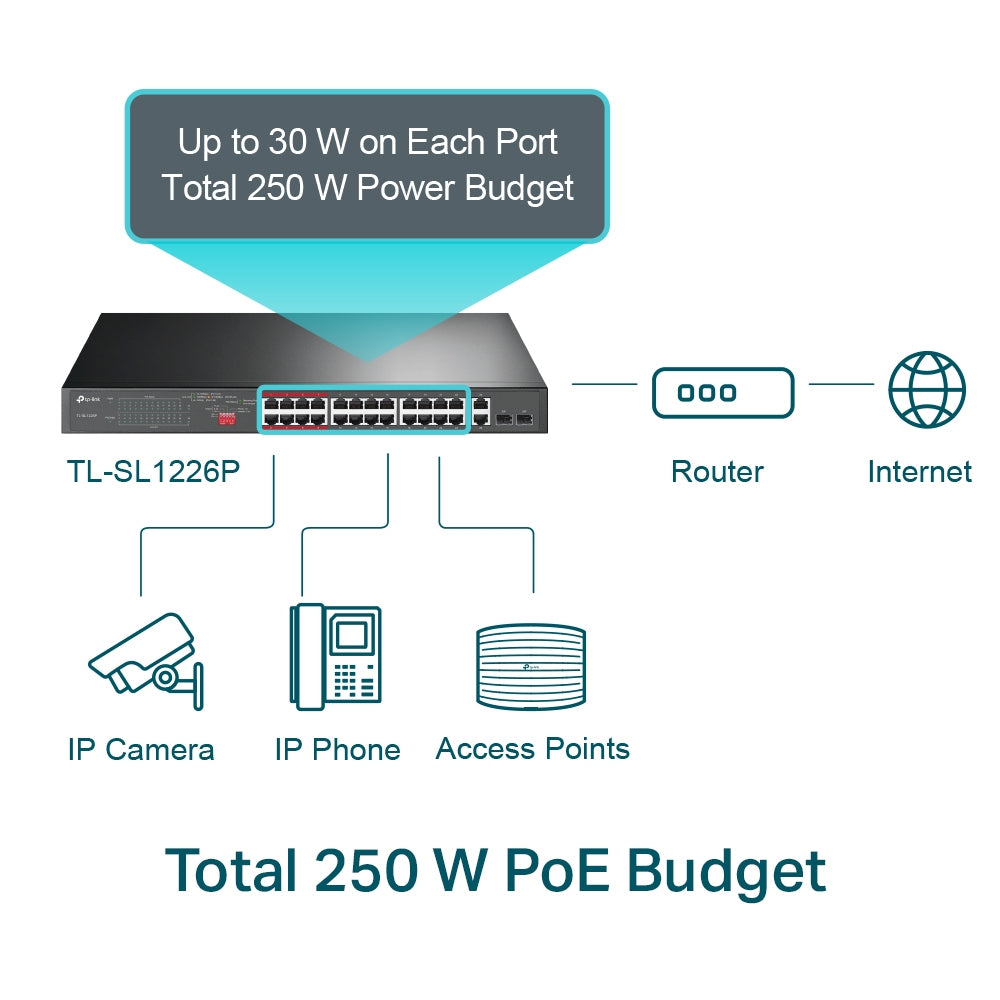

- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports
- Up to 250 m data and power PoE transmission range under Extend Mode, ideal for surveillance system
- Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance

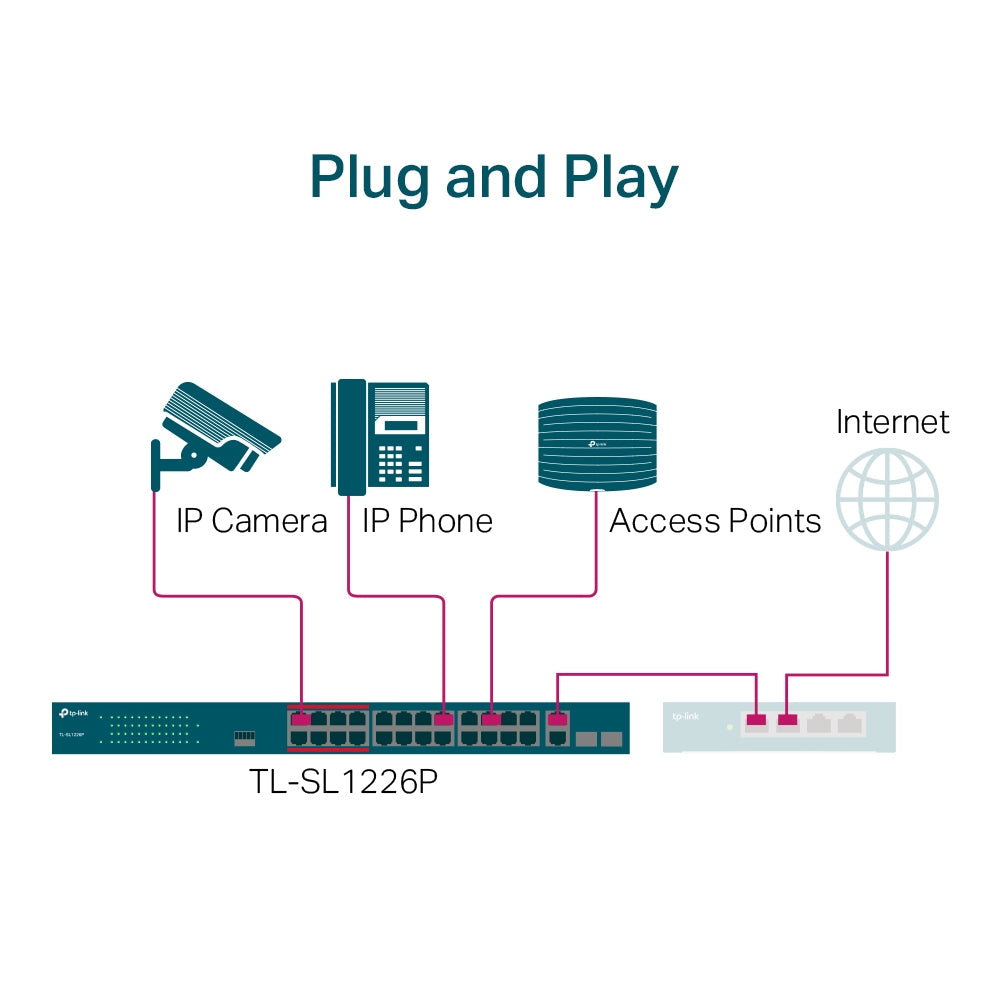

- Plug and play, with no configuration and installation needed
Advanced Features
- Compatible With IEEE 802.3at/af Compliant PDs
- Extend Mode (Up to 250m PoE power supply and data transmission)
- Priority Mode
- Isolation Mode
- PD Detection
- Intelligent Power Supply
- Mac Address Auto-Learning and Auto-Aging
- IEEE802.3x Flow Control
Specification
| Specification | Detail |
|---|---|
| Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget | Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc. |
| Dedicated Design for IP Surveillance—Up to 250 m Transmission | With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas. |
| Dedicated Design for IP Surveillance—Higher Performance and Security | Priority Mode and Isolation Mode make surveillance smoother and safer. |
| Priority Video Quality Guaranteed | Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on. |
| One-Click Traffic Separation for Ports 1-24 | With one click, Isolation Mode easily divides traffic for ports 1–24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission. |
| Smooth HD Video Monitoring | 2 x gigabit RJ45 ports and 2 x combo gigabit SFP ports ensure smooth streaming even when 24x HD IP cameras work simultaneously. |
| Intelligent Power Management to Prevent Power Overload | When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports' power to ensure high-priority ports' power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged. |
| Wide Operating Temperature with Good Heat Dissipation | Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50?) with reliability. |
| Interface | 24 x PoE+ 10/100 Mbps RJ45 Ports 2 x 10/100/1000 Mbps RJ45 Ports 2 x Combo Gigabit SFP Slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Backup Bandwidth | 8.8 Gbps |
| Packet Forwarding Rate | 6.5472 Mpps |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port 1 – Port 24 PoE Power Budget: 250 W |
| Mac Address Table | 8 K |
| Jumbo Frame | 10 KB |
| Switching Capacity | 8.8 Gbps |
| Dimensions ( W x D x H ) | 17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm) |
| Max Power Consumption | 18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected) |
| Max Heat Dissipation | 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected) |
| Transmission Method | Store-And-Forward |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SL1226P Power Cable Installation Guide Two mounting brackets and the fittings |
| Environment | Operating Temperature: 0–50 °C (32–122 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% non-condensing Storage Humidity: 5–90% non-condensing |
-
