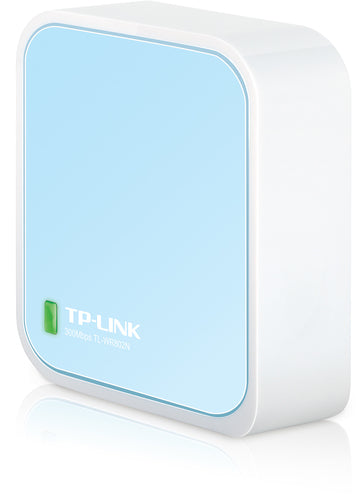

TP-Link TL-WR802N wireless router Fast Ethernet Single-band (2.4 GHz) Blue, White

300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling
Pocket-size – Ideal for home and travel use
Supports Router, Repeater, Client, AP and hotspot operation modes
Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation
Easy installation in minutes

Multiple Operating Modes
To meet the wireless needs of almost any situation you might encounter, the TL-WR802N supports Router, Hotspot, Range Extender, Client and Access Point Modes.

Router Mode
Instantly create a private wireless network and share Internet access with multiple Wi-Fi devices. Ideal for setup in most hotels.

Hotspot Mode
Enjoy wireless Internet access by connecting to an outdoor WISP Access Point.

Range Extender Mode
Extend existing Wi-Fi to improve signal strength and maximize coverage.

Client Mode
Allow devices that require a wired connection to access an existing Wi-Fi network.

Access Point Mode
Create a wireless network for Wi-Fi devices.

Portable and Compact - Suitable for Home and Travel
The TL-WR802N is the smallest wireless router in the world. It is very easy to use and is a perfect choice for travelers, students, and anyone else who lives life on the go.

Flexible Power Supply - Find Power Wherever You Are
The TL-WR802N can be powered using the included power adapter or using a smartphone /USB charger.

Specifications

Standards and Protocols
Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds
N300
2.4 GHz: 300 Mbps (802.11n)

WiFi Range
2 Bedroom Houses
2x Fixed Antennas

WiFi Capacity
Legacy

Working Modes
Router Mode
Access Point Mode
Range Extender Mode
Client Mode
Hotspot Mode (WISP Mode)

Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network
1x 2.4 GHz Guest Network

WiFi Encryption
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)

Processor
Single-Core CPU

Ethernet Ports
1x 10/100 Mbps WAN/LAN Port

Buttons
Reset Button

Power
5 V DC 1 A

Protocols
IPv4
IPv6

Parental Controls
URL Filtering
Time Controls

WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service
QoS by Device

NAT Forwarding
Virtual Server
Port Forwarding
Port Triggering
DMZ
UPnP

IPTV
IGMP Proxy

DHCP
Address Reservation
DHCP Client List
Server

DDNS
NO-IP
Comex
DynDNS

Management Features
Tether App
Webpage

Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP

DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP

App management
Manage and configure device through app
Port: 20001 Protocol: TCP
Port: 20002 Protocol: UDP

Certifications
FCC, CE, RoHS

System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)

WiFi Transmission Power
CE:
<20dBm(2.4GHz)
FCC:
<30dBm

WiFi Reception Sensitivity
270M: -70dBm@10% PER
130M: -75dBm@10% PER
108M: -88dBm@10% PER
54M: -78dBm@10% PER
11M: -100dBm@8% PER
6M: -92dBm@10% PER
1M: -100dBm@8% PER

Dimensions (W x D x H)
2.2 x 2.2 x 0.7 in
(57 x 57 x 18 mm)

Package Content
Wi-Fi Router TL-WR802N
Power Adapter
USB Cable
RJ45 Ethernet Cable
Quick Installation Guide
Resource CD
