TP-Link AX1800 Dual Antennas High Gain Wireless USB Adapter

AX1800, 5 / 2.4 GHz, 802.11a/b/g/n/ac/ax, 84 × 156.3 × 19.2 mm

Key Features

• Lightning-Fast WiFi 6 – Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)†
• Flexible Dual Band – Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands
• Dual High-Gain Antennas – Connect from farther away with high-quality signals and transmissions
• MU-MIMO – Maintain high download and upload speeds even when other devices are eating up your bandwidth△
• OFDMA – Reduce your latency for impeccable conferencing and gameplay on crowded networks△
• SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0
• Refined Security – Protect your personal data with the latest WPA3 encryption

Description

Level Up Your PC with WiFi 6
High-Gain Wireless USB Adapter

Your Upgrade to WiFi 6
Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.

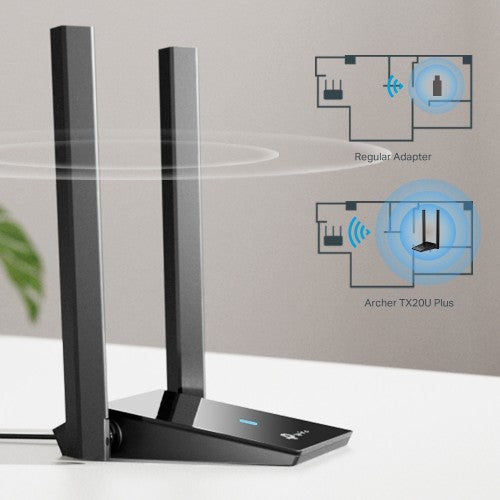

Coverage Powered by Beamforming
High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.

Escape the Congestion with MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.

Lower Your Ping with OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.

A Perfect Match for Faster Speeds
USB 3.0 ensures there’s no bottleneck between TX20U Plus and your PC.

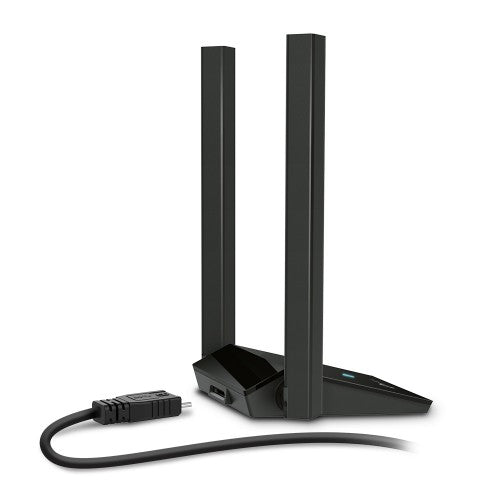

Adjustable, Multi-Directional Antennas
Rotate and adjust the antennas 180° for the best reception from any location.

Simple Design and Placement

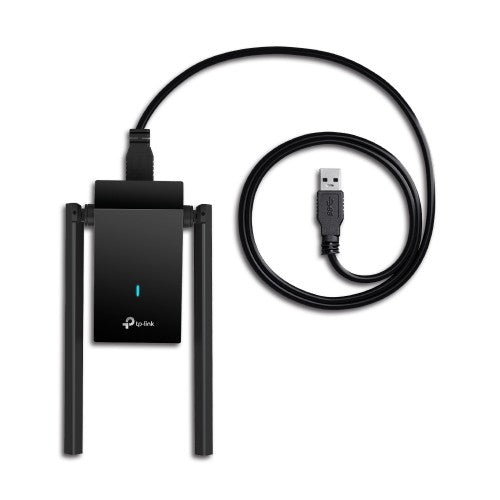

Find the best spot for network reception with TX20U Plus’s desktop-friendly design and 1-meter USB cable.

Specifications

Ports & interfaces
Internal	No
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN (RJ-45) ports	0
Interface	WLAN
Host interface	USB
Connectivity technology	Wireless
Bandwidth
Maximum data transfer rate	1800 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
WLAN data transfer rates supported	11,54,300,400,574,867,1200 Mbit/s
Antenna
Antennas quantity	2
Antenna type	External
Technical details
Product colour	Black
Sustainability compliance	Yes
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
WLAN data transfer rates supported	11,54,300,400,574,867,1200 Mbit/s
Maximum data transfer rate	1800 Mbit/s
MU-MIMO	Yes
Design
Product colour	Black
Internal	No
LED indicators	Status
Antenna type	External
Transmitting power (CE)	16 dBm
Transmitting power (FCC)	19 dBm
Operating modes	Infrastructure mode
Component for	PC
Antennas quantity	2
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Indication
LED indicators	Status
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	84 mm
Depth	156.3 mm
Height	19.2 mm
Package width	201.5 mm
Package depth	153 mm
Package height	46.5 mm
Package weight	230 g
Security
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Packaging data
Package width	201.5 mm
Package depth	153 mm
Package height	46.5 mm
Package weight	230 g
Quick installation guide	Yes
Cables included	USB
Packaging content
Quick installation guide	Yes
Cables included	USB
Performance
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Other features
Antennas quantity	2
Antenna type	External
