TP-LINK

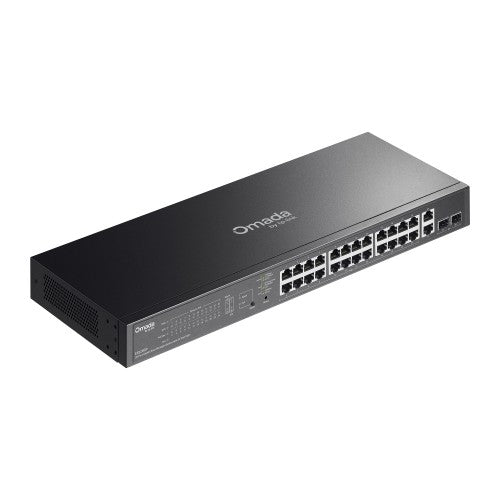

TP-Link ES228GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

SKU ES228GP
£179.87
£179.87
Excluding taxes
L2, 24xPoE+, 8K MAC, 56 Gbit/s, 100-240V, 50/60Hz

Description

Omada Central Essentials — A Free and Easy Cloud-Based Network Management

Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Multiple Application Scenarios

Surveillance

Works with IP Cameras

Wi-Fi Coverage

Works with Access Points

Wired Connections

Works with Non-PoE Devices such as PCs and Printers

Specifications

Management features
Switch type Managed
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Ports & interfaces
SFP module slots quantity 2
Basic switching RJ-45 Ethernet ports quantity 26
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
VLAN support Yes
Port mirroring Yes
Link aggregation Yes
Flow control support Yes
Broadcast storm control Yes
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping Yes
Data transmission
Jumbo frames 15000
Packet buffer memory 4 MB
MAC address table 8000 entries
Switching capacity 56 Gbit/s
Store-and-forward Yes
Number of queues 8
Jumbo frames support Yes
Forwarding rate 41.67 Mpps
Security
Loop protection Yes
IGMP snooping Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
DHCP features DHCP client
Design
Product colour Black
Rack mounting Yes
Number of fans 2 fan(s)
Power
Power protection features Surge protection
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 4 A
Power source AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 250 W
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE+
Power protection features Surge protection
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) -5 - 45 °C
Operating relative humidity (H-H) 10 - 90%
Virtual LAN features
VLAN support Yes
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width 440 mm
Depth 180 mm
Height 44 mm
Packaging content
Manual Yes
Cables included AC
Performance
Packet buffer memory 4 MB
Technical details
Product colour Black
Rack mounting Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory 4 MB
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Packaging data
Manual Yes
Cables included AC
