TP-LINK

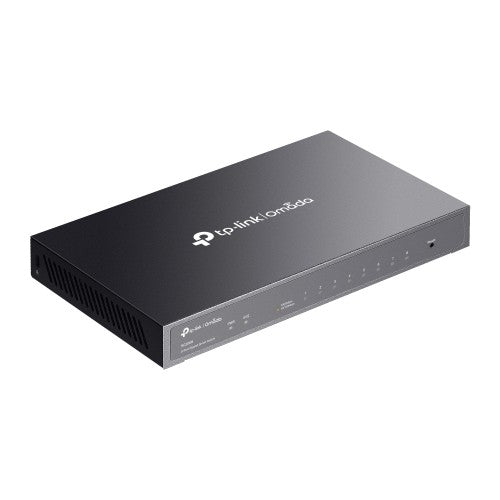

TP-Link Omada 8-Port Gigabit Smart Switch

SKU SG2008
£51.22
£51.22
Excluding taxes
8× 10/100/1000 Mbps RJ45, 16 Gbps, 8K MAC, 9 KB Jumbo, 209×126×26 mm

Key Features

  • 8× Gigabit RJ45 ports (1 PD port)
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Fanless design for silent operation

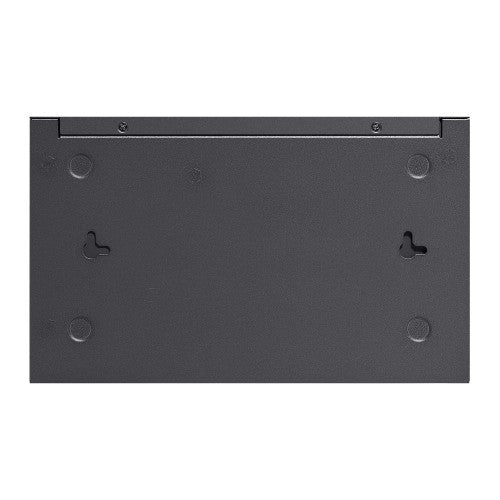

  • Durable metal casing and desktop/wall mounting design

Description

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features
ARP inspection Yes
Switch type Managed
Web-based management Yes
System event log Yes
Quality of Service (QoS) support Yes
Multicast support Yes
Switch layer L2/L2+
Configuring Location Settings (CLI) Yes
Cloud-managed Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Power connector DC-in jack
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Network
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN support Yes
Spanning tree protocol Yes
Rate limiting Yes
Port mirroring Yes
Number of VLANs 4000
Link aggregation Yes
Flow control support Yes
Broadcast storm control Yes
10G support No
Virtual LAN features MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP snooping Yes
GARP VLAN Registration Protocol (GVRP) Yes
Data transmission
Jumbo frames 9000
Number of static routes 32
Number of IP interfaces 16
Packet buffer memory 4.1 MB
MAC address table 8000 entries
Switching capacity 16 Gbit/s
Jumbo frames support Yes
Static route Yes
Forwarding rate 11.9 Mpps
Number of VLANs 4000
Security
IP-MAC-Port binding Yes
BPDU filtering/protection Yes
SSH/SSL support Yes
Security algorithms SSH, SSH-2, SSL/TLS
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support Yes
Protocols
Management protocols SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP) Yes
Design
Wall mountable Yes
Product colour Black
LED indicators Yes
Certification CE, FCC, RoHS
Performance
Fanless Yes
Packet buffer memory 4.1 MB
Power
Power consumption (max) 6.4 W
Power supply included Yes
Input voltage 12 V
Input current 1 A
Power source DC
Power connector DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 21.84 BTU/h
Virtual LAN features
VLAN support Yes
Number of VLANs 4000
Virtual LAN features MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width 209 mm
Depth 126 mm
Height 26 mm
Packaging content
User guide Yes
Cables included AC
Technical details
Product colour Black
Memory
Packet buffer memory 4.1 MB
Certificates
Certification CE, FCC, RoHS
Indication
LED indicators Yes
Mobile network
GARP VLAN Registration Protocol (GVRP) Yes
Packaging data
User guide Yes
Cables included AC
Other features
Input voltage 12 V
