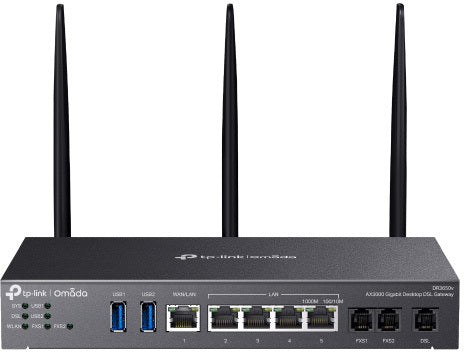

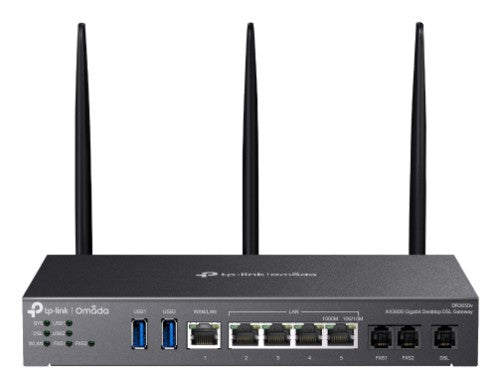

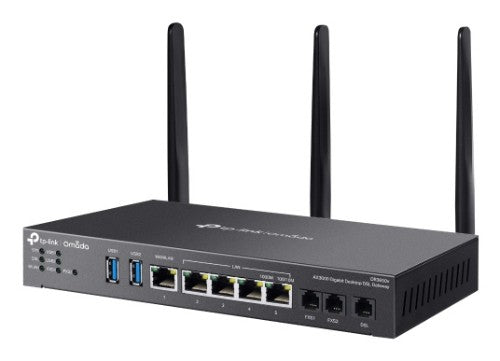

TP-Link Omada AX3000 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

12VDC / 3.3A Power Adapter, 2.4 GHz (574 Mbps), 5 GHz (2402 Mbps), 256 MB NAND, 512 MB DDR4, 3 × RJ11 Ports (2 × FXS, 1 × DSL), 5 × RJ45 Gigabit Ports (1 × WAN/LAN Port, 4 × LAN Ports), 2 × USB 3.0 Ports, 226 × 131 × 35 mm

Key Features

• VDSL2 35b: Supports 350Mbps DSL Access*2
• VDSL2/ADSL2+/ADSL2/ADSL Compatibility
• Centralized Cloud Management
• IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
• Load Balancing Between DSL and Ethernet WAN
• Omada Mesh Technology*3

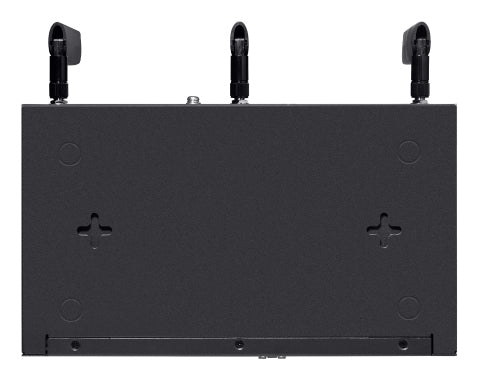

• Desktop/Wall Mounting

Description

Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.

Versatile Connectivity
DR3650v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.

Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.

High-Security and High-Performance VPN
IPSec/PPTP/L2TP/GRE/WireGuard/ Open VPN/ SSL VPN easily builds secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.

Specifications

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
DSL features
DSL WAN	Yes
ADSL	Yes
ADSL2	Yes
ADSL2+	Yes
VDSL2	Yes
Mobile network
SIM card slot	No
3G/4G USB modem compatibility	Yes
Network
Network address translation (NAT)	Yes
Guest access	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
VPN support	IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Port triggering	Yes
Built-in FTP server	Yes
Static route	Yes
Policy-based routing	Yes
Load balancing system	Yes
Dynamic DNS (DDNS)	Yes
Protocols
DMZ support	Yes
Voice codecs	G.711a, G.711ulaw, G.722, G.726, G.729ab
Universal Plug and Play (UPnP)	Yes
DHCP server	Yes
DHCP client	Yes
Management features
Universal Plug and Play (UPnP)	Yes
Web-based management	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
MU-MIMO technology	Yes
Security
VPN support	IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL
URL filtering	Yes
System event log	Yes
Security algorithms	WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Network address translation (NAT)	Yes
NAT functionality	One-to-One NAT Multi-Net NAT Virtual Server Port Triggering1 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP
Guest access	Yes
DMZ support	Yes
Access Control List (ACL)	Yes
Performance
Voice codecs	G.711a, G.711ulaw, G.722, G.726, G.729ab
Mean time between failures (MTBF)	671034 h
Internal memory	512 MB
WAN connection
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-45
Wireless LAN features
WLAN data transfer rate (max)	2402 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ports & interfaces
USB port	Yes
RJ-11 ports quantity	3
Ethernet LAN (RJ-45) ports	4

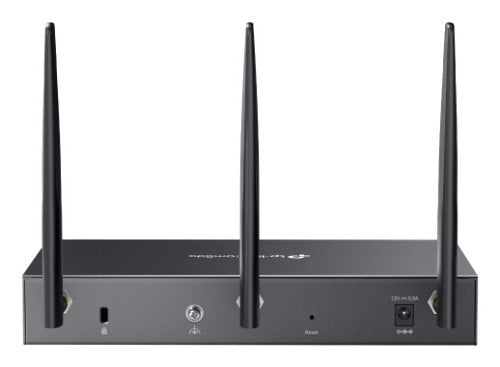

DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Design
Product type	Tabletop router
Wall mountable	Yes
LED indicators	DSL, LAN, USB, WLAN
Product colour	Black
Indication light	Yes
Packaging content
Cables included	LAN (RJ-45), Phone
AC adapter included	Yes
Antenna included	Yes
Other features
Internal memory	512 MB
Antenna
Antenna design	External
Detachable antenna(s)	Yes
Antennas quantity	3
Antenna gain level (max)	4.5 dBi
Features
Mean time between failures (MTBF)	671034 h
Internal memory	512 MB
Internal memory type	DDR4
Power
Power source type	AC
Output voltage	12 V
Output current	3.3 A
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	226 mm
Height	35 mm
Depth	131.2 mm
Packaging data
Cables included	LAN (RJ-45), Phone
AC adapter included	Yes
Antenna included	Yes
