TP-LINK

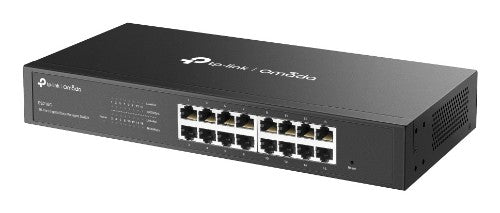

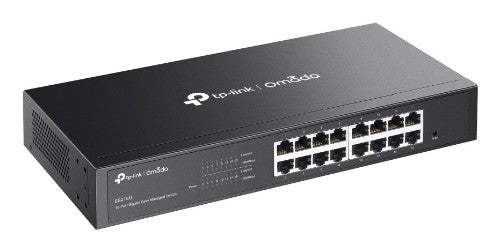

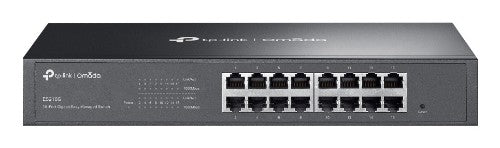

TP-Link Omada ES216G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

SKU ES216G
£81.98
£81.98
Excluding taxes
Omada 16-Port Gigabit Easy Managed Switch

Key Features

  • 16× 10/100/1000Mbps RJ45 ports
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
  • Automatic Loop Prevention and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/rack mounting design

Description

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Specifications

Management features
Switch type Managed
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Unified static configuration Yes
Cloud-managed Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 16
Power connector AC-in jack
Network
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
VLAN support Yes
Port mirroring Yes
Number of VLANs 32
Link aggregation Yes
Flow control support Yes
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
Fast leave Yes
Zero Touch Provisioning (ZTP) Yes
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping Yes
Data transmission
Jumbo frames 15000
Packet buffer memory 4 MB
MAC address table 8000 entries
Switching capacity 32 Gbit/s
Store-and-forward Yes
Jumbo frames support Yes
Forwarding rate 23.8 Mpps
Number of VLANs 32
Security
Loop protection Yes
IGMP snooping Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
DHCP features DHCP client
Design
Product colour Black
LED indicators Yes
Rack mounting Yes
Performance
Mean time between failures (MTBF) 2131140 h
Flash memory 64 MB
Firmware upgradeable Yes
Fanless Yes
Packet buffer memory 4 MB
Auto-negotiation Yes
Power
Power consumption (max) 8.4 W
Power supply included Yes
Surge protection voltage 6 kV
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Surge protection Yes
Power source AC
Power connector AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) -5 - 50 °C
Operating relative humidity (H-H) 10 - 90%
Heat dissipation 28.52 BTU/h
Virtual LAN features
VLAN support Yes
Number of VLANs 32
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width 294 mm
Depth 140 mm
Height 44 mm
Packaging content
Rack mount kit Yes
User guide Yes
Cables included AC
Packaging data
Package type Box
Rack mount kit Yes
User guide Yes
Cables included AC
Technical details
Product colour Black
Mean time between failures (MTBF) 2131140 h
Firmware upgradeable Yes
Rack mounting Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory 4 MB
Flash memory 64 MB
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators Yes
