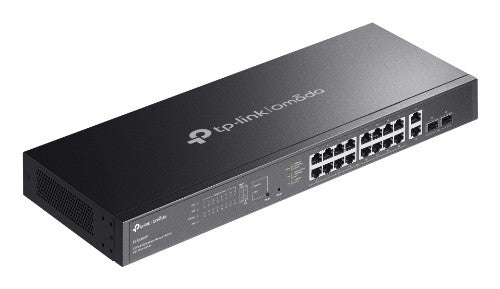

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
Key Features
- 16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
- 2× Gigabit RJ45 port, 2× Gigabit SFP port
- 250W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Description
Omada Cloud Essentials - A Free and Easy Cloud-Based Network MnagementOmada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Unified static configuration | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 18 |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Port mirroring | Yes |
| Number of VLANs | 32 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| MAC address table | 8000 entries |
| Switching capacity | 40 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 29.76 Mpps |
| Number of VLANs | 32 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| DHCP features | DHCP client |
| Design | |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Performance | |
| Noise level | 41.5 dB |
| Mean time between failures (MTBF) | 310550.7 h |
| Flash memory | 64 MB |
| Firmware upgradeable | Yes |
| Packet buffer memory | 4 MB |
| Stackable | No |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 289.7 W |
| Power supply included | Yes |
| Surge protection voltage | 6 kV |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Surge protection | Yes |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 250 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 984.88 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 32 |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging content | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Packaging data | |
| Package type | Box |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Noise level | 41.5 dB |
| Mean time between failures (MTBF) | 310550.7 h |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Memory | |
| Packet buffer memory | 4 MB |
| Flash memory | 64 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Indication | |
| LED indicators | Yes |
-
