TP-LINK

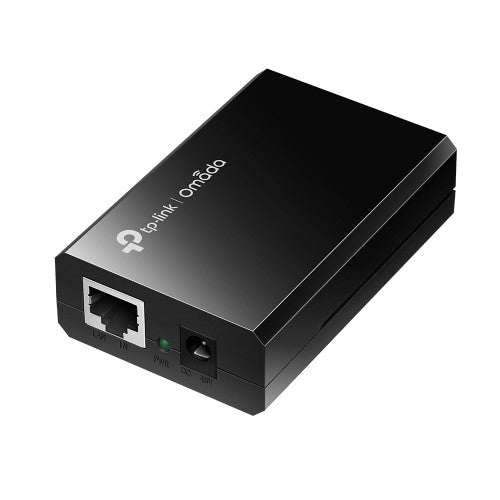

TP-Link Omada IEEE 802.3af PoE Injector

SKU POE150S
£11.70
£11.70
Excluding taxes
IEEE 802.3af PoE Injector

Key Features

  • IEEE 802.3af compliant

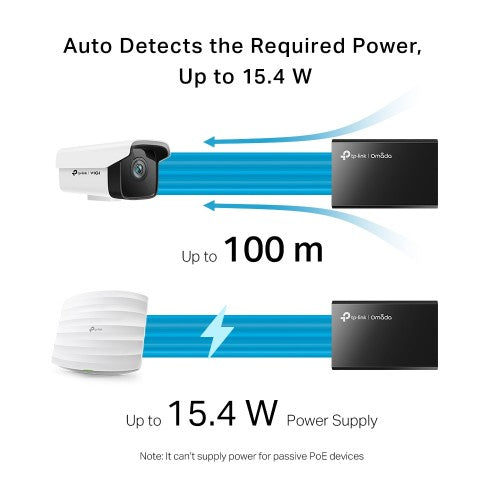

  • Auto-determine the necessary power requirements
  • Gigabit speed support
  • Plug-and-Play, no configuration required

Description

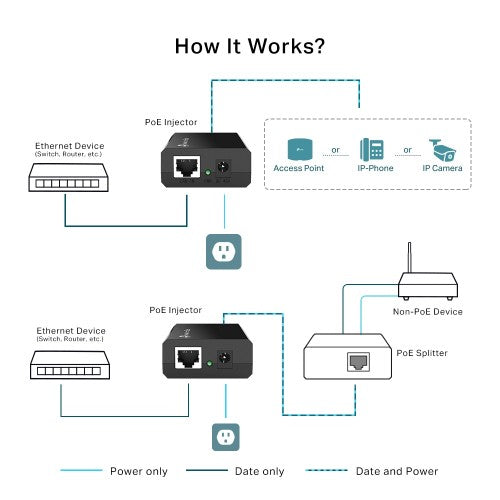

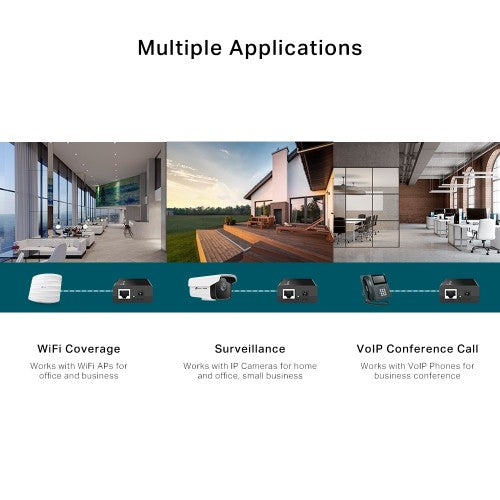

The PoE Injector POE150S (TL-POE150S) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Specifications

Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Cabling technology 10/100/1000
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
Features
Plug and Play Yes
Maximum operating distance 100 m
Product colour Black
LED indicators Yes
Auto-negotiation Yes
Auto-sensing Yes
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u

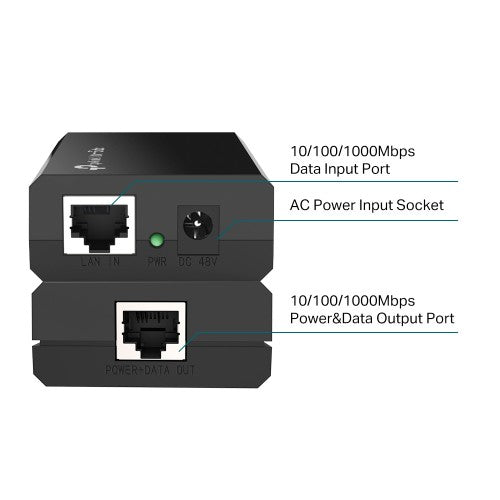

Ports & interfaces
DC-in jack Yes
RJ-45 input ports 1
RJ-45 output ports 1
Power
Input voltage 48 V
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 80.8 mm
Depth 54 mm
Height 24 mm
Package weight 350 g
Package depth 198 mm
Package width 65 mm
Package height 65 mm
Packaging content
Quick installation guide Yes
AC adapter included Yes
Number of products included 1 pc(s)
Packaging data
Package weight 350 g
Package depth 198 mm
Package width 65 mm
Package height 65 mm
Technical details
Number of products included 1 pc(s)
Package width 65 mm
Package height 65 mm
Power over Ethernet (PoE) Yes
Input voltage 48 V
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators Yes
