TP-LINK

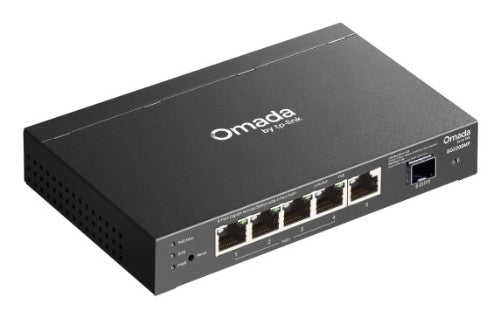

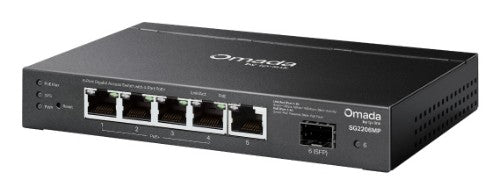

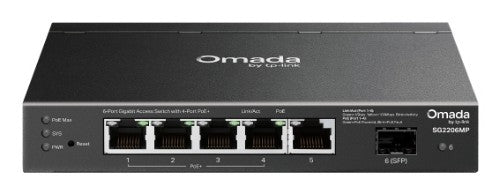

TP-Link Omada SG2206MP network switch L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

SKU SG2206MP
£106.00
£61.69
£106.00
£61.69
Excluding taxes
RJ-45, SFP, PoE+, 63W, 30W, 12Gbps

Key Features

  • 5× Gigabit RJ45 ports (4× PoE+) and 1× Gigabit SFP slot
  • 63W total PoE budget with up to 30W for each PoE+ port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping

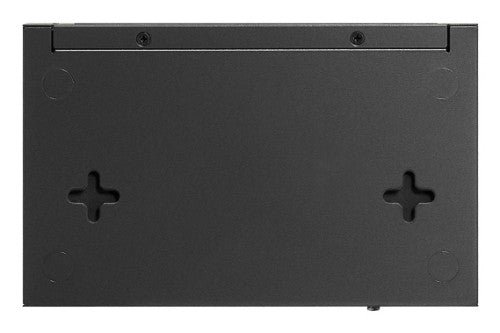

  • Durable metal casing and desktop/wall mounting design

Description

Multiple Application Scenarios

Wi-Fi Coverage
Works with Access Points

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Specifications

Management features
Switch layer L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 1
Gigabit Ethernet (copper) ports quantity 5
Network
Active link detection Yes
VLAN support Yes
Spanning tree protocol Yes
Routing entries 230
Rate limiting Yes
Port mirroring Yes
Link aggregation Yes
IGMP snooping Yes
Data transmission
Jumbo frames 9
Packet buffer memory 4.1 MB
MAC address table 8000 entries
Switching capacity 12 Gbit/s
Jumbo frames support Yes
Security
Loop protection Yes
IGMP snooping Yes
DHCP features DHCP relay, DHCP server
Design
Stackable Yes
Rack mounting Yes
Power
Power consumption (max) 73.7 W
Power supply included Yes
Number of power supply units 1
Input current 1.31 A
DC input voltage 53.5 V
Power source DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 4
Total Power over Ethernet (PoE) budget 63 W
Power over Ethernet (PoE) Yes
Virtual LAN features
VLAN support Yes
Weight & dimensions
Width 158 mm
Depth 100.7 mm
Height 25.4 mm
Performance
Packet buffer memory 4.1 MB
Stackable Yes
Technical details
Stackable Yes
Rack mounting Yes
Memory
Packet buffer memory 4.1 MB
