TP-LINK

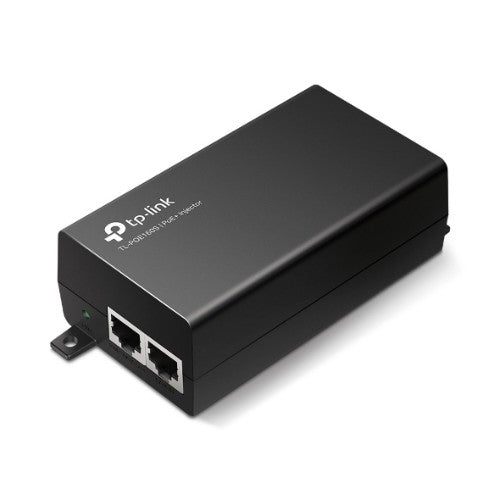

TP-Link PoE+ Injector

SKU TL-POE160S
£12.71
£12.71
Excluding taxes
PoE+ Injector, Catx, 100m, 30w

Key Features

  • 2 Gigabit ports ensure faster transmission
  • Complies with IEEE802.3af/at standards, supplies up to 30 W
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Automatically determines and supplies the exact power to meet the device's need
  • Wall-mounting and desktop design accommodates most installation scenarios
  • Plug & Play installation, requires no configuration
  • Integrated power supply

Description

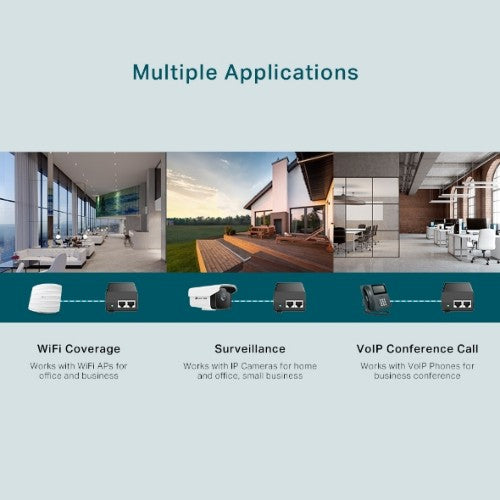

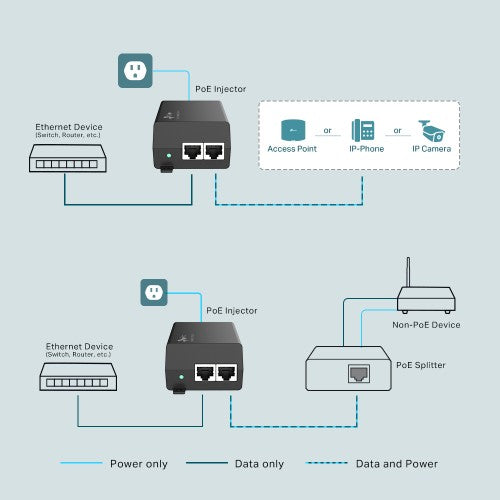

The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Specifications

Network
Networking standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Cabling technology 10/100/1000
Cable types supported Cat3, Cat4, Cat5, Cat5e
Features
Wall mountable Yes
Plug and Play Yes
Maximum operating distance 100 m
Product colour Black
LED indicators Power
Networking standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Package type Box
Certification FCC, CE, RoHS
Ports & interfaces

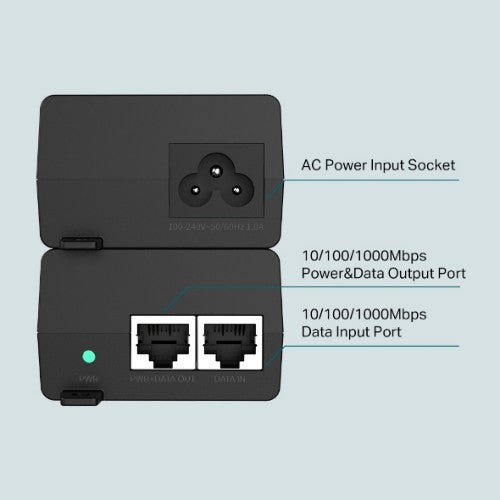

Ethernet LAN (RJ-45) ports 2
RJ-45 input ports 1
RJ-45 output ports 1
Power
Output power 30 W
AC adapter input voltage 100 - 240 V
AC adapter frequency 50/60 Hz
Certificates
Certification FCC, CE, RoHS
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 125 mm
Depth 59.4 mm
Height 36.8 mm
Package weight 460 g
Package depth 230 mm
Package width 170 mm
Package height 80 mm
Packaging content
Power cord included Yes
Quick installation guide Yes
Number of products included 1 pc(s)
Wall mounting kit Yes

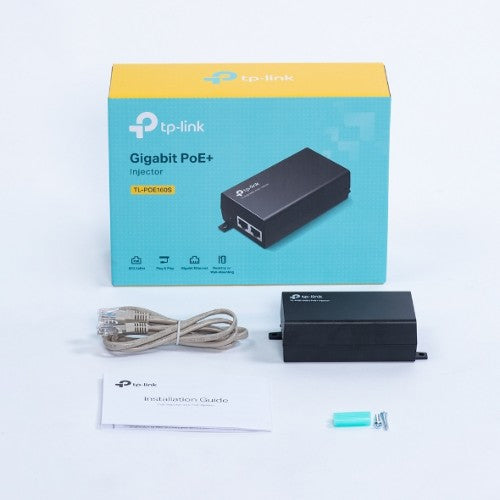

Packaging content TL-POE160S, power cord, RJ45 cable, installation guide, wall-mounting kits
Package type Box
Packaging data
Package weight 460 g
Package type Box
Package depth 230 mm
Package width 170 mm
Package height 80 mm
Technical details
Number of products included 1 pc(s)
Package width 170 mm
Package height 80 mm
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Harmonized System (HS) code 85044095
Indication
LED indicators Power
Logistics data
Harmonized System (HS) code 85044095
