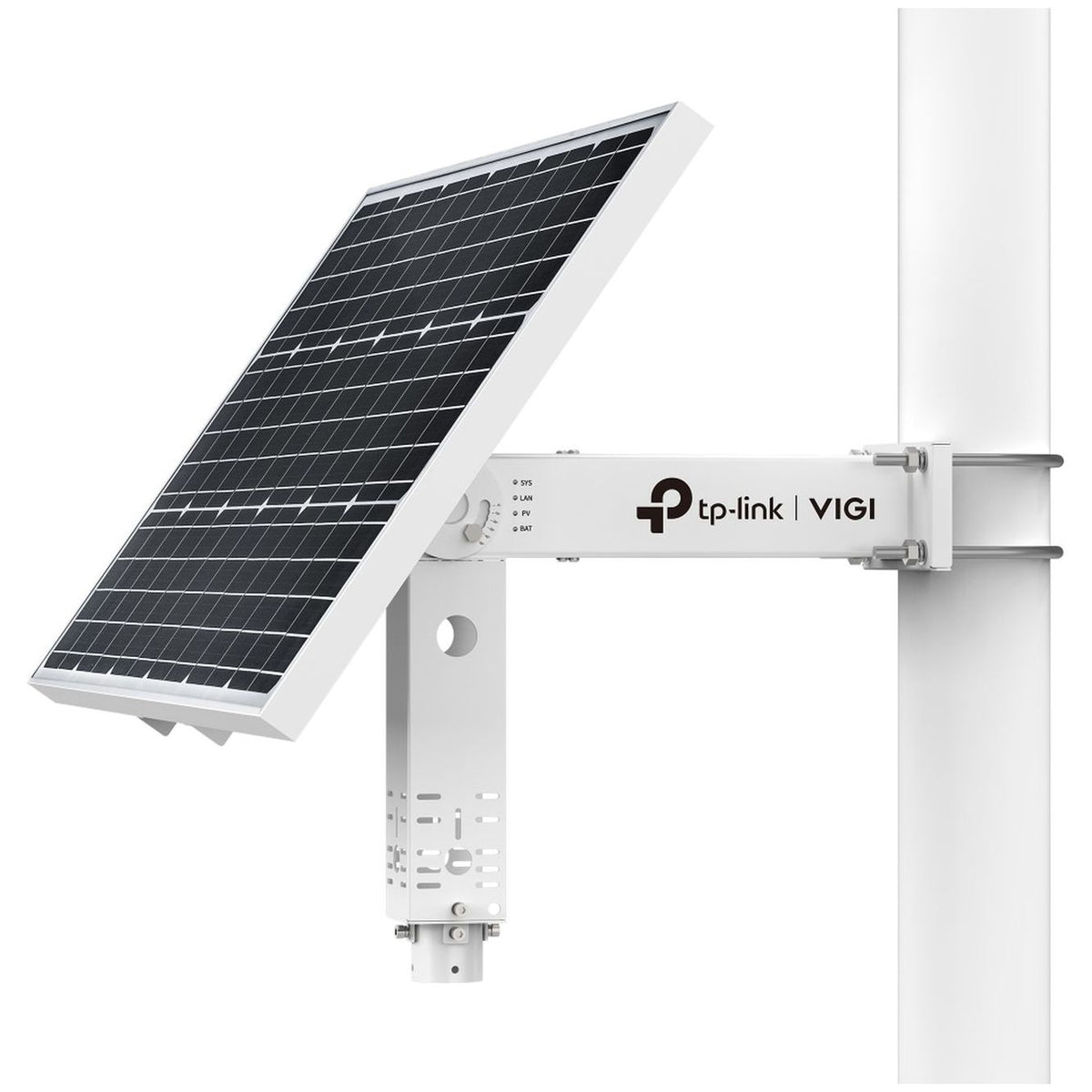

The TP-Link VIGI SP9030 is an intelligent solar power supply system for outdoor network equipment. It suits installers building camera or wireless network coverage in locations where mains wiring is difficult, such as remote monitoring sites.

A 90W photovoltaic panel charges the integrated 31.2Ah lithium battery, while an MPPT controller helps improve charging efficiency. The modular system offers six manual panel angle settings, from 5° to 55°, to help position it for the installation. Built-in auxiliary heating supports battery operation in cold conditions, and IP66 protection is designed for outdoor exposure to dust and water. Through the VIGI app, users can check power statistics, view load status, update firmware and reboot the system remotely.

Key features

• 90W photovoltaic panel with 18V output
• 31.2Ah lithium battery rated at 10.8V
• Three DC power outputs for connected equipment
• MPPT charging controller to optimise solar charging
• Manually adjustable panel angles at 5° increments from 5° to 55°
• Intelligent auxiliary battery heating for operation in a wide temperature range
• Remote monitoring and management through the VIGI app
• IP66 weather protection for outdoor installation

Compatibility

The three 5.5mm DC output ports provide 9V–12.6V at 2A on outputs 1 and 2, and 12V at 2A on output 3. The RJ45 interface is for network connectivity and does not supply PoE power. Check that your camera or network device accepts the voltage and connector of the selected DC output before installation. The product is a power system; cameras and EAP equipment shown in example setups are not included. Good to know: a compatible VIGI app is required for app based management, and the SP9030 does not power other devices over Ethernet.

In the box

• TP-Link VIGI SP9030
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Specifications

For sites without convenient mains power, the SP9030 combines solar generation, battery storage and remote status checks in one outdoor system, with output options for compatible surveillance and network equipment.
