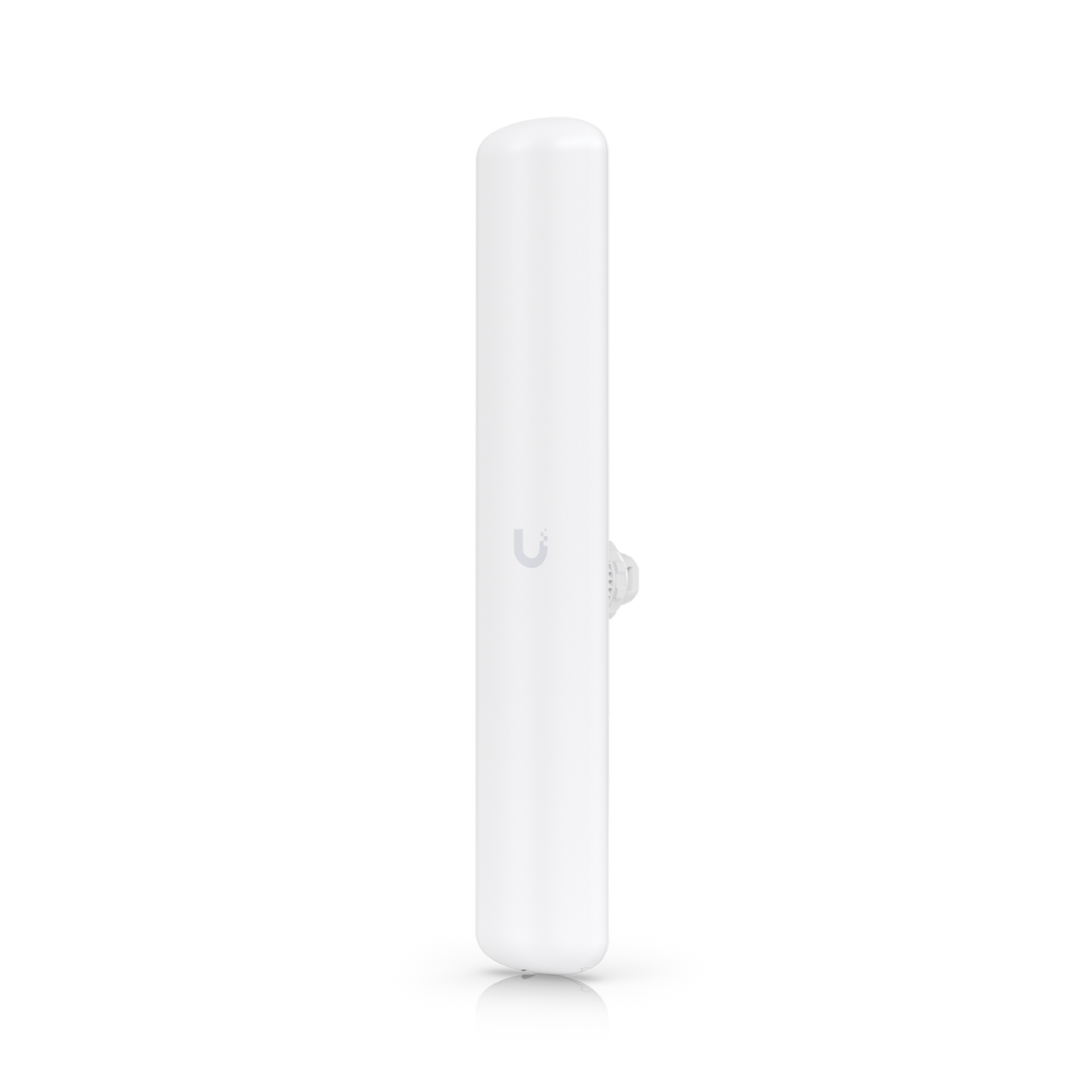

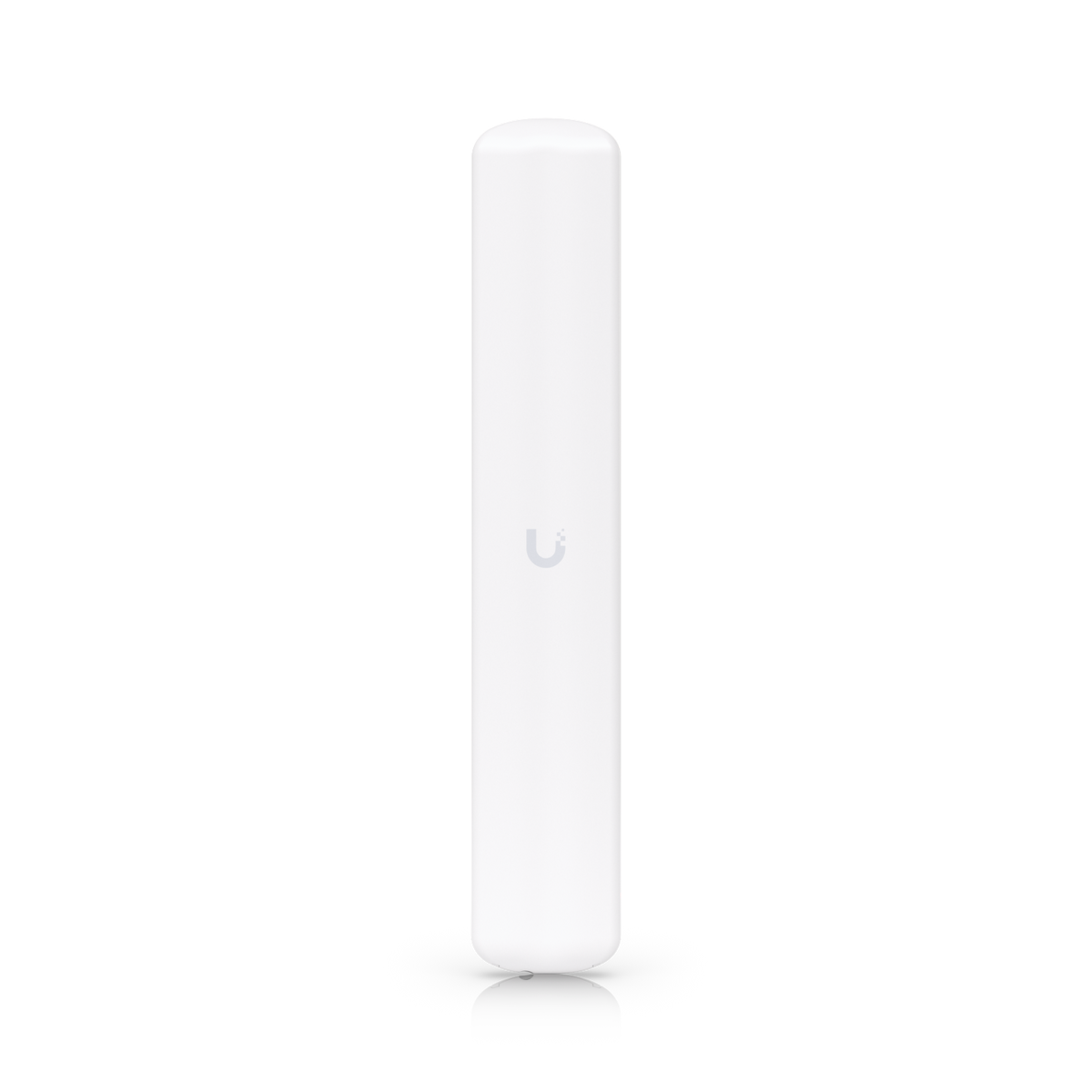

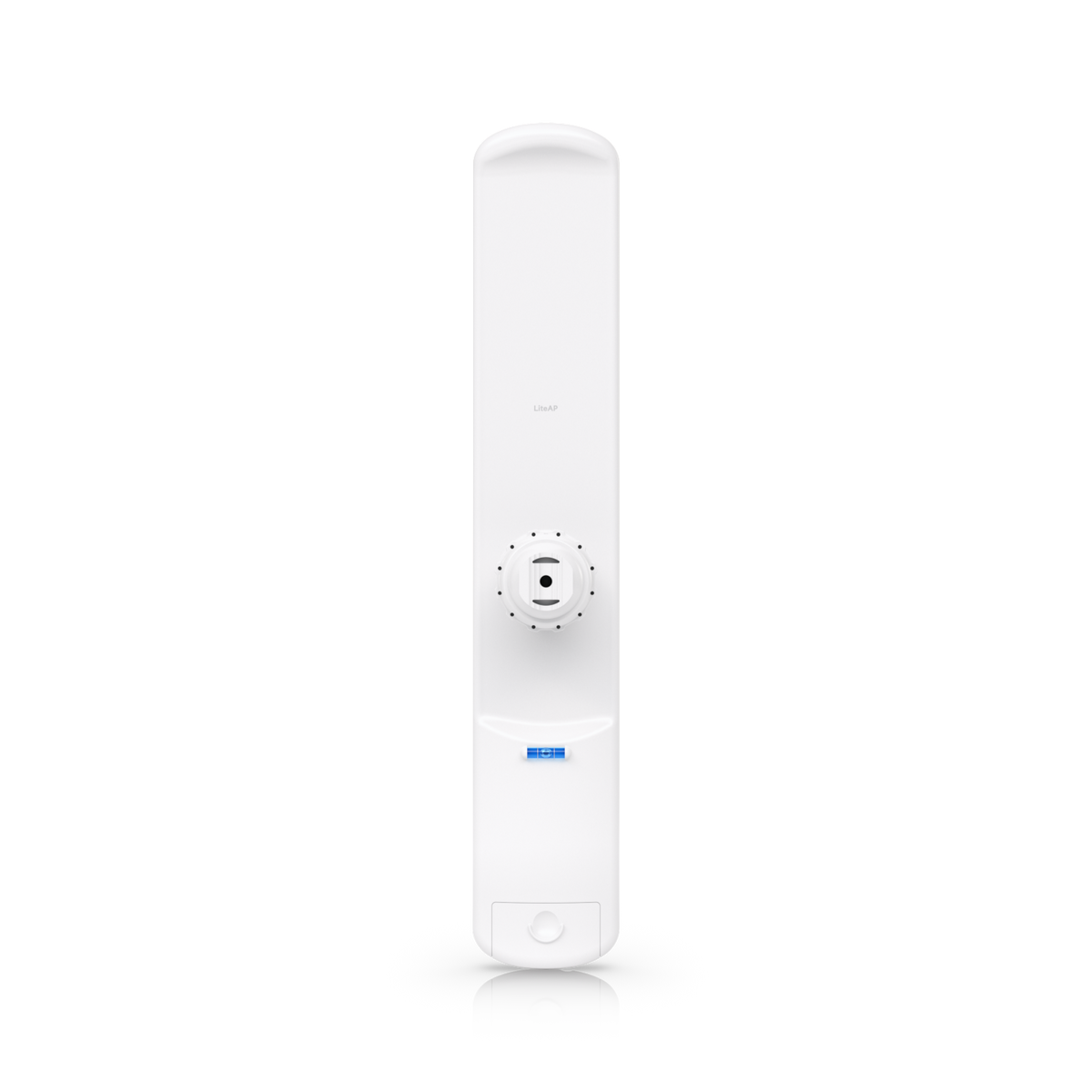

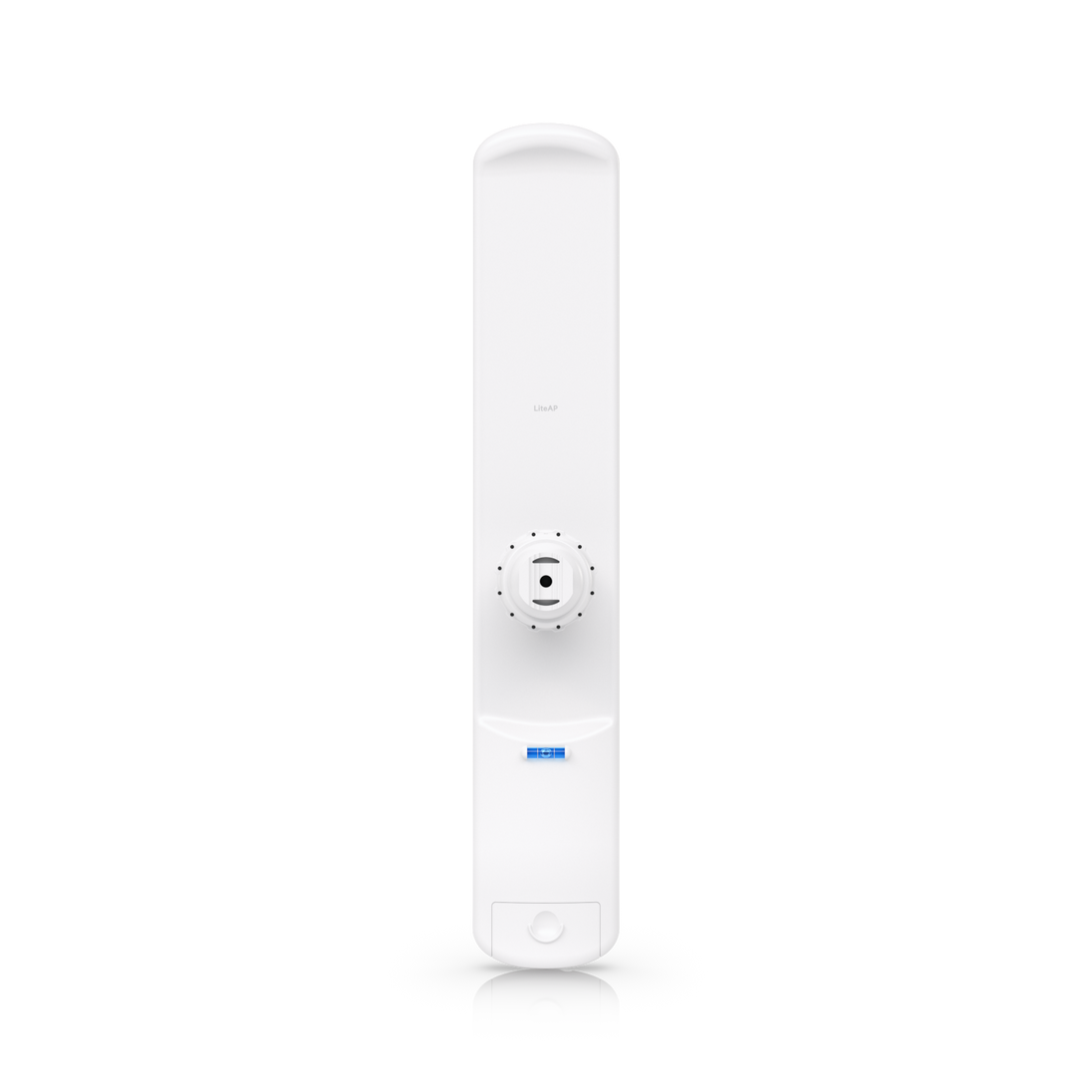

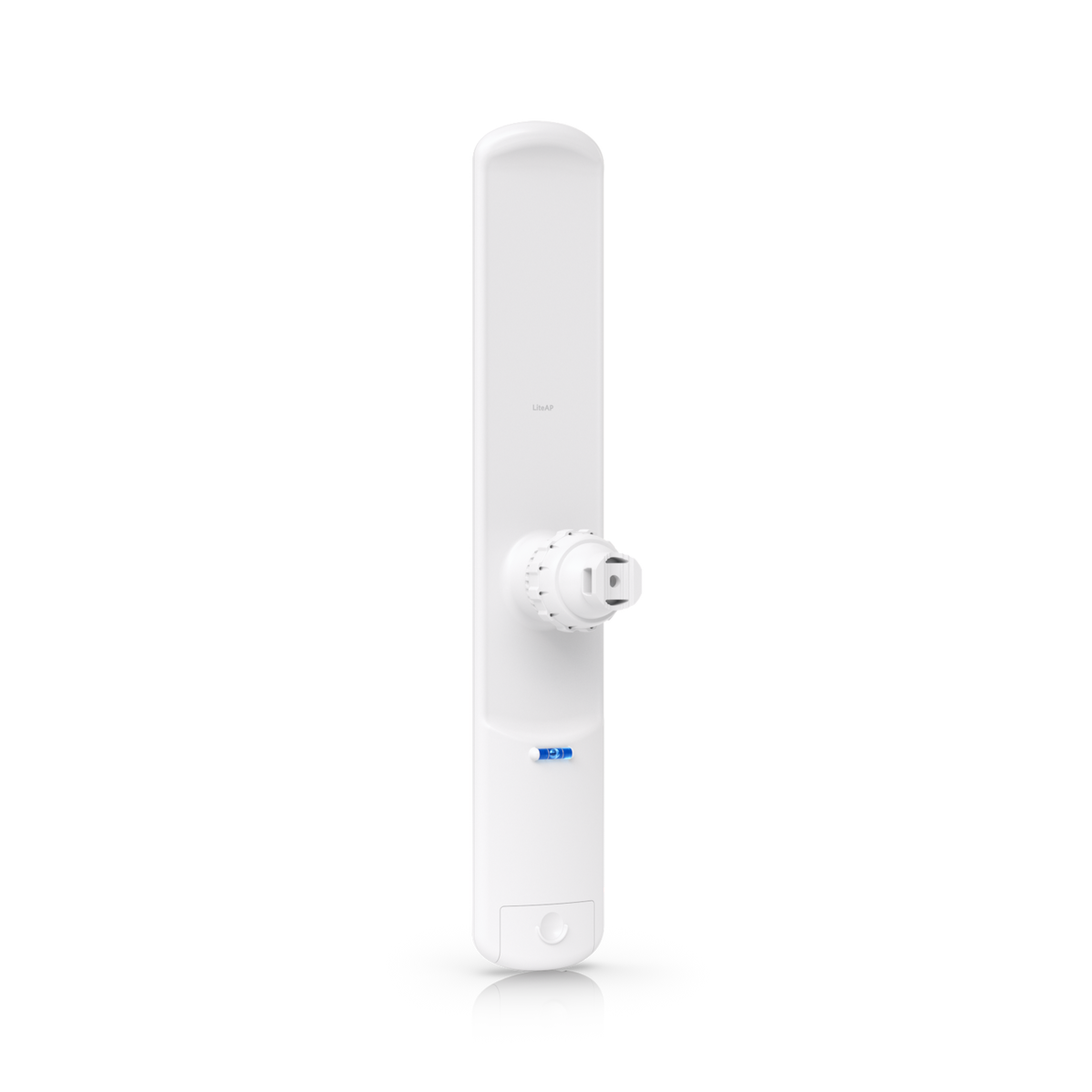

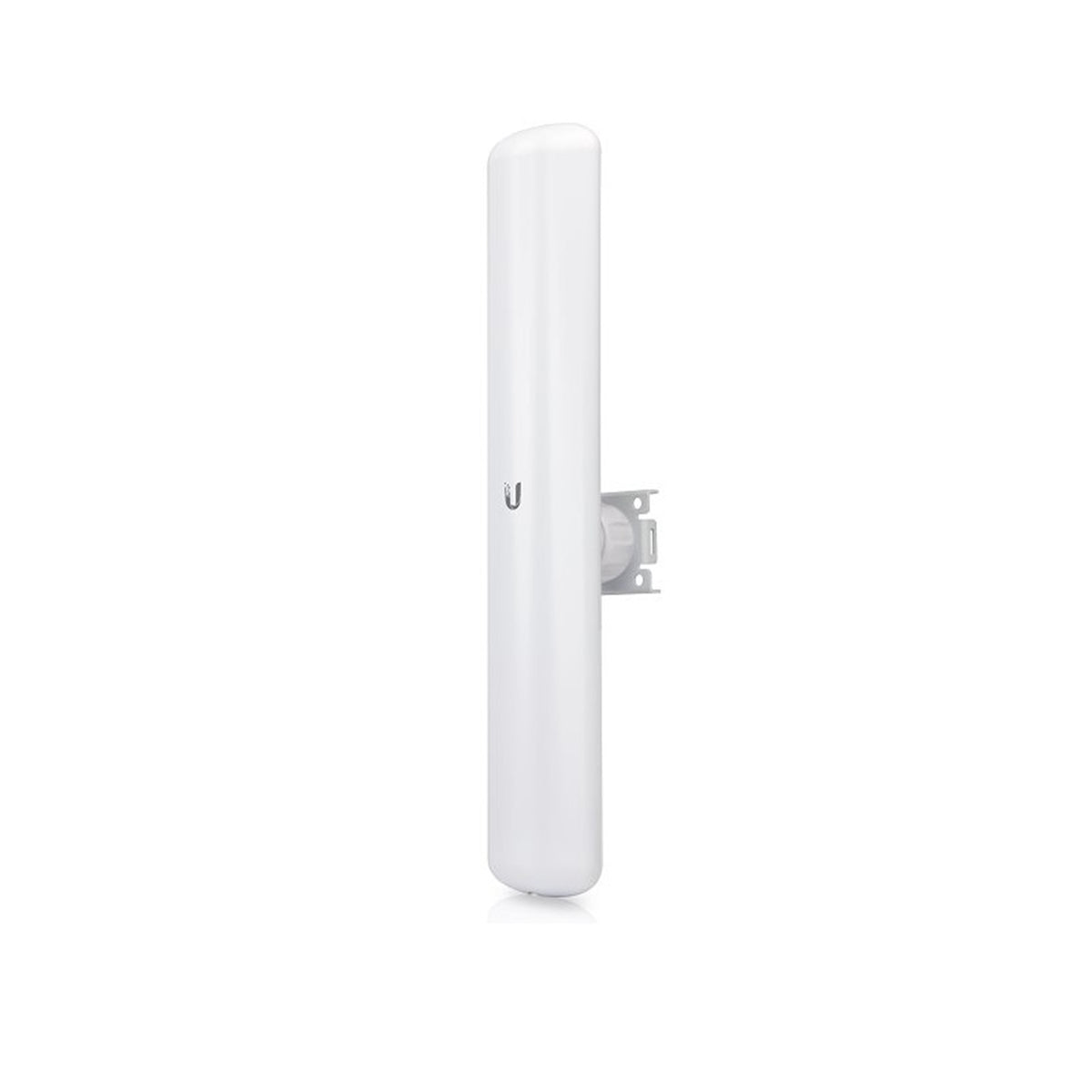

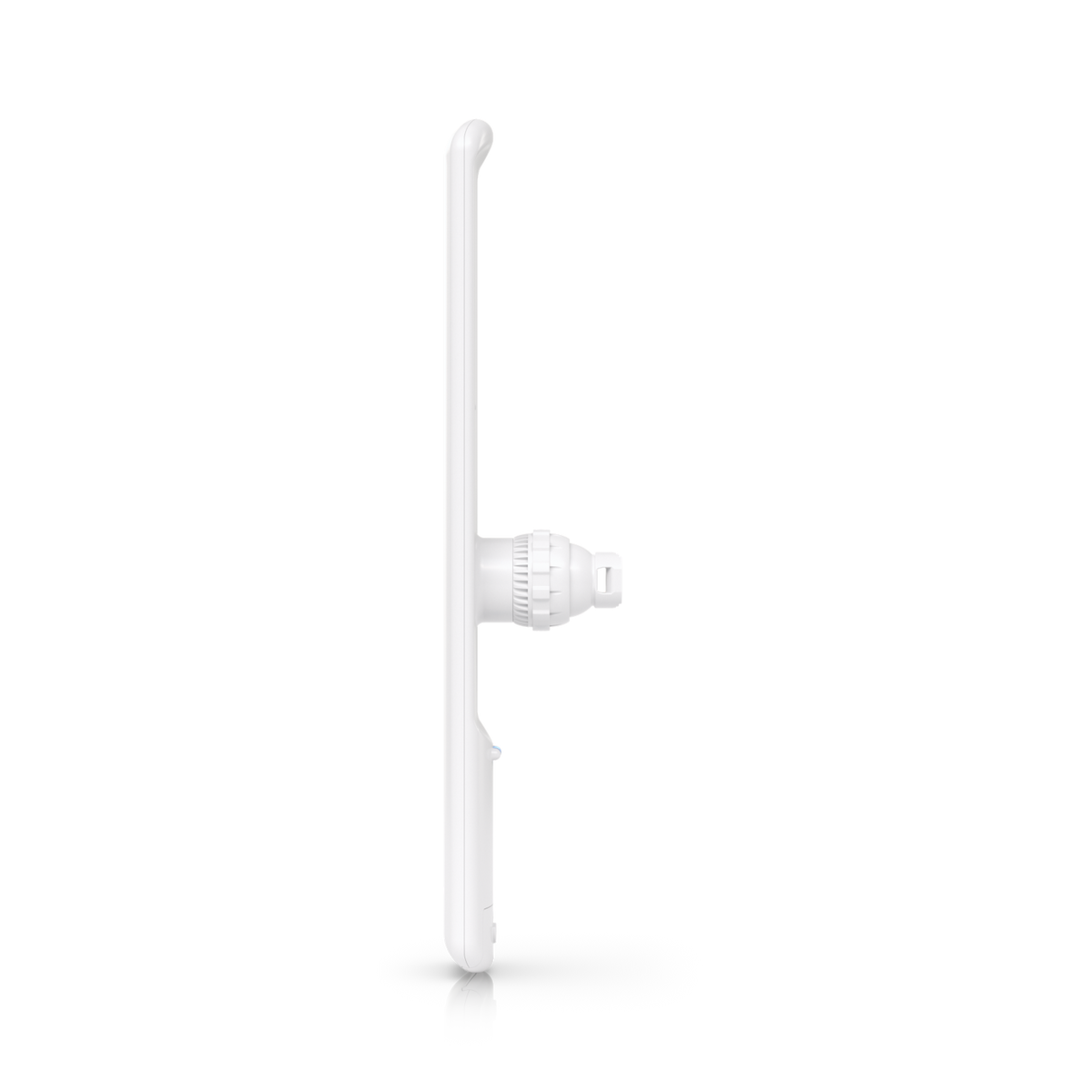

The Ubiquiti airMAX Lite AP LAP-120 is an outdoor 5 GHz access point for wireless network operators and installers building point-to-multipoint links. Its sector antenna is designed to serve multiple compatible airMAX AC client devices across a 120° coverage area.

With 2x2 MIMO and stated throughput of 450+ Mbps, the LAP-120 combines its radio and antenna in a lightweight unit. The integrated design and ball-joint mount support flexible positioning, while three-axis alignment helps installers aim the unit. A single Gigabit Ethernet port carries network traffic, and airMAX AC mode provides the wireless protocol used with compatible airMAX AC equipment.

Key features

• 120° sector coverage for serving multiple compatible client devices
• 2x2 MIMO wireless operation
• 5 GHz frequency band
• 450+ Mbps stated throughput
• Integrated antenna and radio in a lightweight enclosure
• Ball-joint mount allows adjustment for installation
• Gigabit Ethernet connection for wired networking
• airMAX AC mode and airOS configuration features

Compatibility

The LAP-120 is an access point for airMAX AC wireless links; client devices need to support compatible airMAX AC operation. It has one Gigabit Ethernet port and uses passive PoE over two pairs. The included 24V, 0.5A Gigabit PoE adapter supplies power. The Ubiquiti management app requires the separate U-Installer for this model. Good to know: passive PoE is not the same as standard 802.3af/at PoE, so check the power method before connecting it to other network equipment.

In the box

• Ubiquiti airMAX Lite AP LAP-120
• Ball Joint Mount
• Metal Strap
• Gigabit PoE (24V, 0.5A) with Mounting Bracket
• Power Cord
• Quick Start Guide

Specifications

For outdoor point-to-multipoint deployments, the LAP-120 brings sector coverage, integrated radio hardware and Gigabit Ethernet together in a unit that can be aligned for the installation. Its included PoE adapter helps provide a matching power option for a compatible setup.
