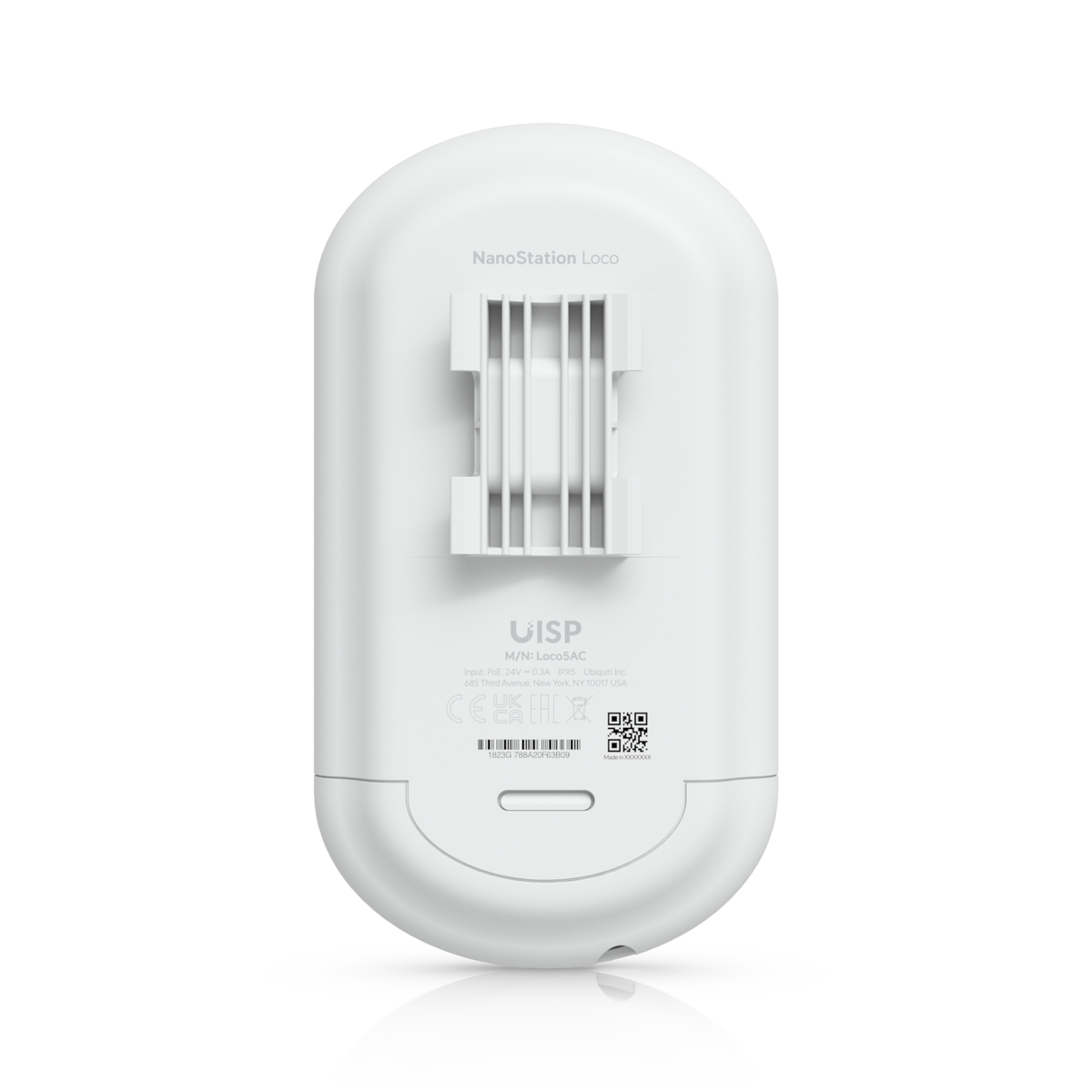

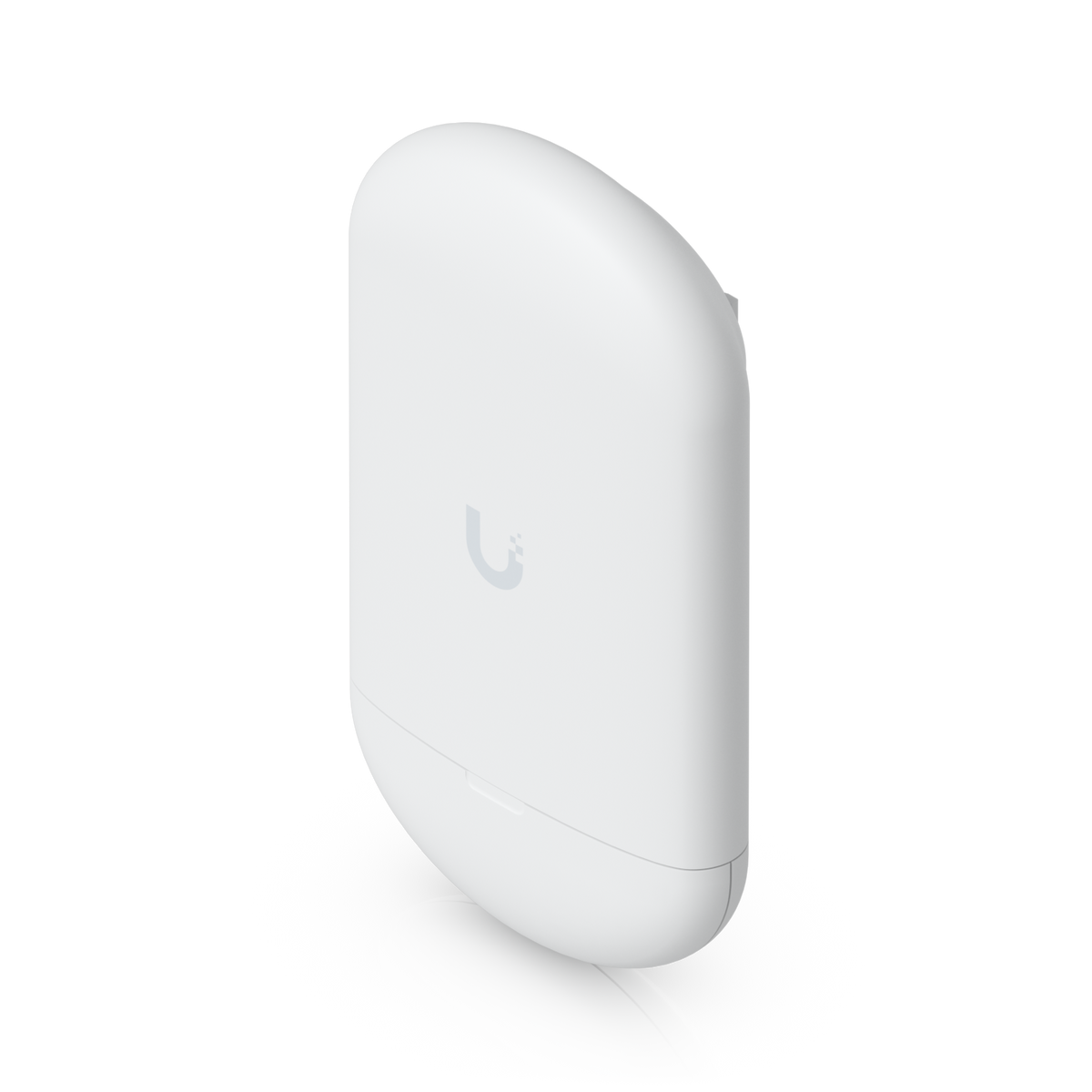

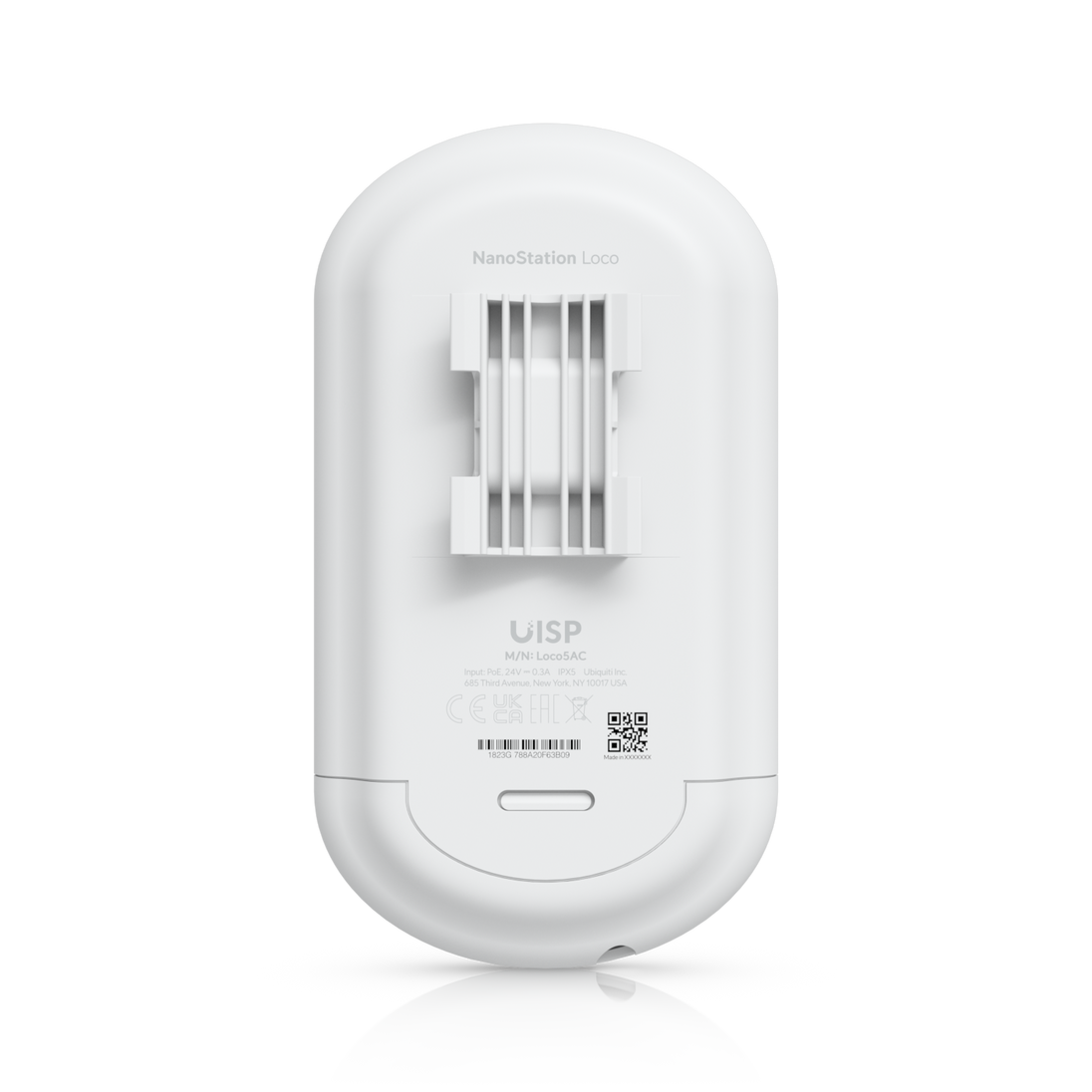

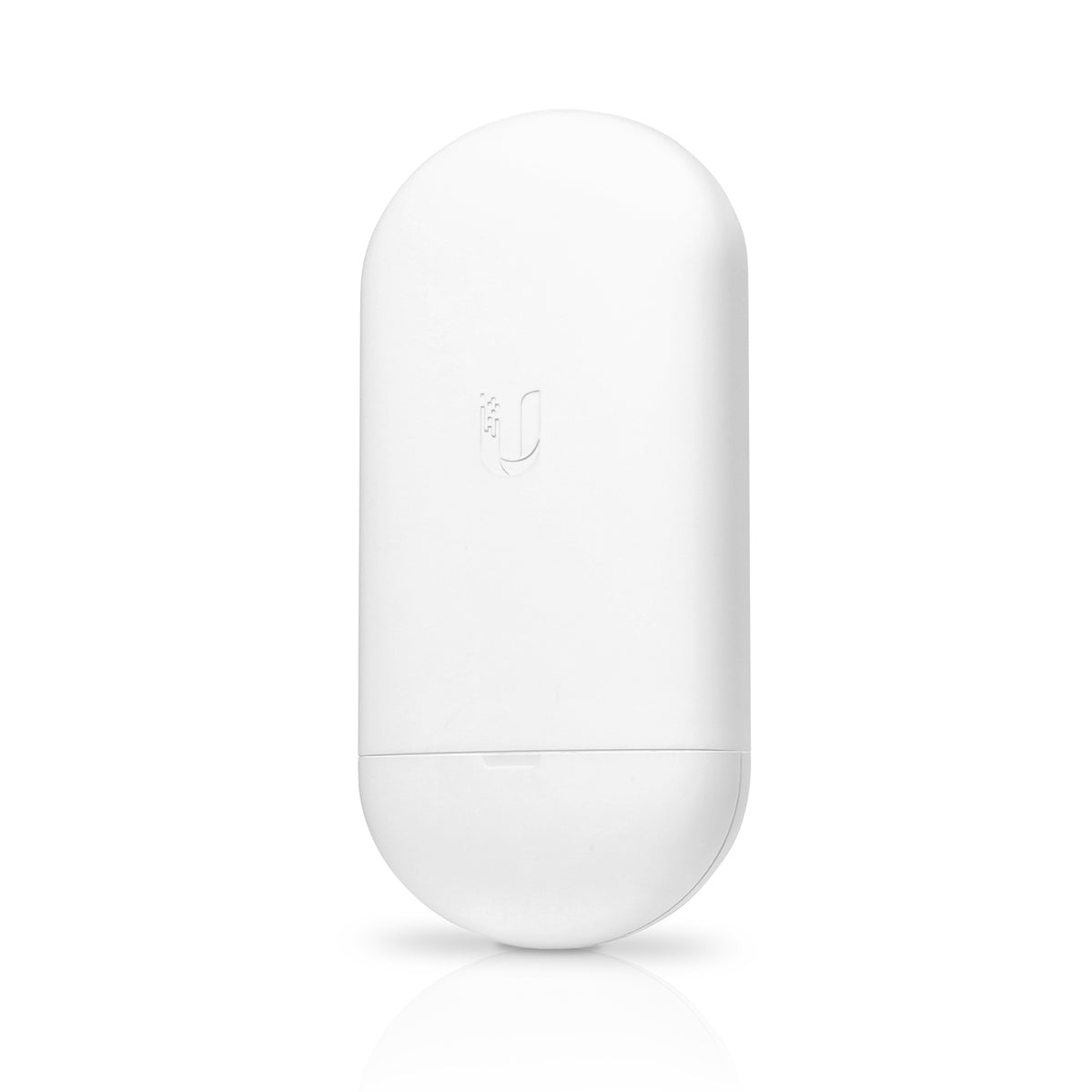

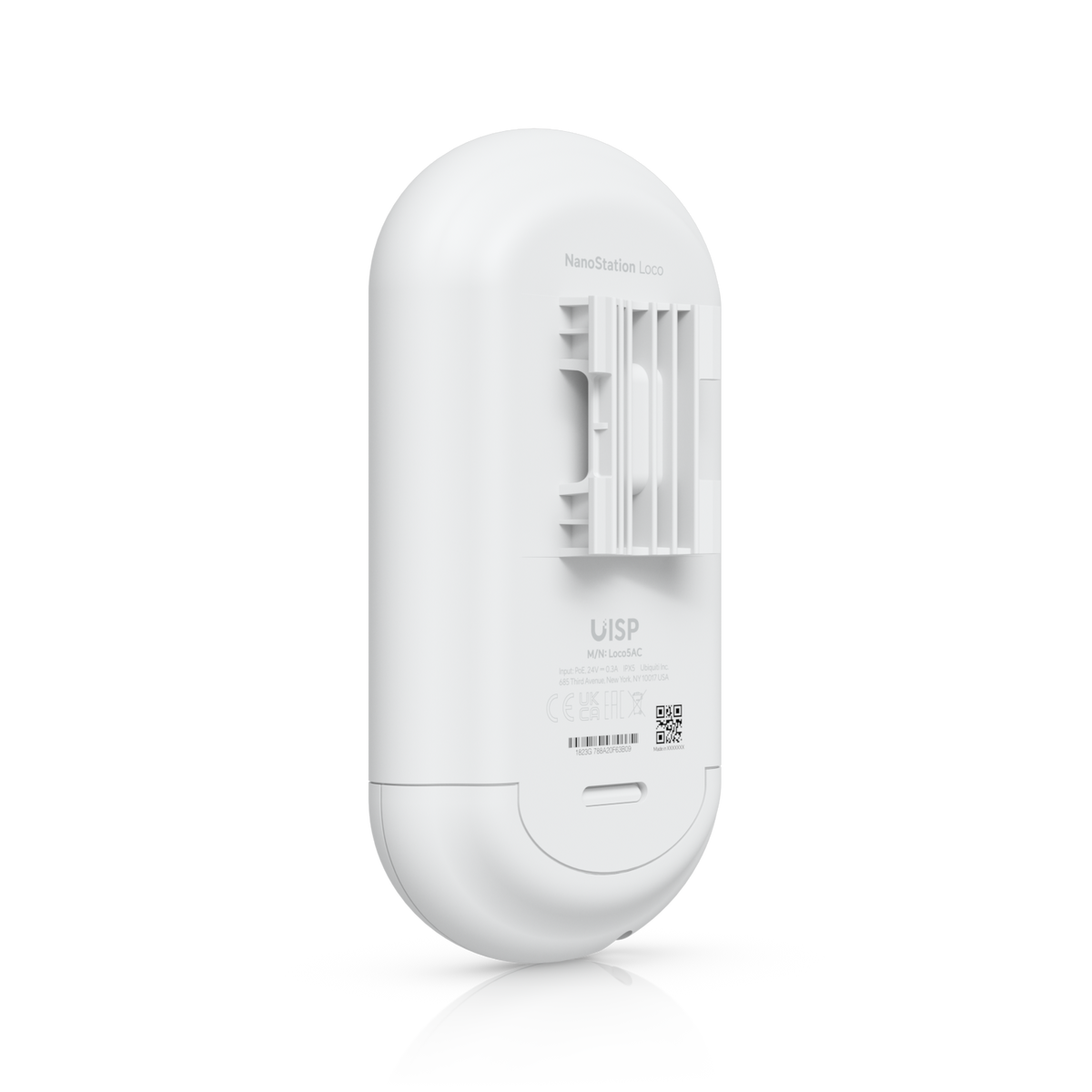

The Ubiquiti airMAX NanoStation 5AC Loco is a compact outdoor wireless bridge for network installers and small organisations that need to connect a building, outbuilding or remote network point. It operates in the 5 GHz band and supports airMAX AC for point to point and point to multipoint links.

Its integrated 13 dBi antenna and dual linear polarisation provide a focused directional link, while the separate management Wi-Fi radio makes setup with a mobile device easier. The single Gigabit Ethernet port combines network connectivity with passive PoE power, and the UV stabilised enclosure is designed for outdoor installation. airOS includes tools such as RF analytics, traffic shaping, bridging and distance adjustment.

Key features

• 5 GHz airMAX AC wireless bridge for point to point and point to multipoint links.
• Integrated 13 dBi antenna with dual linear polarisation.
• Dedicated Wi-Fi radio for convenient device management during setup.

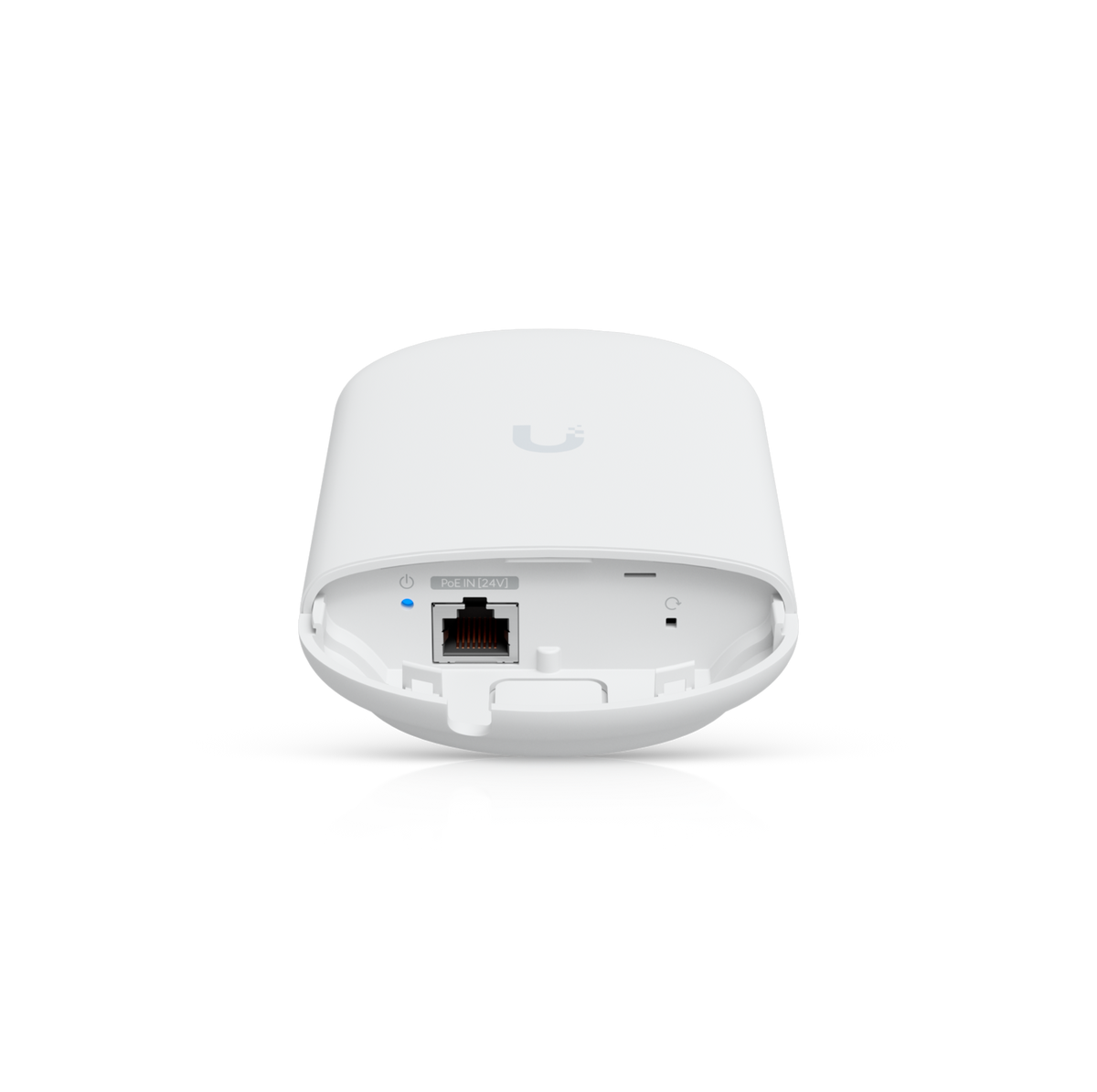

• One Gigabit Ethernet port for the wired network connection.
• Passive PoE power over two pairs simplifies a single cable installation.
• UV stabilised enclosure and included pole mount support outdoor placement.
• airOS provides RF analytics, bridging, traffic shaping and distance adjustment.

Compatibility

This is an airMAX AC bridge for linking compatible wireless network equipment; it is not a general-purpose Wi-Fi access point for phones or laptops. The Ethernet port uses passive PoE, and the required 24V Gigabit PoE supply is not included. Do not connect it to an 802.3af/at PoE source. The unit supports 22–27V DC input.

In the box

• Ubiquiti airMAX NanoStation 5AC Loco

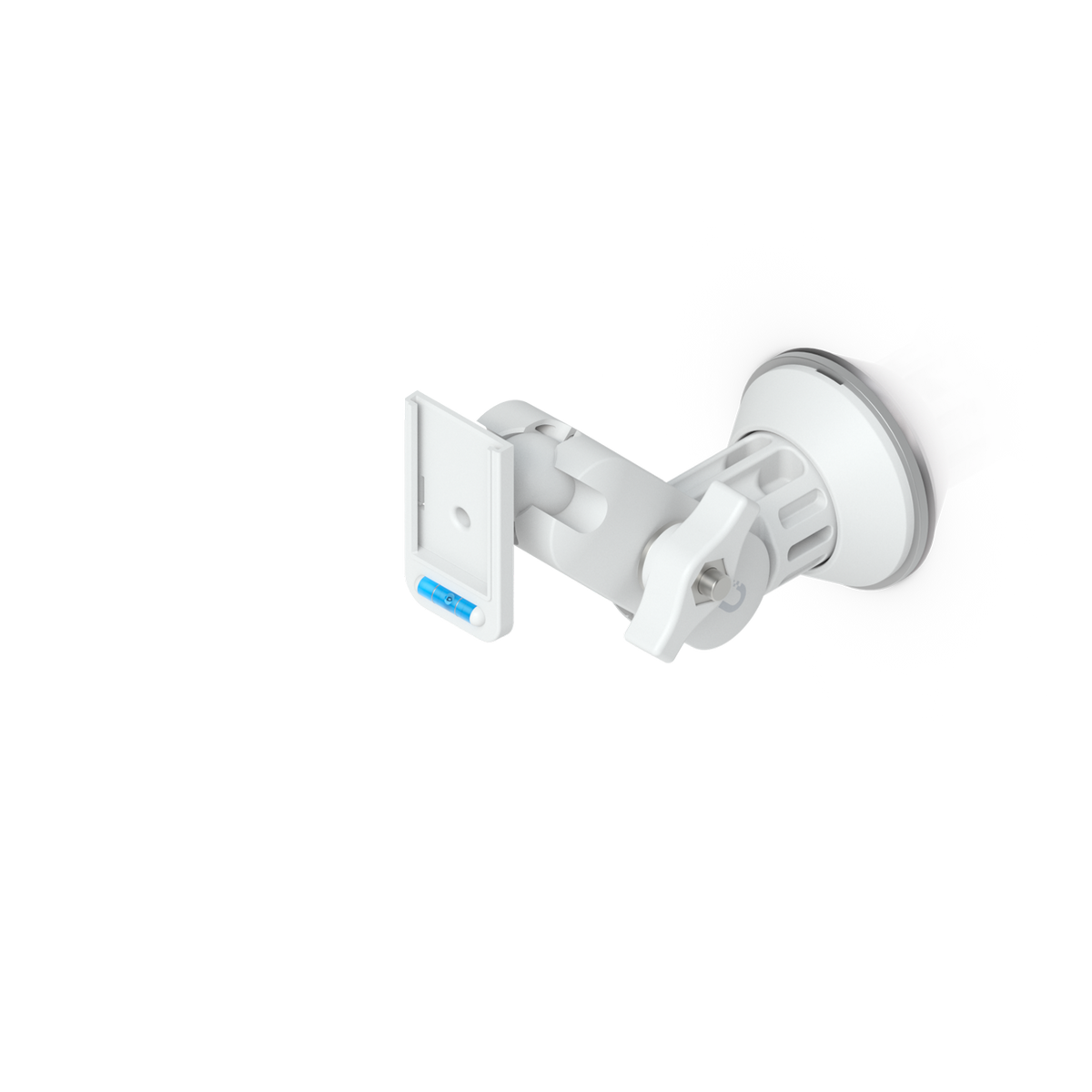

• Pole mount

Specifications

For an outdoor link, plan suitable shielded Ethernet cabling and surge protection as part of the installation. The NanoStation 5AC Loco offers a compact way to extend a wired network across a suitable wireless link, with its mounting hardware and management radio helping keep deployment straightforward.
