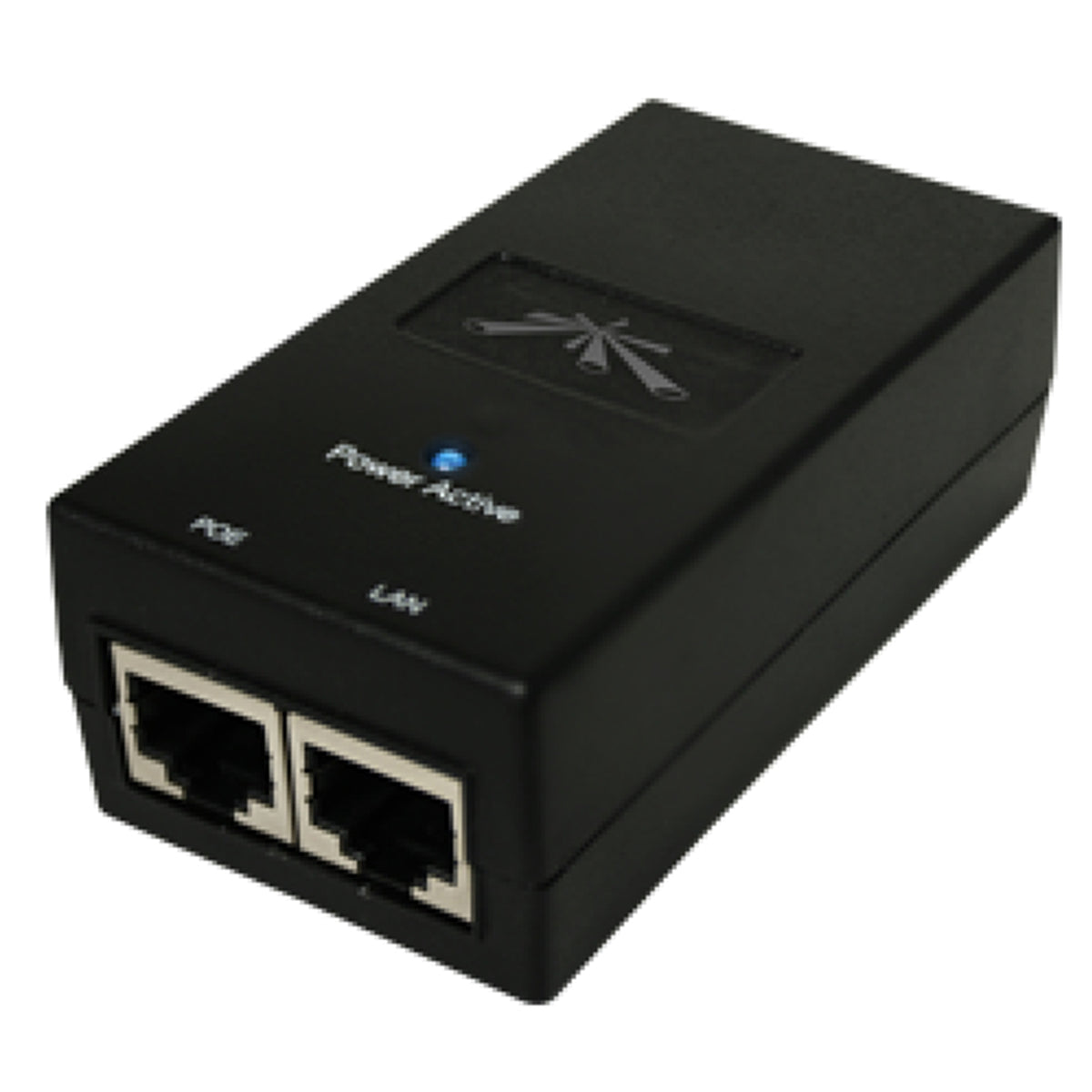

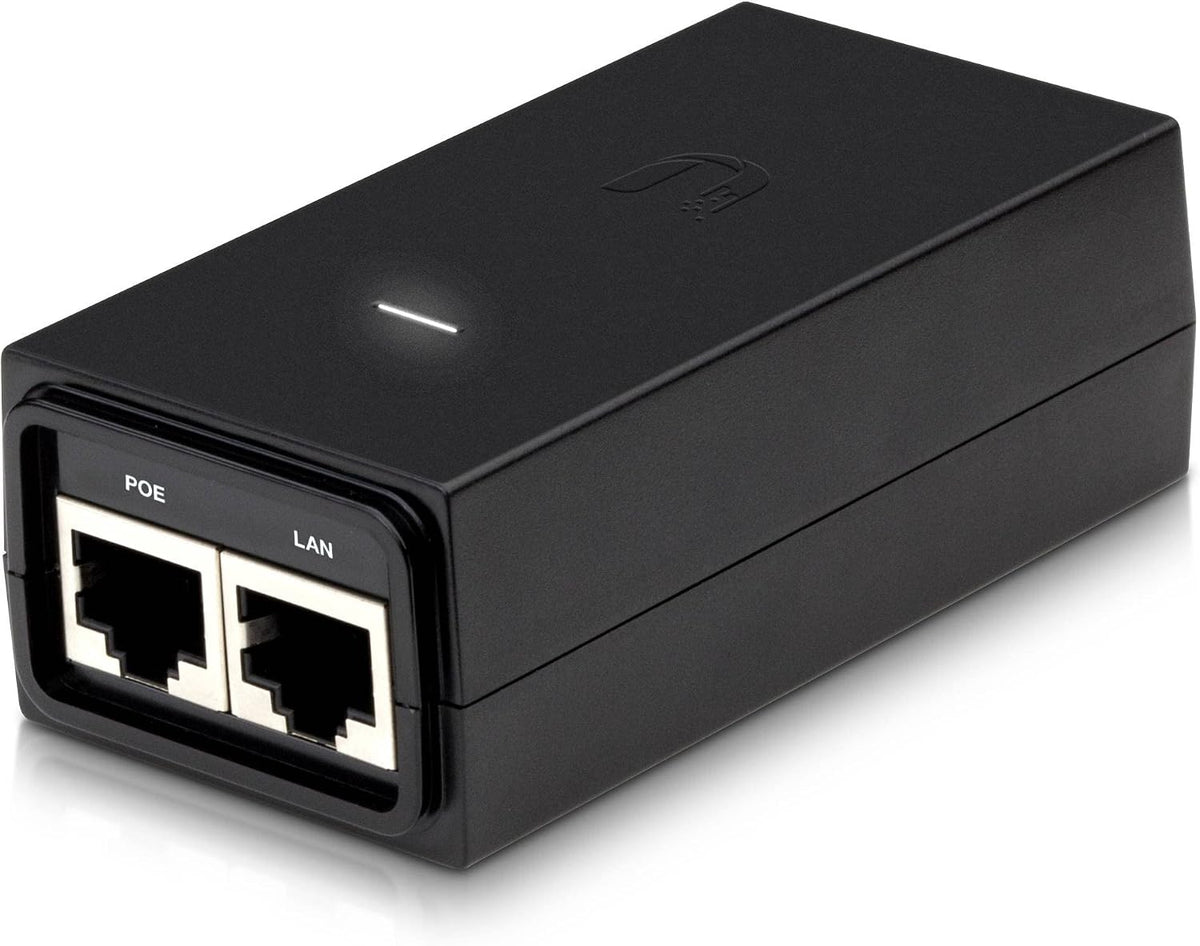

The Ubiquiti POE-24-12W-G is a 24V passive Power over Ethernet injector for users powering a compatible Ubiquiti network device from an AC outlet. It suits home or small business network setups where a Gigabit connection is needed alongside power over Ethernet.

It supplies 24V DC at 0.5A and has a Gigabit LAN port, so the data link can support Gigabit Ethernet while the injector powers the connected device. Built-in surge and clamping protection helps protect connected equipment. Remote reset capability and a reset button add practical control when the powered device needs restarting.

Key features

• Provides 24V DC output at 0.5A for compatible passive PoE devices.
• Gigabit LAN port supports high-speed wired network connections.
• Surge protection covers difference and common modes.
• Clamping protection is rated at 11V for data and 60V for power.
• Maximum surge discharge is 1500A for power.
• Remote reset capability and a reset button help restart a connected device.
• AC input is rated for 100–240V at 50/60Hz.

Compatibility

Use it with a device that specifically supports 24V passive PoE and check the device’s power requirements before connecting. Its output uses two-pair powering, with pins 4 and 5 positive and pins 7 and 8 negative. The AC connector is IEC-320 C6, and the data input/PoE connection is a shielded RJ45 socket. It is wall-mountable with optional wall-mount brackets. Good to know: passive PoE is different from standards-based 802.3af/at PoE, so confirm that the powered device accepts 24V passive PoE; the wall-mount brackets are optional.

In the box

• Ubiquiti POE-24-12W-G

Specifications

For a compatible Ubiquiti device, this injector combines 24V power, Gigabit data and protection features in one compact network accessory.
