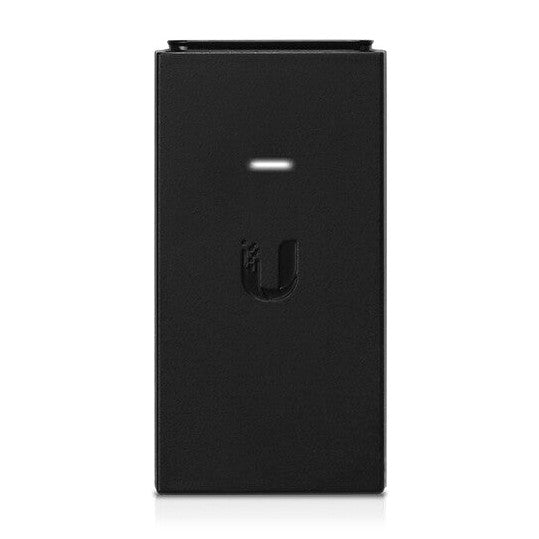

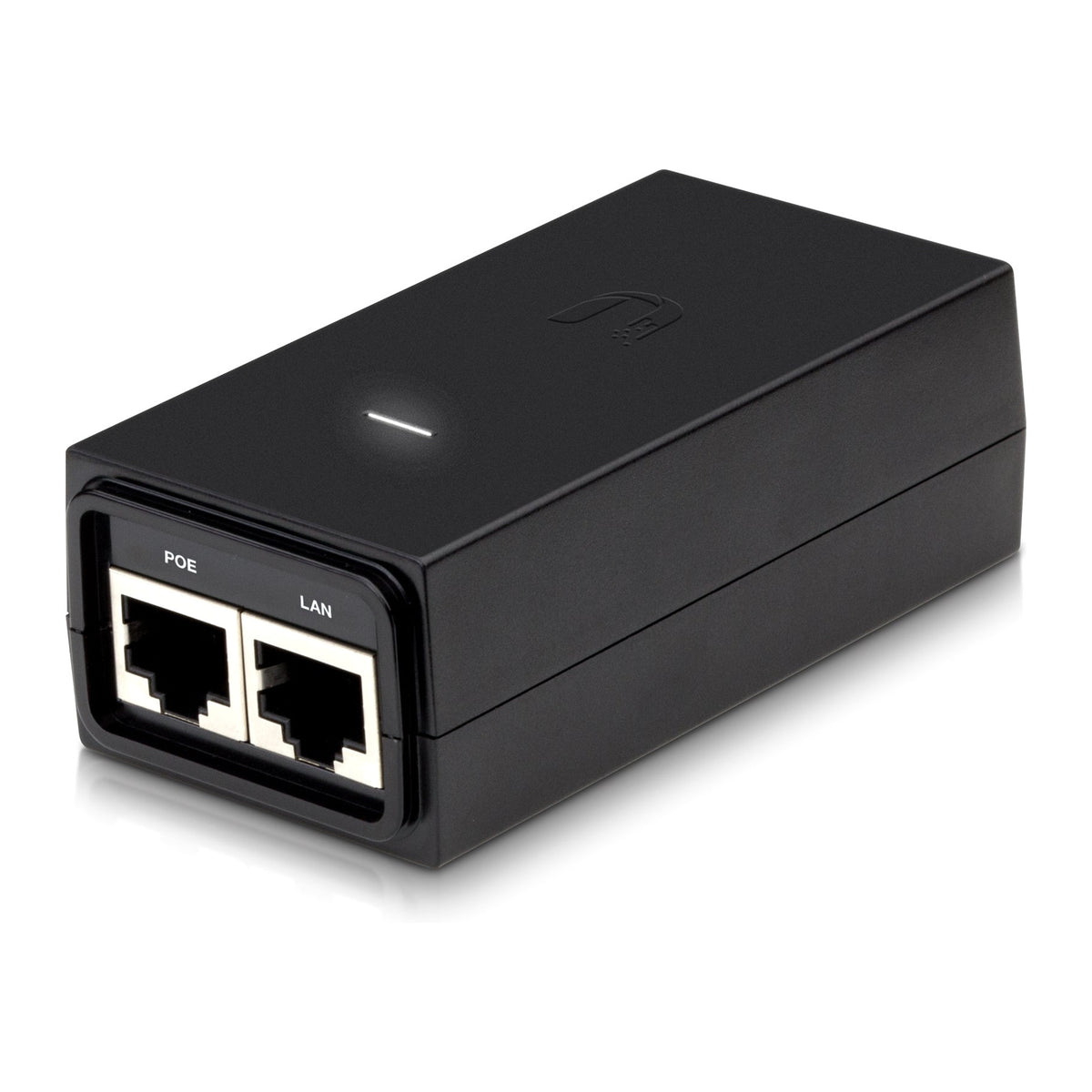

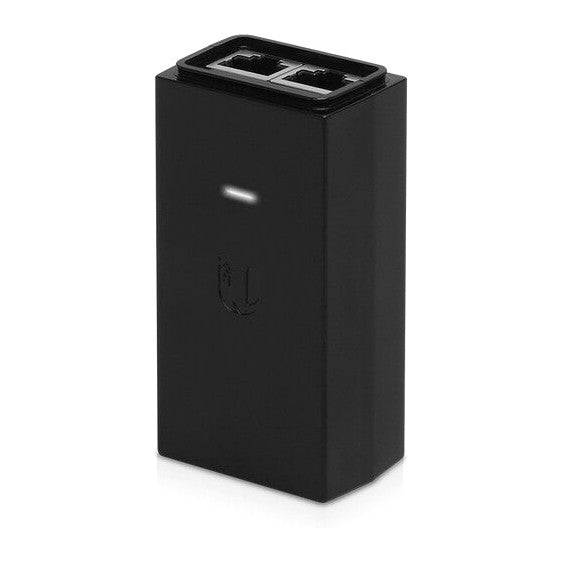

The Ubiquiti POE-24-12W is a 24V passive Power over Ethernet injector for network devices that support this power input. It suits network installers and home or small business users who need to supply power and data over Ethernet to compatible equipment, including supported Ubiquiti devices.

It delivers 24VDC at 0.5A, with a 12W output, over two Ethernet pairs. Its non-Gigabit LAN port is suited to devices that do not need a Gigabit connection. The adapter also provides surge and clamping protection. When used with Ubiquiti TOUGHCable and its connectors, a grounded adapter can help protect outdoor equipment from electrostatic discharge. The POE-24-12W is also compatible with Ubiquiti airGateway devices.

Key features

• Supplies 24V passive PoE at up to 0.5A.
• Provides 12W of output power for compatible devices.
• Uses two-pair powering on Ethernet pins 4 and 5 positive and pins 7 and 8 negative.
• Includes surge and clamping protection for connected network equipment.
• Supports a grounded setup with Ubiquiti TOUGHCable and compatible connectors to help mitigate ESD risk.
• Works with airGateway devices to connect supported airMAX installations to Wi-Fi.
• Offers an optional wall-mounting arrangement using the relevant wall-mount bracket.

Compatibility

Use this injector only with equipment that supports 24V passive PoE; check the device’s power requirements and Ethernet pinout before connecting it. Its LAN port is not Gigabit-capable. Good to know: this is passive 24V PoE, so do not assume it is interchangeable with 802.3af or 802.3at injectors; the wall-mount bracket is optional.

In the box

• Ubiquiti POE-24-12W
• UK power lead 60cm

Specifications

For compatible 24V passive PoE equipment, the POE-24-12W provides a straightforward way to combine network data and power, with grounding and surge protection features for a carefully matched installation.
