Ubiquiti

Ubiquiti U7 Pro 5800 Mbit/s White Power over Ethernet (PoE)

SKU U7-PRO
£148.47
£148.47
Excluding taxes
WiFi 7 (802.11a/b/g/n/ac/ax/be), 6 GHz, 140 m2 (1,500 ft2), 2.5 GbE RJ45, PoE+, 300+ clients, 206 x 46 mm, 680 g, polycarbonate, metal

Key Features

  • WiFi 7 tri-radio with 6 GHz
  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink

Description

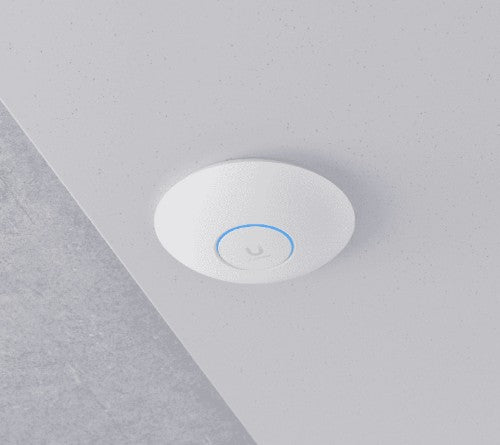

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

Specifications

Data transmission
Ethernet LAN data rates 1000,2500 Mbit/s
Maximum data transfer rate 5800 Mbit/s
Performance
2.4 GHz Yes
5 GHz Yes
Reset button Yes
Frequency band 2.4 - 6 GHz
Number of users 300 user(s)
VLAN support Yes
Rate limiting Yes
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.3at
Ethernet LAN data rates 1000,2500 Mbit/s
Maximum data transfer rate 5800 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Wireless LAN features
Frequency band 2.4 - 6 GHz
Network
Number of users 300 user(s)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.3at
Management features
VLAN support Yes
Rate limiting Yes
Quality of Service (QoS) support Yes
Features
6 GHz Yes
2.4 GHz Yes
5 GHz Yes
Frequency band 2.4 - 6 GHz
Number of users 300 user(s)
VLAN support Yes
Rate limiting Yes
Quality of Service (QoS) support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.3at
Ethernet LAN data rates 1000,2500 Mbit/s
Maximum data transfer rate 5800 Mbit/s
Fast roaming Yes
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Maximum data transfer rate (2.4 GHz) 688 Mbit/s
Maximum data transfer rate (5 GHz) 4300 Mbit/s
Throughput data rate 5765 Mbit/s
Fit AP mode features Hotspot 2.0
Maximum data transfer rate (6 GHz) 5800 Mbit/s
Coverage area 140 m²
Maximum Tx power (2.4 GHz) 22 dBmW
Maximum Tx power (5 GHz) 26 dBmW
Maximum Tx power (6 GHz) 23 dBmW
Security
Security algorithms PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Ports & interfaces
WAN connection Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports 1
Power
Power consumption (max) 21 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE+
DC voltage range 44 - 57 V
Design
Housing material Metal, Polycarbonate (PC)
Placement Ceiling, Wall
Product colour White
Reset button Yes
LED indicators Yes
Antenna
Antenna type Internal
Antenna gain level (max) 6 dBi
Technical details
Reset button Yes
Sustainability compliance Yes
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators Yes
Software
Fast roaming Yes
Weight & dimensions
Width 206 mm
Depth 206 mm
Weight 680 g
Height 46 mm
Packaging data
Mounting kit Yes
Packaging content
Mounting kit Yes
Quantity per pack 1 pc(s)
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -30 - 60 °C
Sustainability
Sustainability compliance Yes
Logistics data
Quantity per pack 1 pc(s)
