Ubiquiti

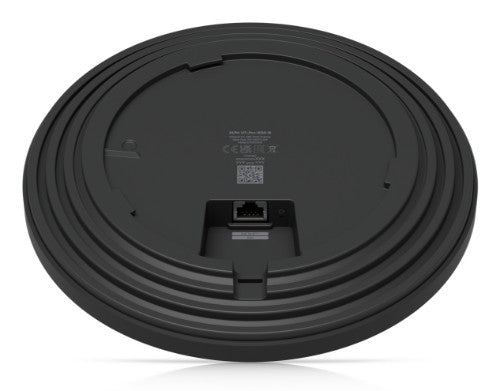

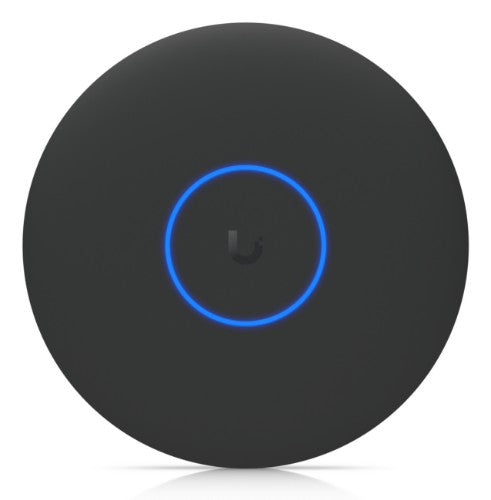

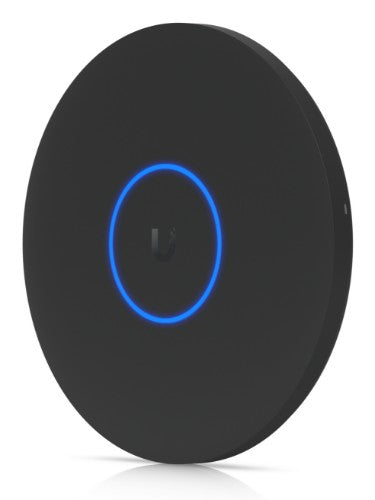

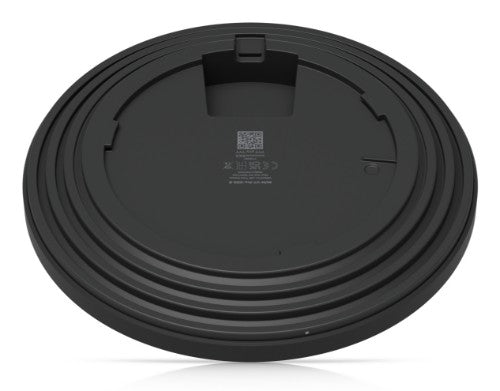

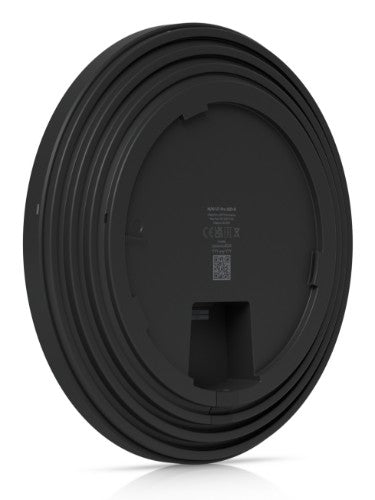

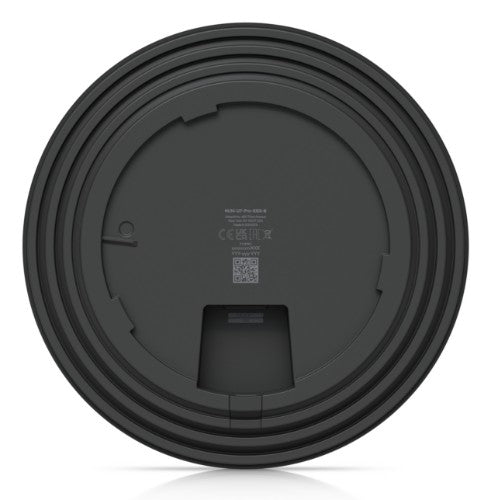

Ubiquiti U7-PRO-XGS | UniFi 7 Pro XGS | Ceiling Mounted | 8 Stream | WiFi 7 | 6GHz | 10GbE Access Point | Black

SKU U7-Pro-XGS-B
£315.76
£233.89
£315.76
£233.89
Excluding taxes
WiFi 7 (802.11a/b/g/n/ac/ax/be), 6 GHz, 160 m² (1,750 ft²), 10/5/2.5/1 GbE, PoE++, 500+ clients, 215 x 32.5 mm, 800 g

Description

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

Specifications

Data transmission
Ethernet LAN data rates 1000,2500,5000,10000 Mbit/s
Maximum data transfer rate 8600 Mbit/s
Performance
2.4 GHz Yes
5 GHz Yes
Reset button Yes
Frequency band 2.4, 5, 6 GHz
Number of users 500 user(s)
VLAN support Yes
Rate limiting Yes
Networking standards IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates 1000,2500,5000,10000 Mbit/s
Maximum data transfer rate 8600 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Wireless LAN features
Frequency band 2.4, 5, 6 GHz
Network
Number of users 500 user(s)
Networking standards IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Management features
VLAN support Yes
Rate limiting Yes
Access point management Wi-Fi schedule
Features
6 GHz Yes
2.4 GHz Yes
5 GHz Yes
Frequency band 2.4, 5, 6 GHz
Number of users 500 user(s)
VLAN support Yes
Rate limiting Yes
Networking standards IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates 1000,2500,5000,10000 Mbit/s
Maximum data transfer rate 8600 Mbit/s
Fast roaming Yes
MIMO type Multi User MIMO
MIMO Yes
Band steering Yes
Maximum data transfer rate (2.4 GHz) 688 Mbit/s
Maximum data transfer rate (5 GHz) 8600 Mbit/s
Fit AP mode features Hotspot 2.0
Maximum data transfer rate (6 GHz) 5800 Mbit/s
Spatial streams 8
Coverage area 160 m²
Wireless meshing Yes
Maximum Tx power (2.4 GHz) 23 dBmW
Maximum Tx power (5 GHz) 29 dBmW
Maximum Tx power (6 GHz) 24 dBmW
Security
Security algorithms PPSK
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Power
Power consumption (max) 29 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE++ (4PPoE)
Design
Housing material Metal, Polycarbonate (PC)
Placement Ceiling, Wall
Product colour Black
Reset button Yes
LED indicators Status
Antenna
Antenna type Internal
Antenna gain level (max) 6 dBi
Technical details
Reset button Yes
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators Status
Software
Fast roaming Yes
Weight & dimensions
Width 215 mm
Depth 32.5 mm
Weight 800 g
Height 215 mm
Packaging data
Mounting kit Yes
Packaging content
Mounting kit Yes
Quantity per pack 1 pc(s)
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -30 - 40 °C
Logistics data
Quantity per pack 1 pc(s)
