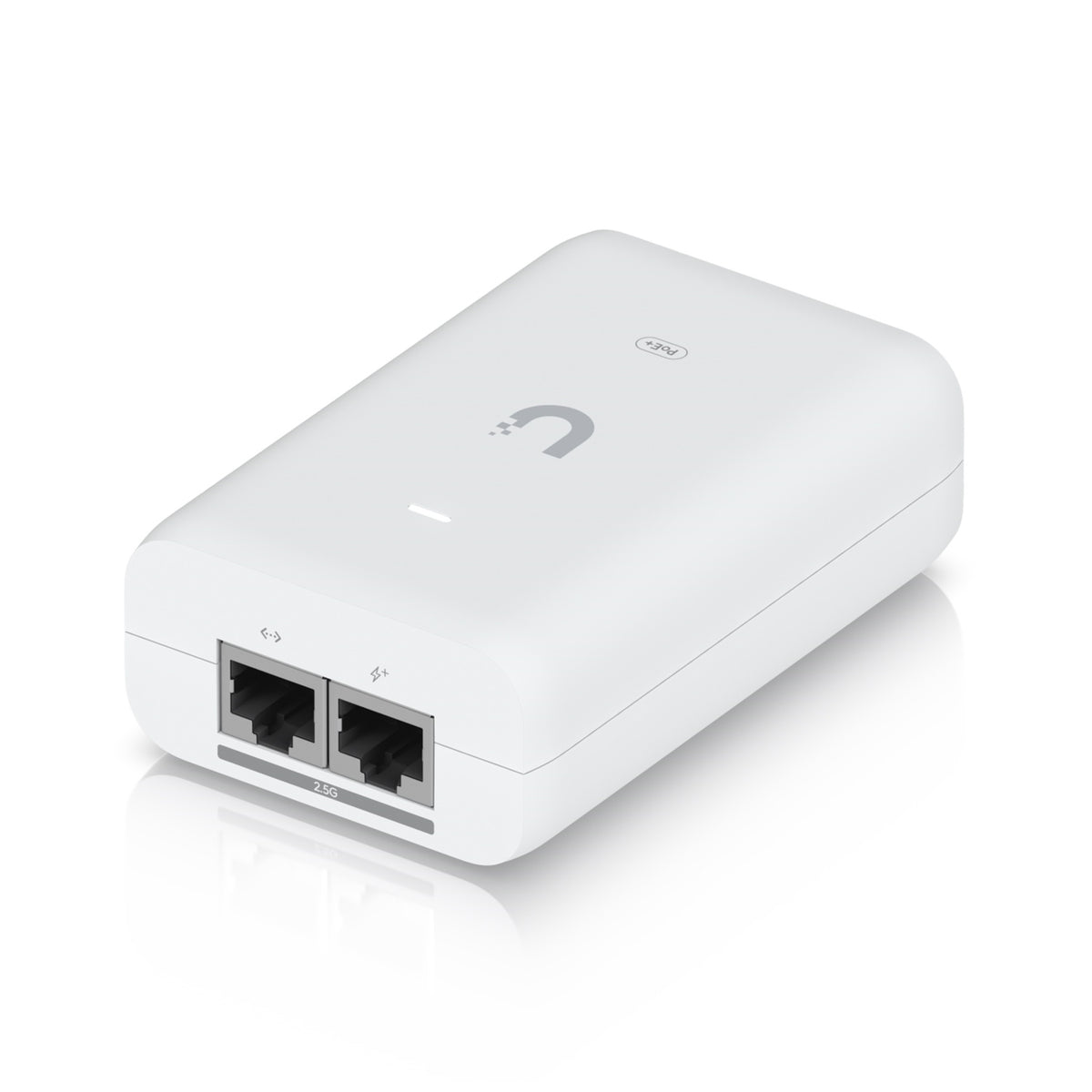

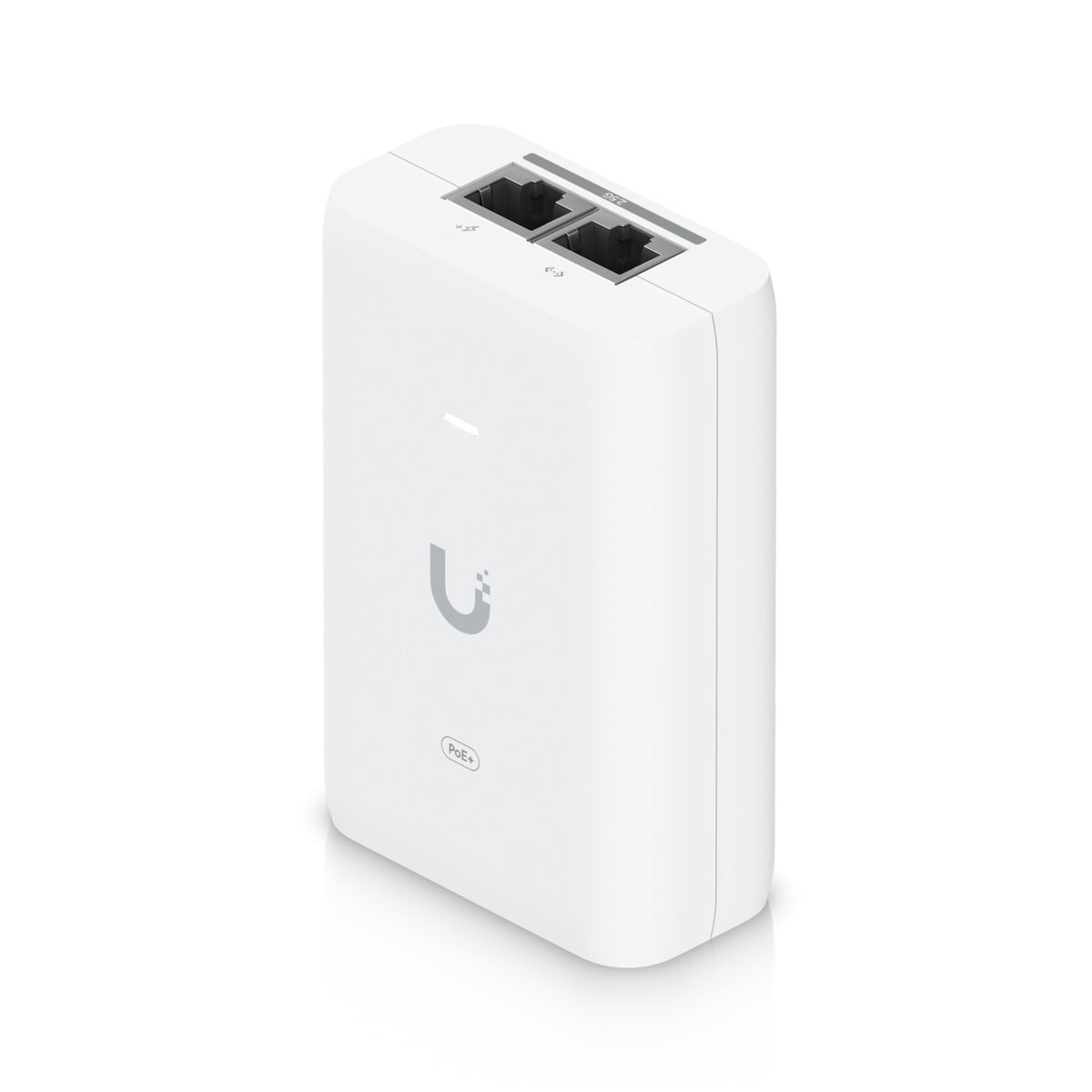

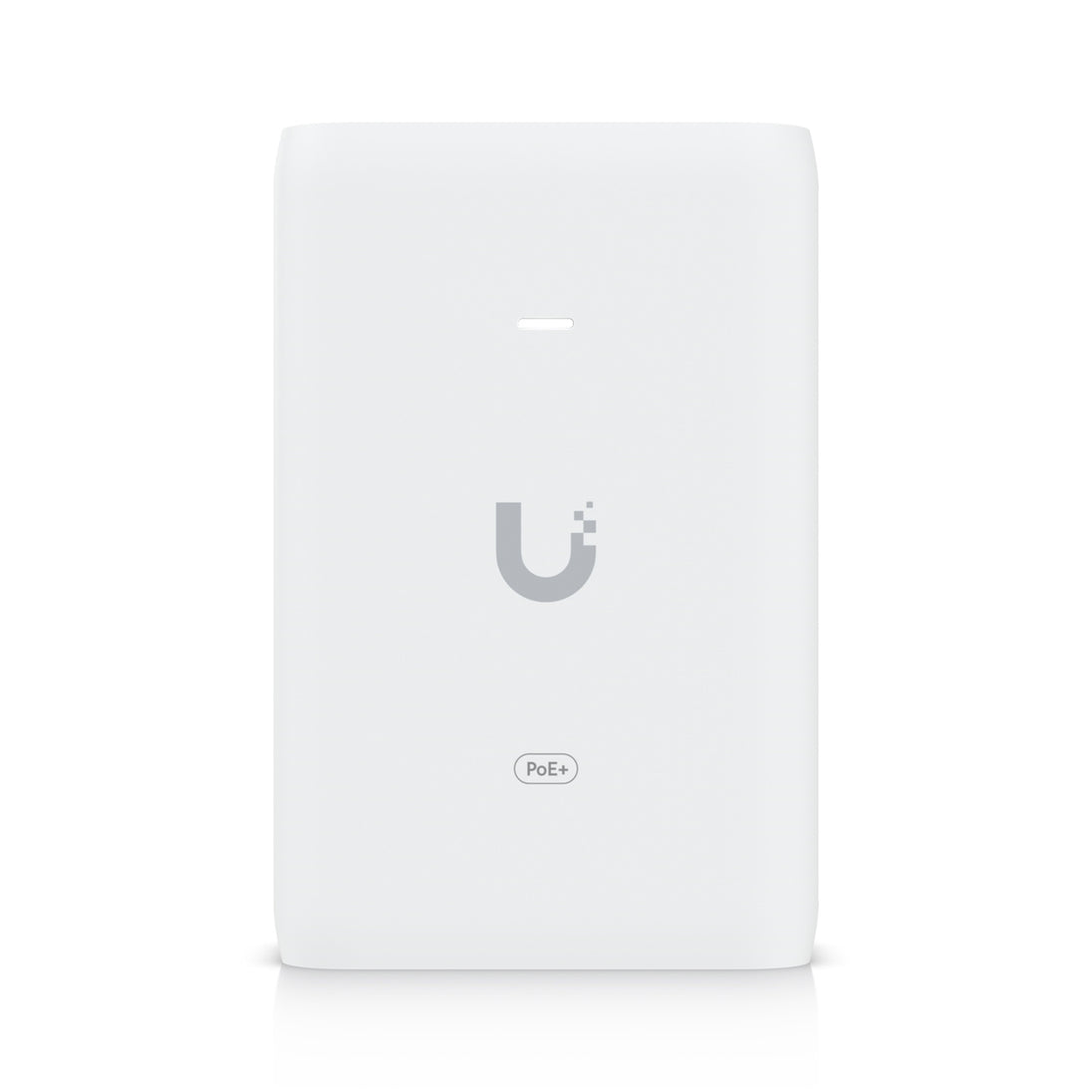

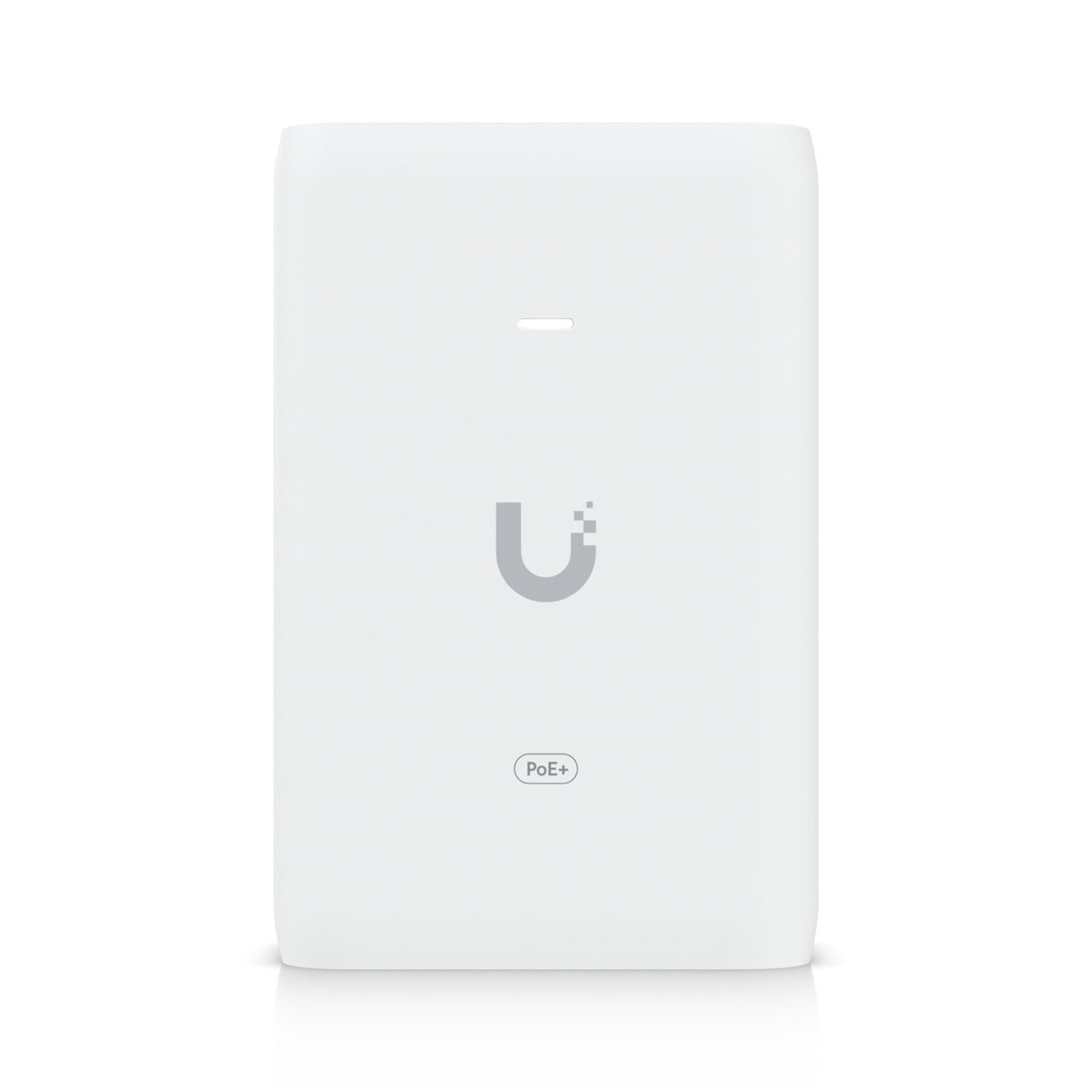

The Ubiquiti UniFi 2.5G PoE+ Adapter is a mains-powered injector for adding PoE+ to a network connection. It suits UniFi PoE+ device owners who need to power a compatible device without relying on a PoE switch, including installations where only one device needs PoE.
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 30W of PoE+
Surge, peak pulse, and overcurrent protection

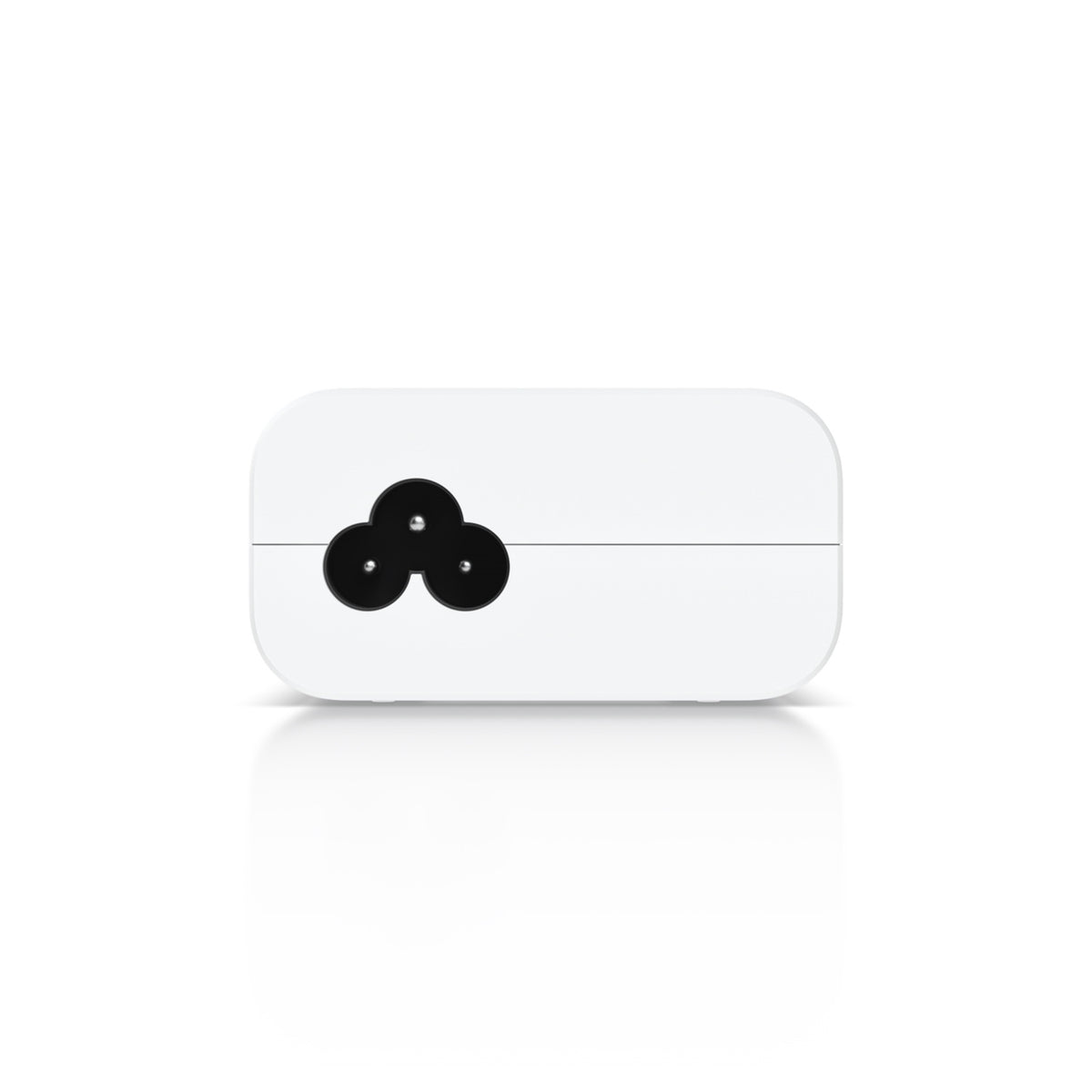

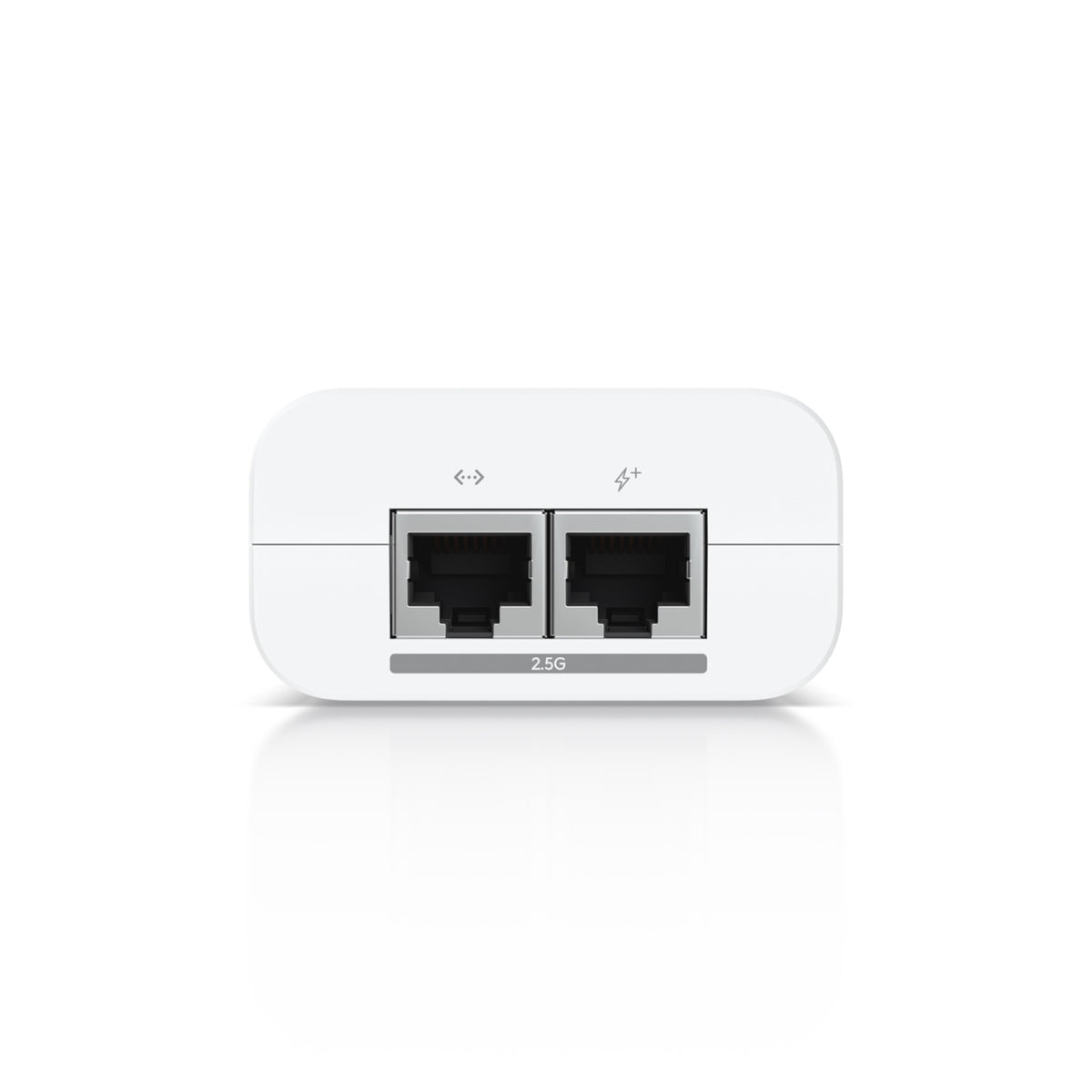

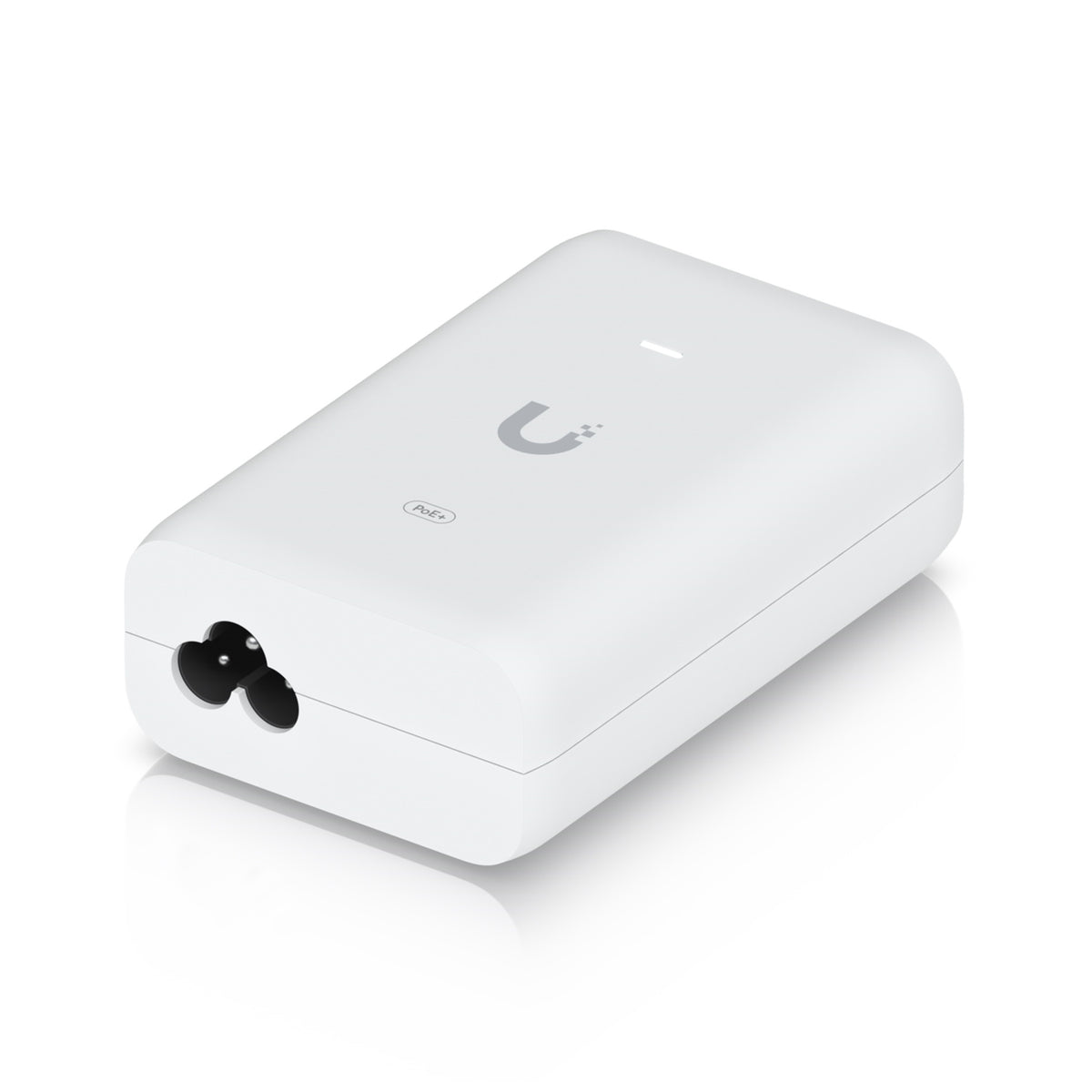

Contains RJ45 data input, AC cable with earth ground, and PoE+ output
LED indicator for status monitoring
Specification
| Specification | Detail |
|---|---|
| Dimensions | 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") |
| Weight | 156 g (5.5 oz) |
| Output Voltage | 48V DC @ 0.65A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes, up to 2.5 GbE |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100—240V AC @ 50/60Hz |
| Input Current | 0.75A max. |
| Inrush Current | <150A peak @ 230V AC |
| Efficiency | >87% |
| Output Ripple | 1% max. |
| Switching Frequency | 65 kHz max. |
| Line Regulation | < 1% |
| Load Regulation | < 3% |
| 2-Pair Powering | Pins 4, 5 (+) and 7, 8 (-) |
| 4-Pair Powering | No |
| Data In / POE | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11V data, 60V power |
| Max. Surge Discharge | 1500A power |
| Peak Pulse Current | 36A data |
| Shunt Capacitance | <5 pF Data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
-
