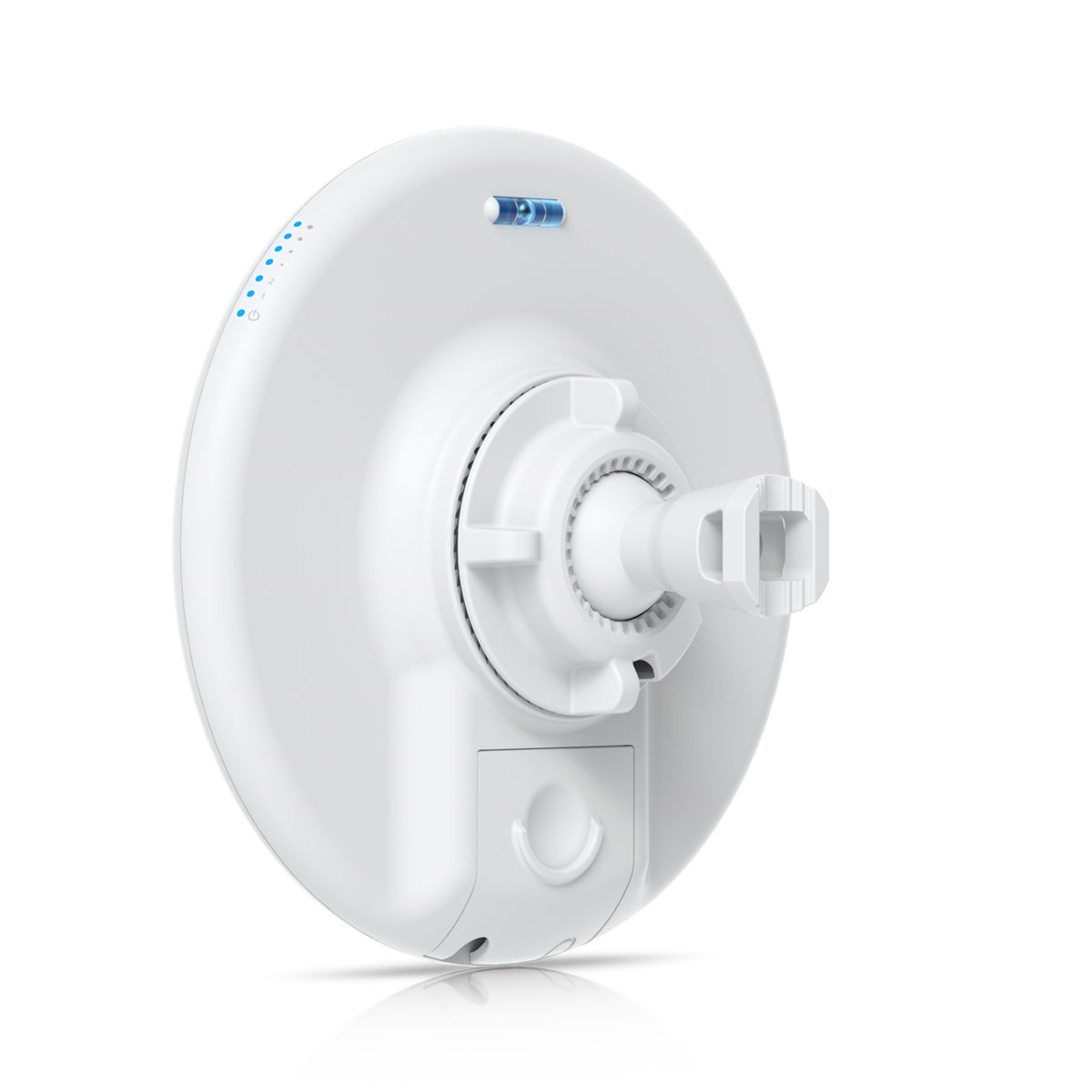

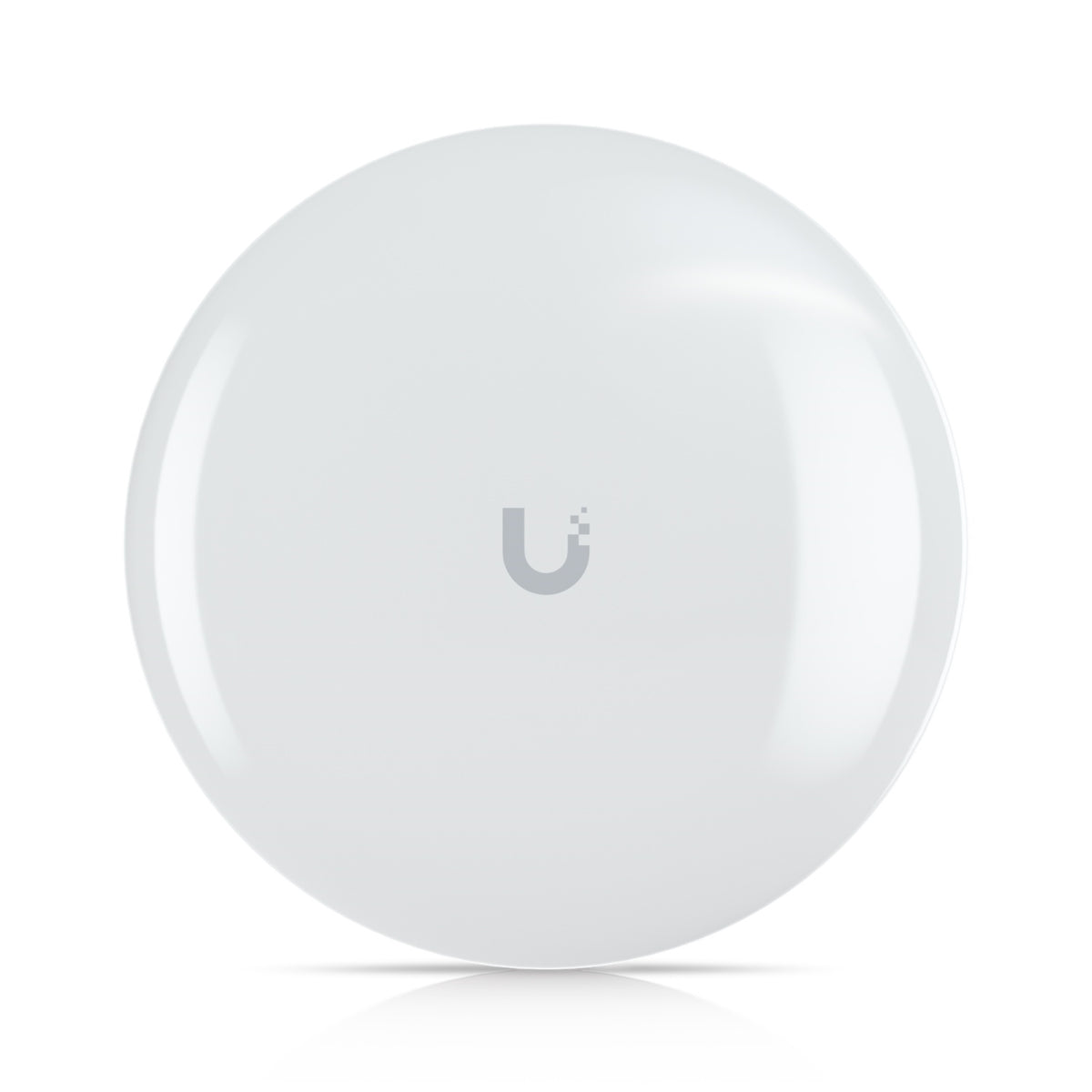

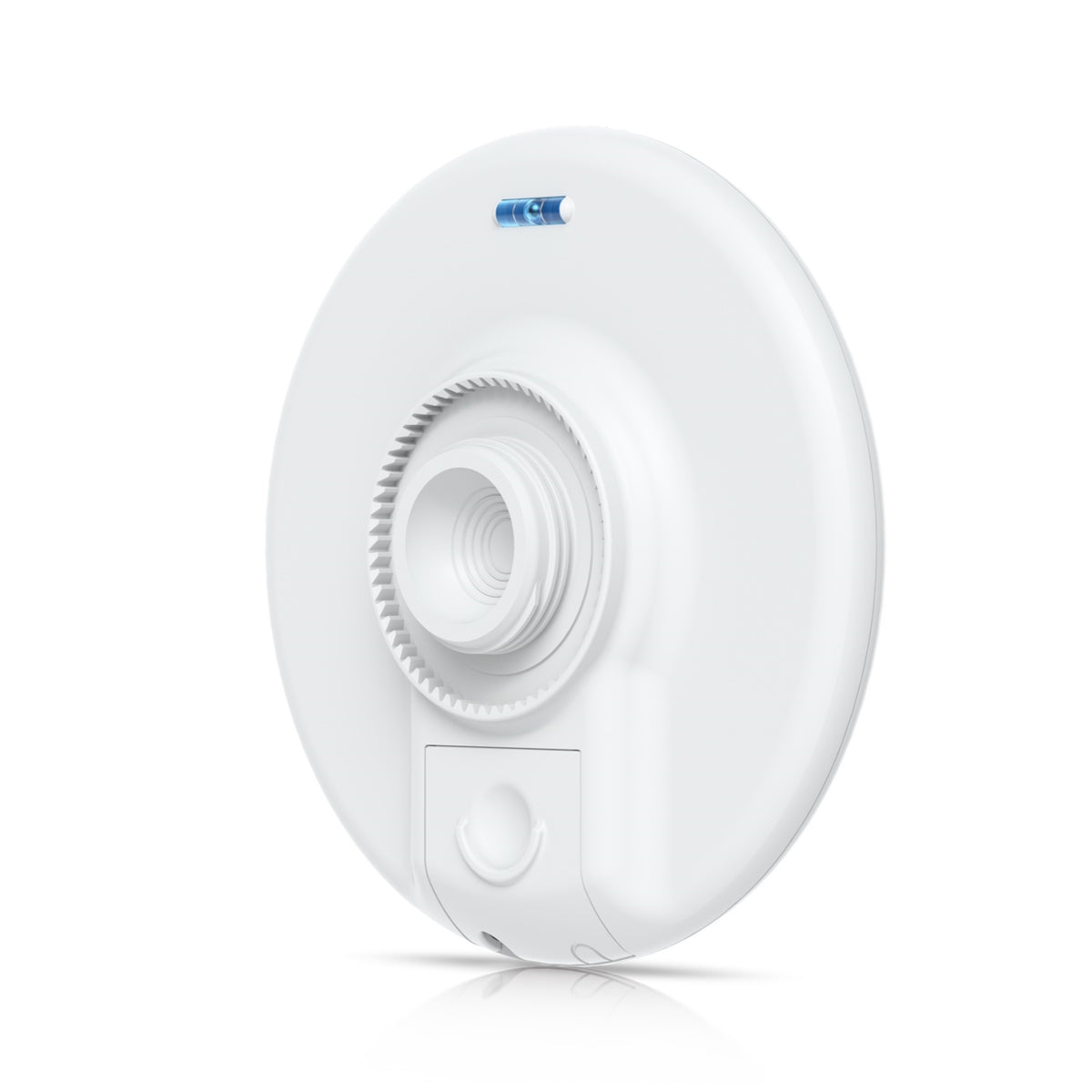

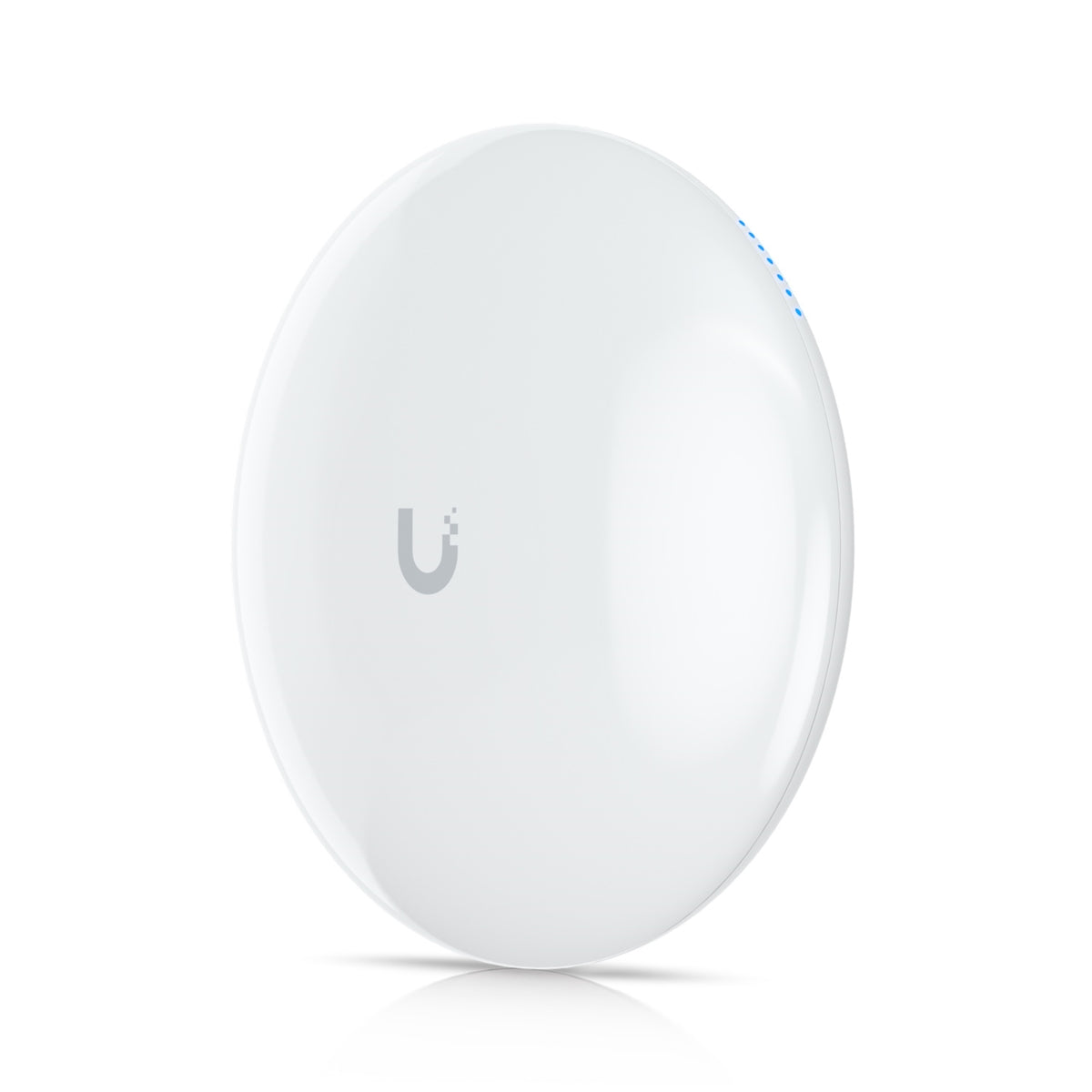

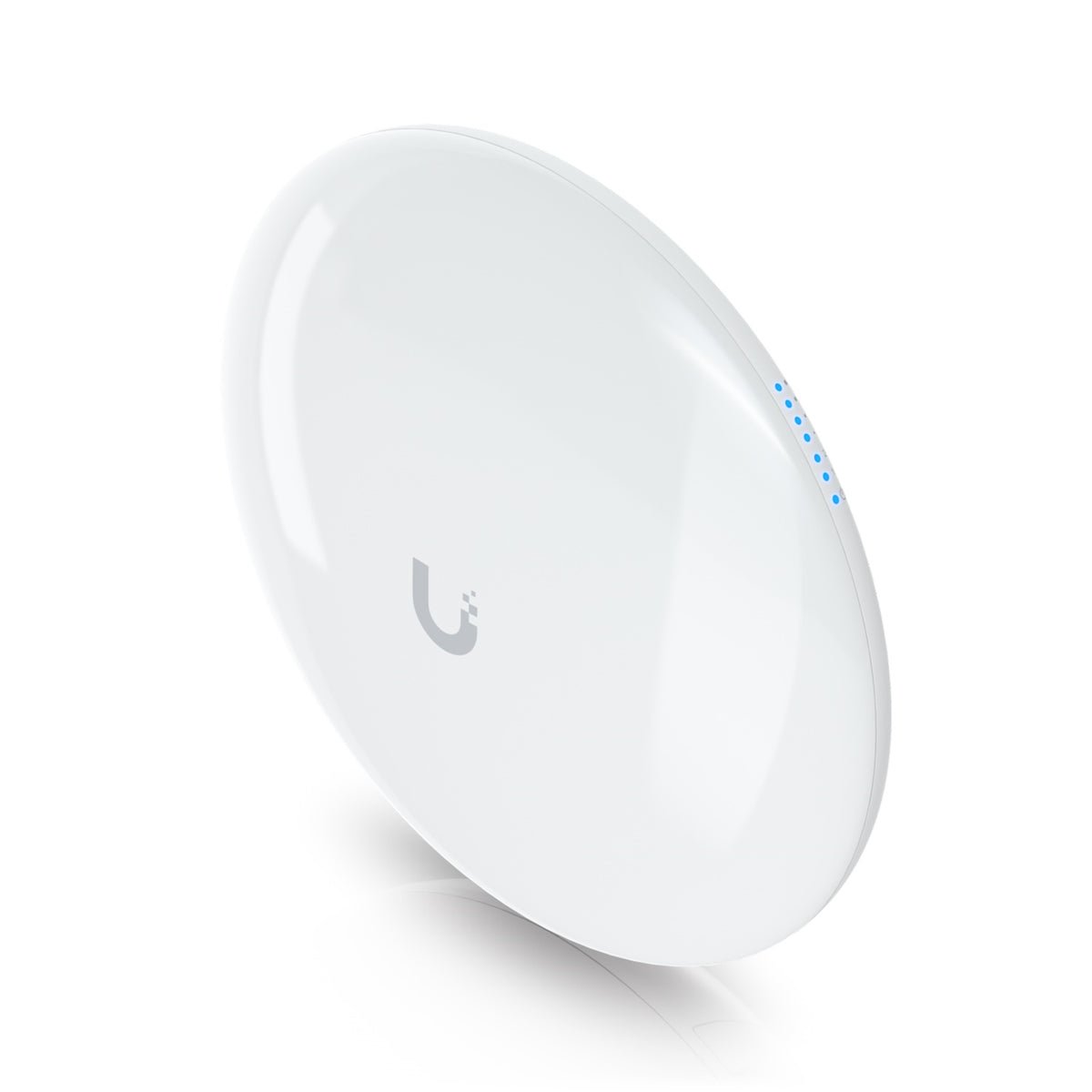

The Ubiquiti UniFi Device Bridge Pro is an outdoor wireless bridge for connecting remote buildings or network points. It suits homes, businesses and installers who need to extend a UniFi network across a property without running a network cable between locations.
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
PoE adapter included. PoE+ input required for PoE passthrough.
Specification
| Specification | Detail |
|---|---|
| Dimensions | d189.5 x 64.3 mm (d7.4 x 2.5") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Wall/Pole |
| Weatherproofing | IPX6 |
| Power Method | PoE PoE+ (Required for PoE output) |
| MIMO | 2 x 2 |
| Max. Data Rate | 867 Mbps (BW80) |
| Antenna Gain | 19 dBi |
| Max. TX Power | 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Supported Data Rates | 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Wireless Security | WPA2 AES (Always On) |
| Max. Power Consumption | 9W |
| Supported Voltage Range | 42.5—57V DC |

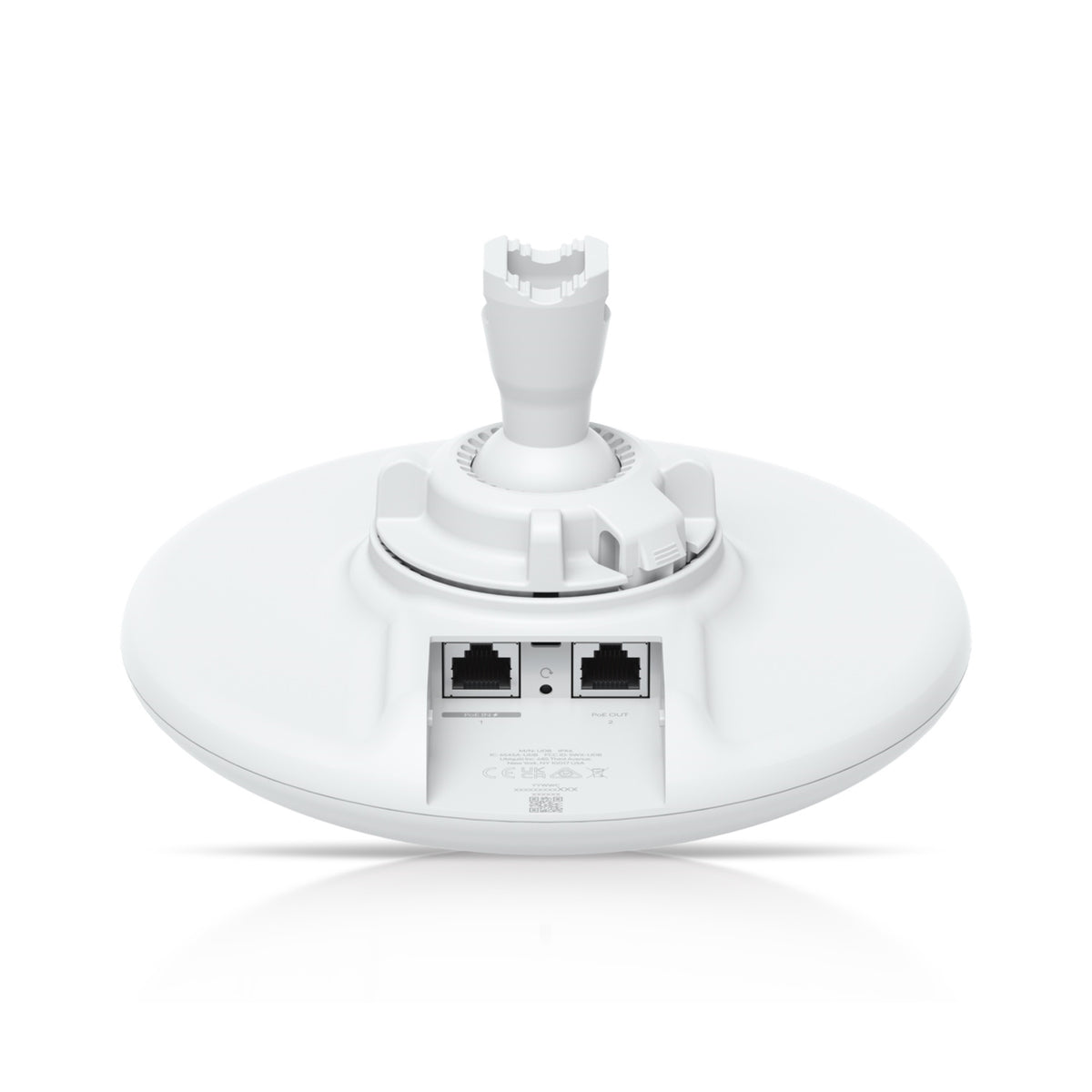

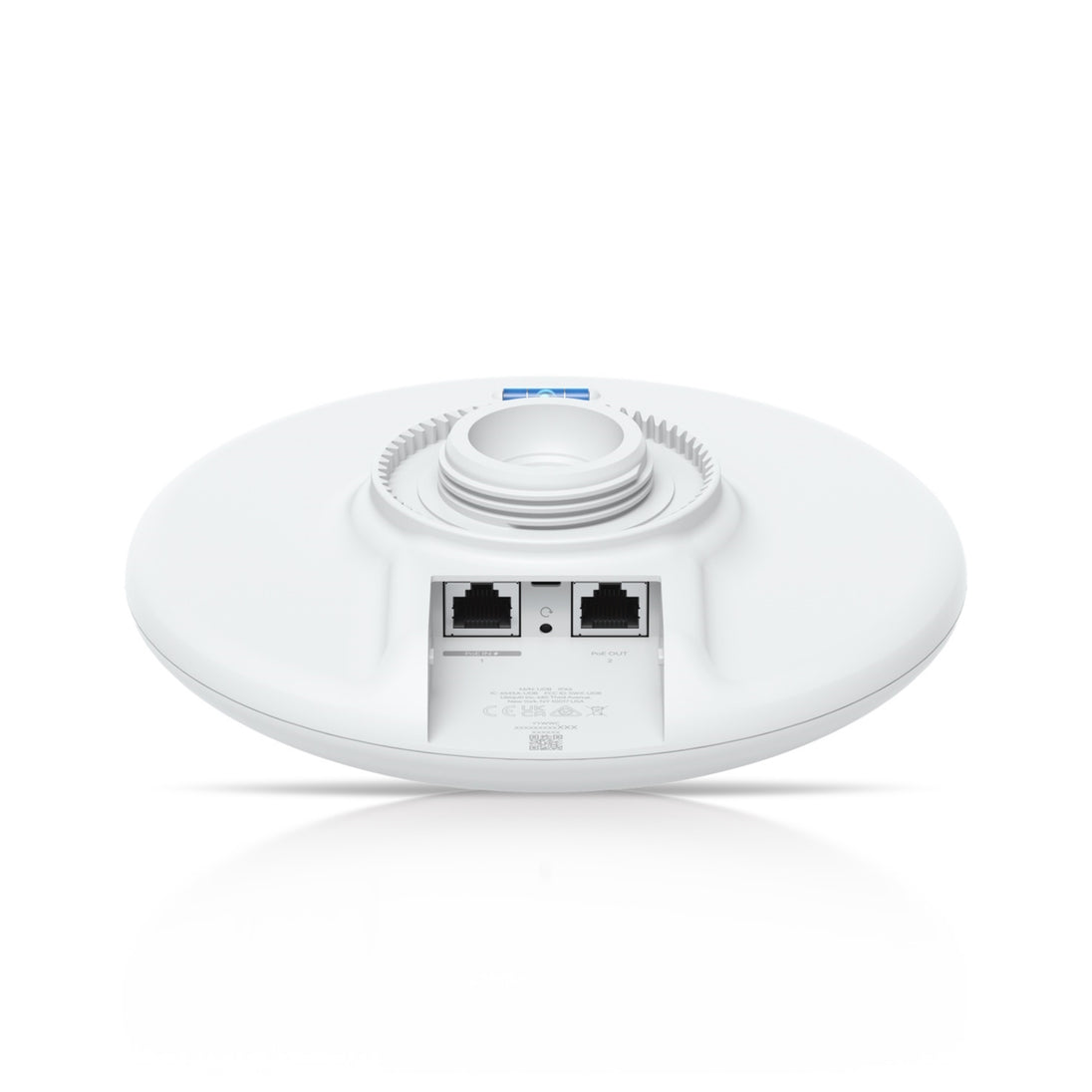

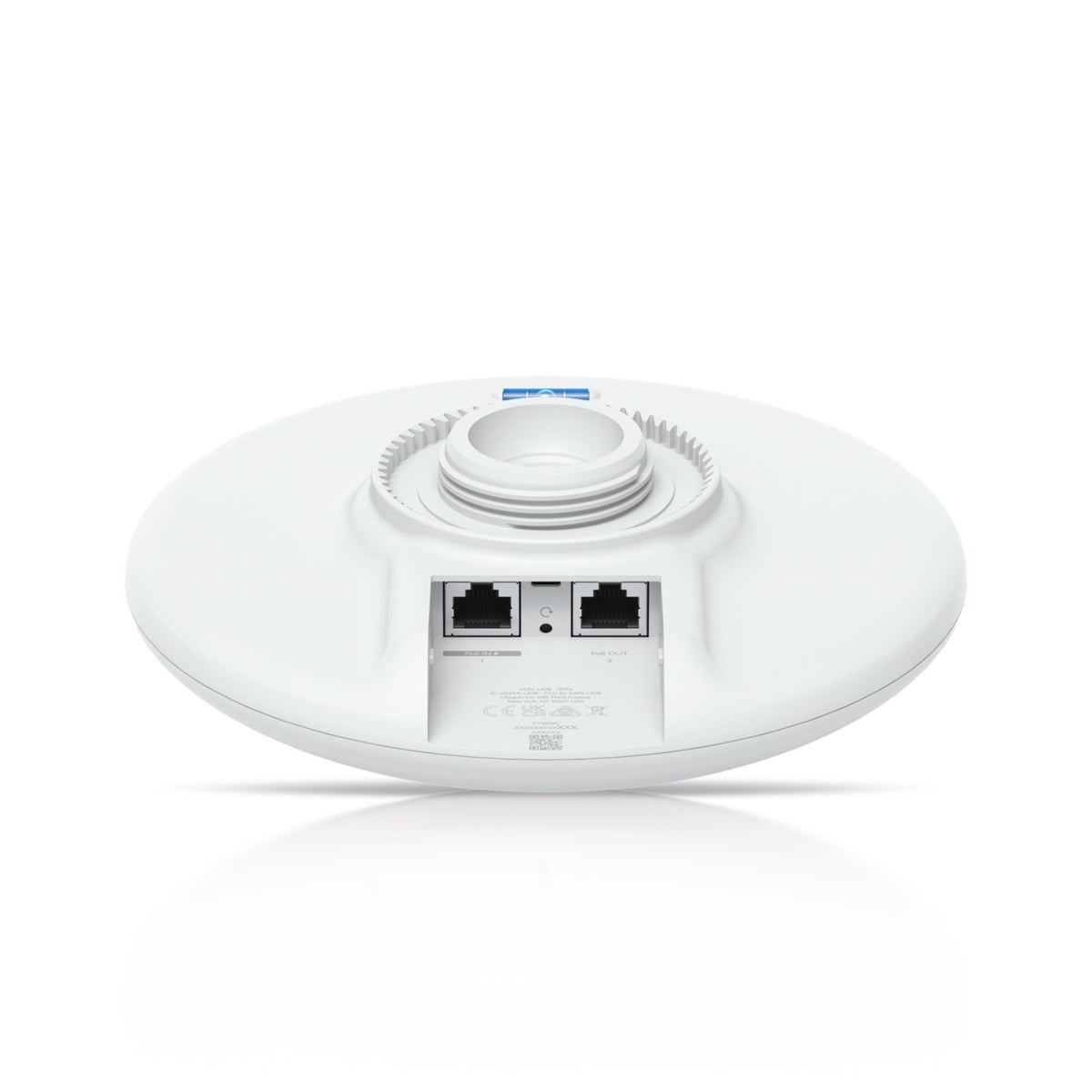

| Networking Interface | (2) GbE RJ45 ports |
| Antennas | Internal |
| Management | (1) PoE in (PoE output not used) (1) Passive PoE output |
| Wind Loading | 69 N at 200 km/h (15.5 lbf at 125 mph) |
| Weight | Device: 431 g (0.95 lb) With mount: 515 g (1.1 lb) |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Enclosure Material | UV-resistant polycarbonate |
| Pole Mount Diameter | 0.8–2.1" (20–53.1 mm) |
| Button | (1) Factory-reset |

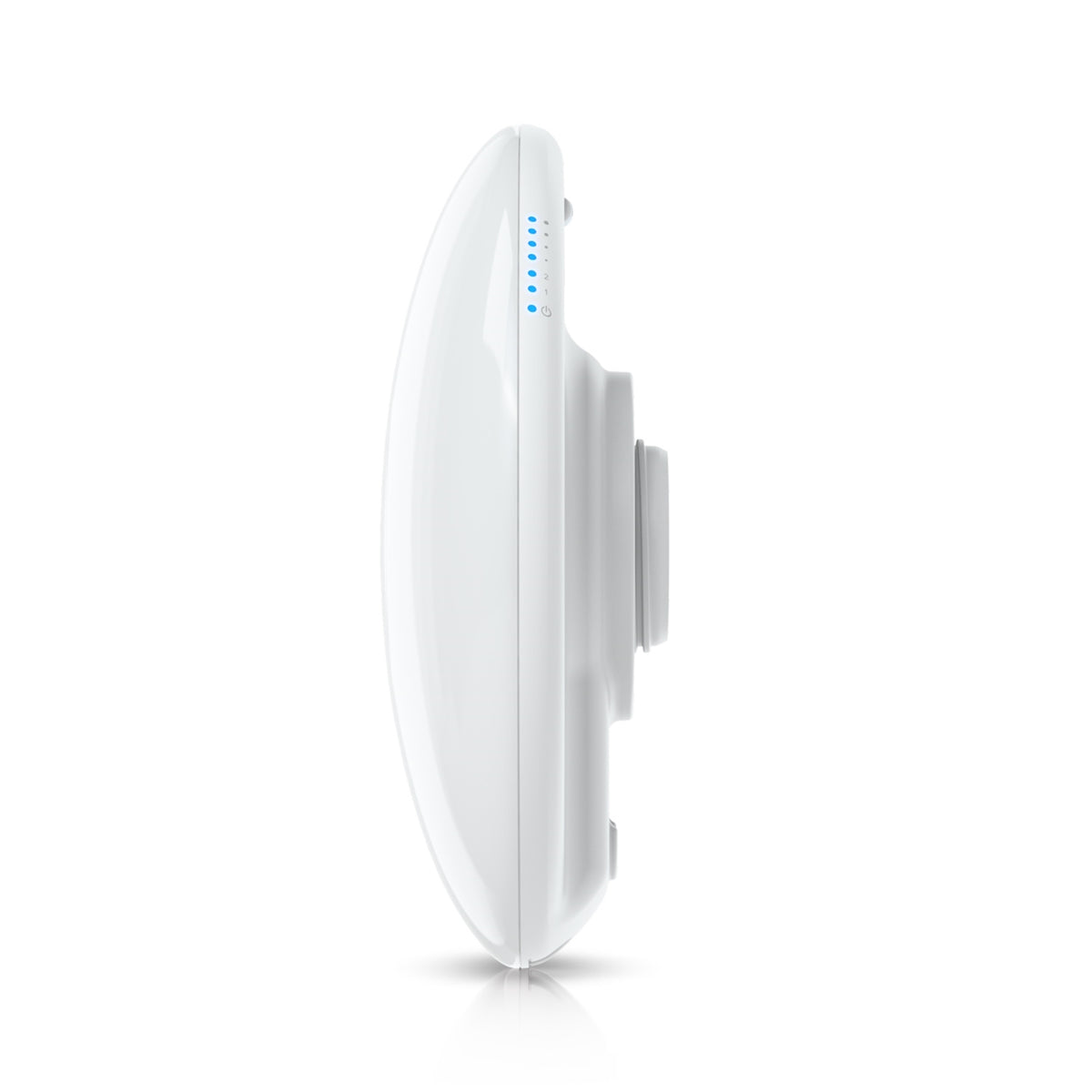

| System LEDs | Power, Ethernet, (4) signal strength |
| Channel Bandwidth | 20/40/80 (MHz) |
| Certifications | CE, FCC, IC |
-
