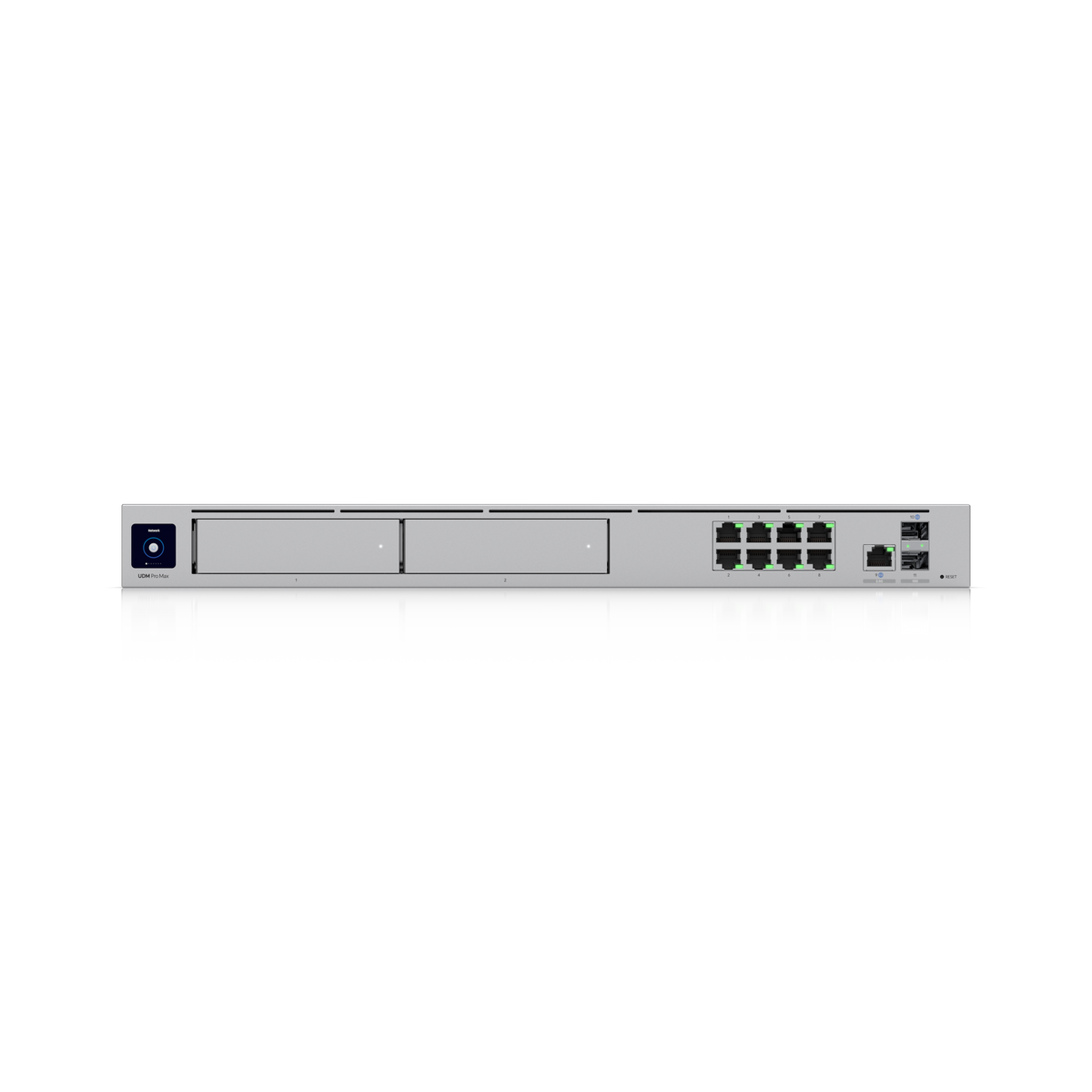

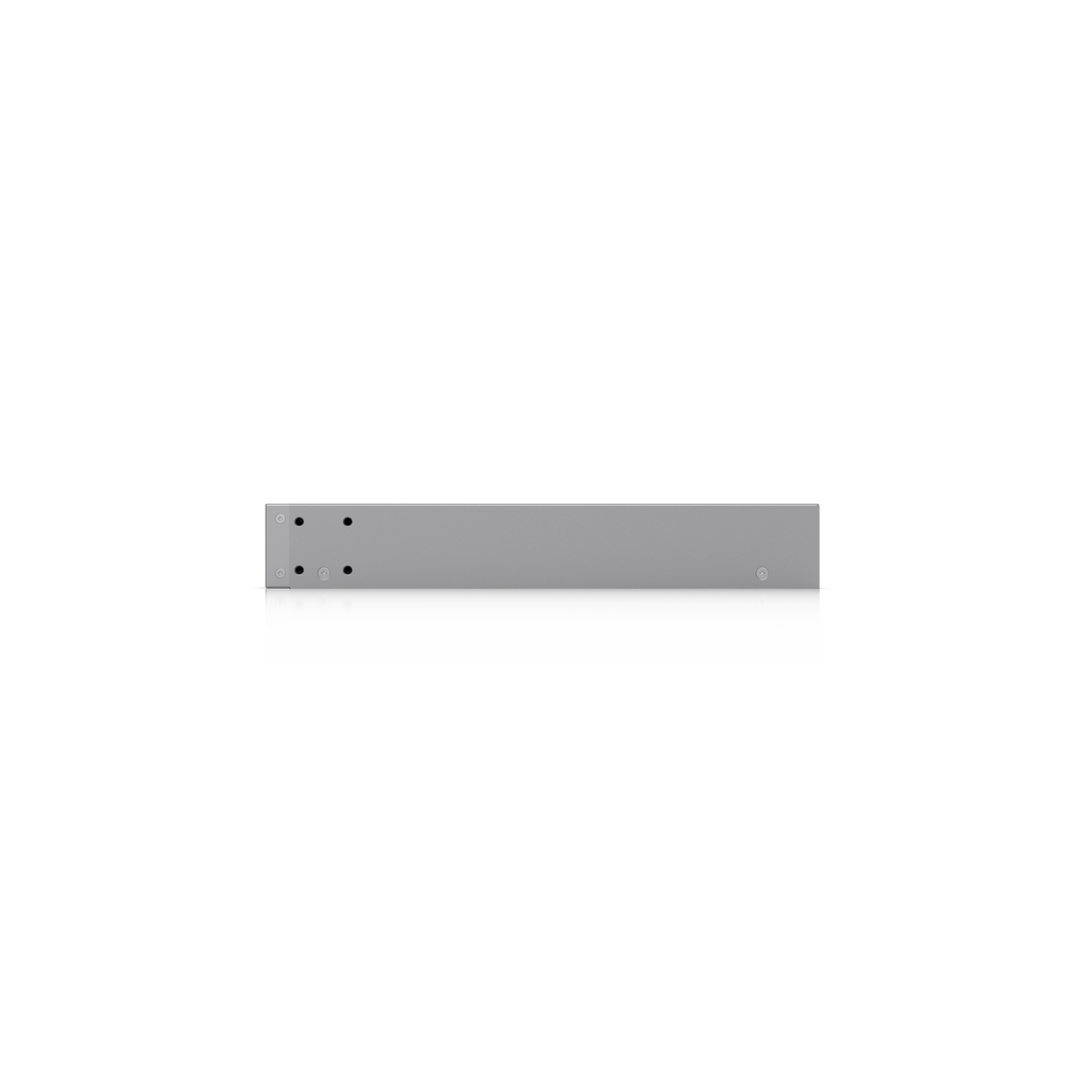

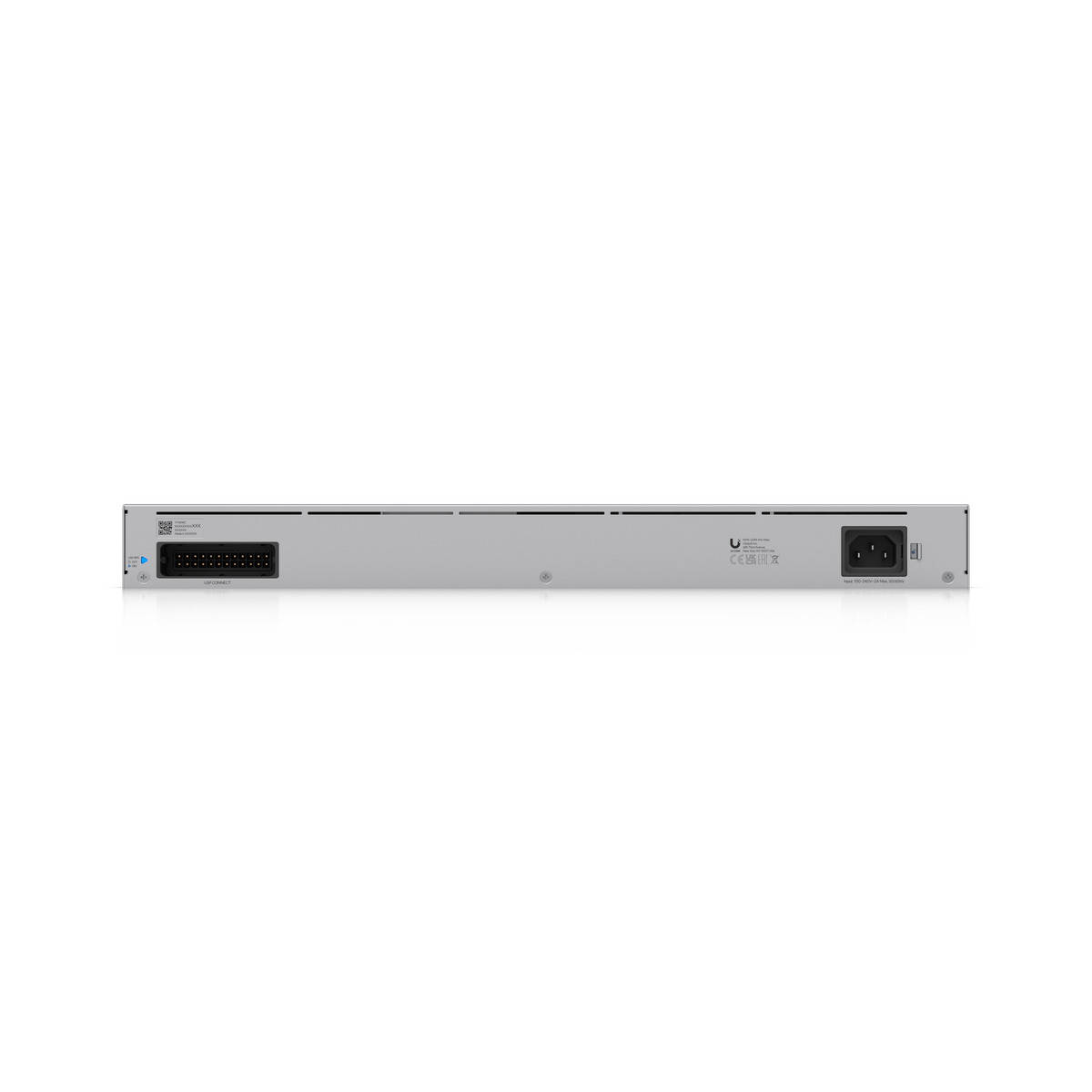

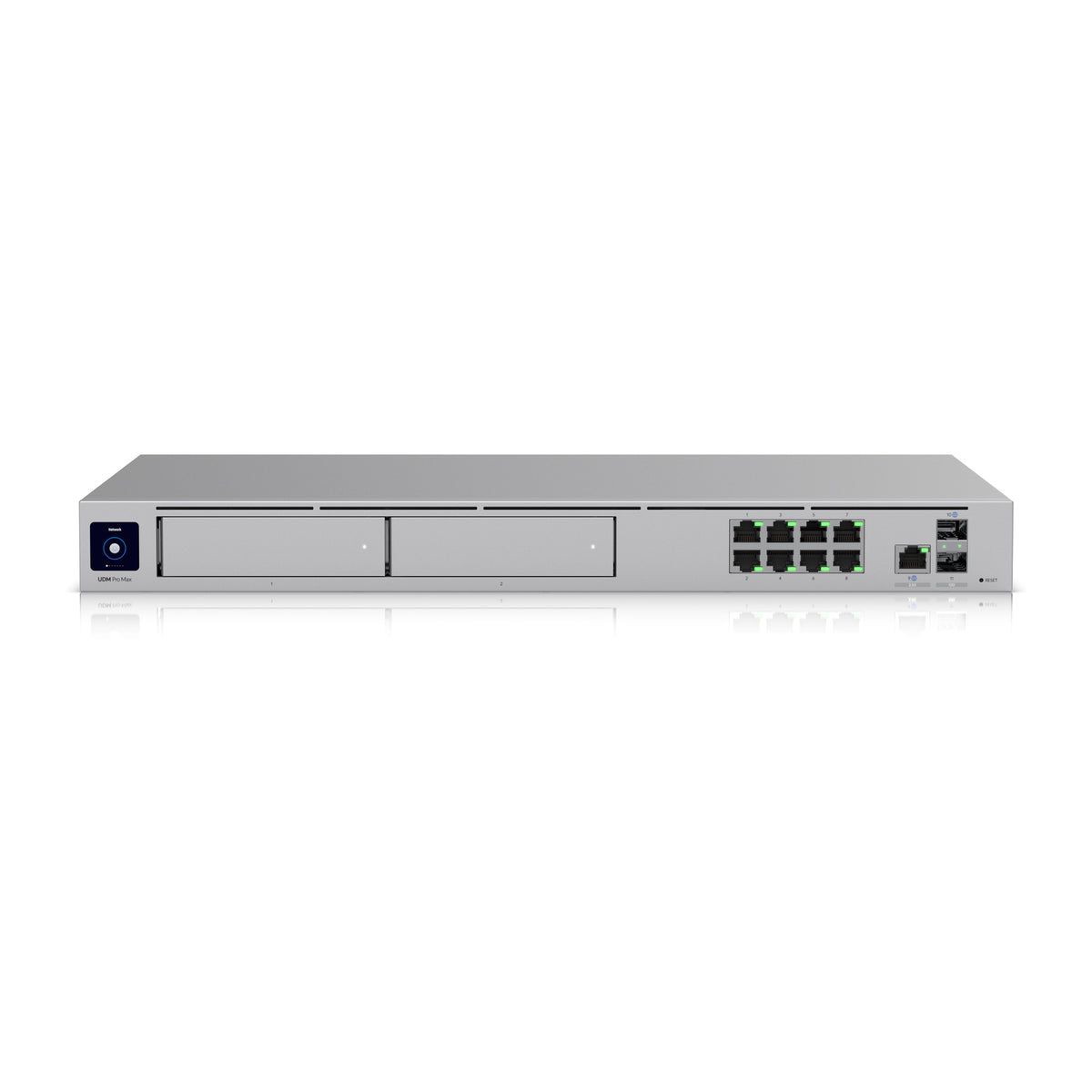

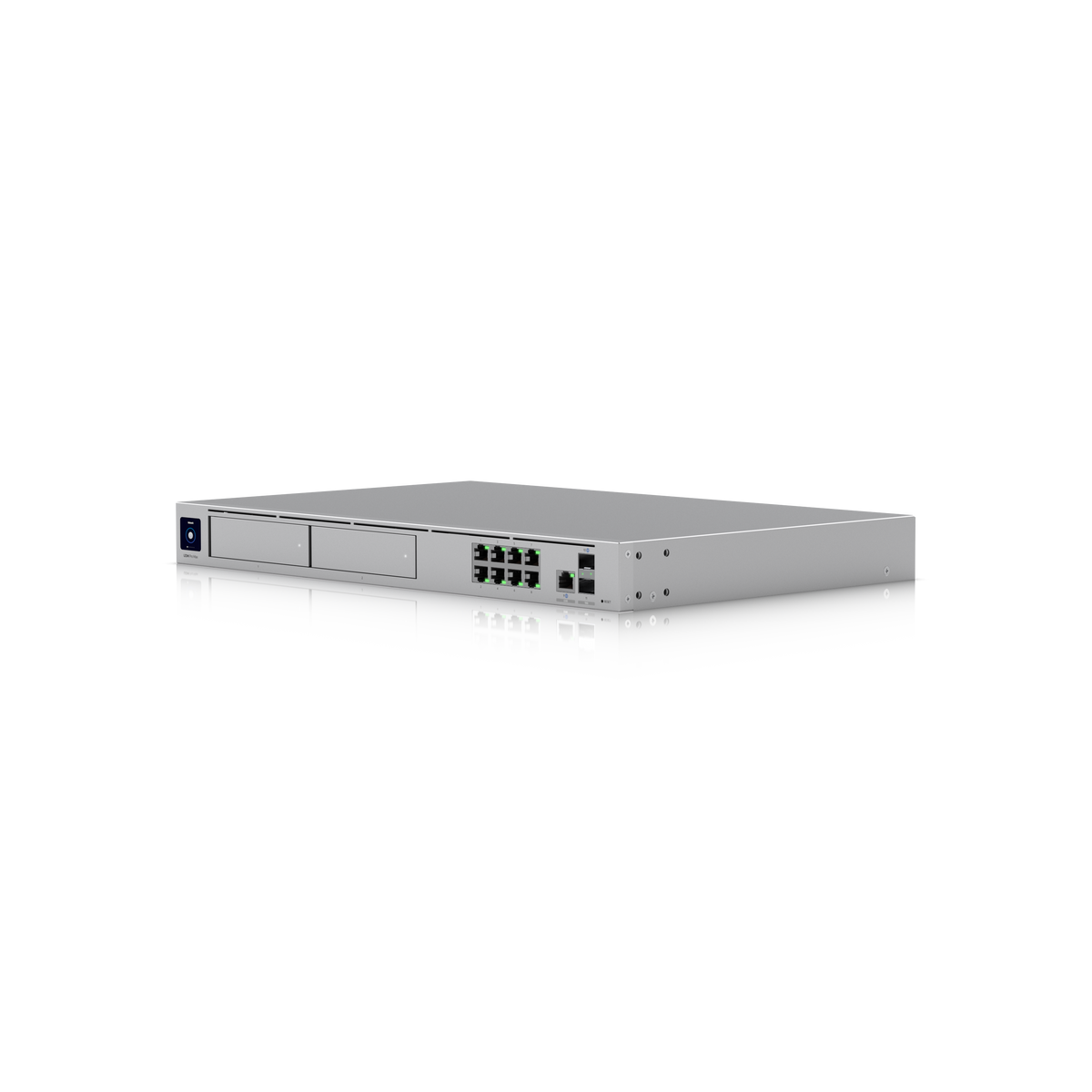

The Ubiquiti UniFi Dream Machine Pro Max is a rack-mount cloud gateway for businesses, schools and other sites managing a large UniFi network. It combines network management, routing, security and UniFi Protect recording in one 1U appliance.
10G Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage.
Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
Includes full UniFi application suite for device management
5 Gbps routing with IDS/IPS
(1) 10G SFP+, (8) GbE RJ45 LAN ports
(1) 10G SFP+, (1) 2.5 GbE RJ45 WAN ports
(2) 3.5" NVR HDD bays with RAID data protection
Built-in 128 GB SSD for NVR detection recordings
UniFi Power Backup ready
1.3" touchscreen
Specification
| Specification | Detail |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Weight | 4.7kg |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| Processor | Quad-core ARM Cortex-A57 at 2.0 GHz |
| System Memory | 8 GB DDR4 |
| Onboard Storage | 32 GB eMMC Integrated 128 GB SSD |
| Management Interface | Ethernet Bluetooth |
| Networking Interface | LAN: (8) GbE RJ45 ports (1) 10G SFP+ port WAN: (1) 2.5 GbE RJ45 port (1) 10G SFP+ port |
| IDS/IPS Throughput | 5 Gbps* *Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation. |
| Power Method | (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A |
| Power Supply | AC/DC, internal, 100W |
| Supported Voltage Range | 100—240V AC |
| Max Power Consumption | 100W |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next Generation Security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced Networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
-
