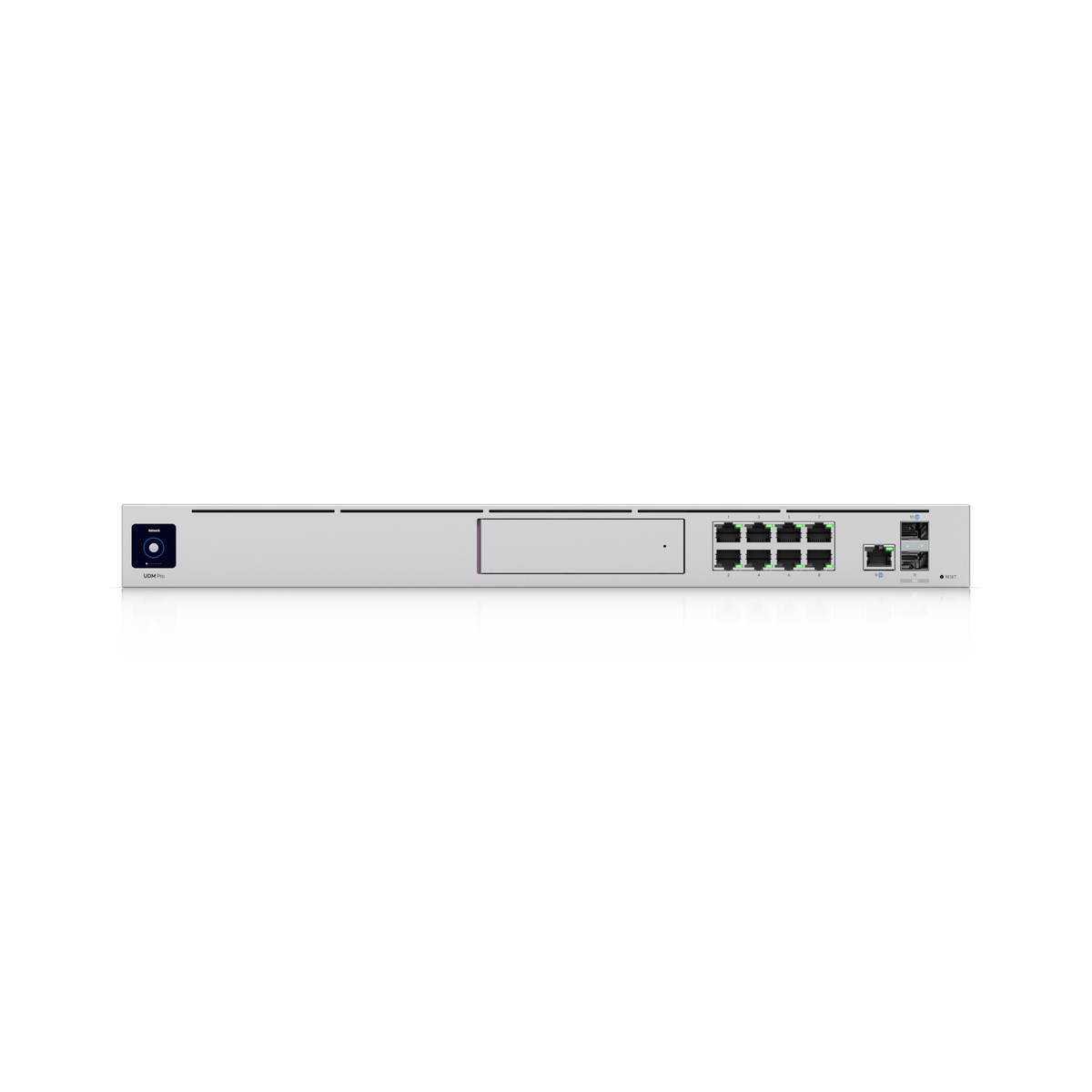

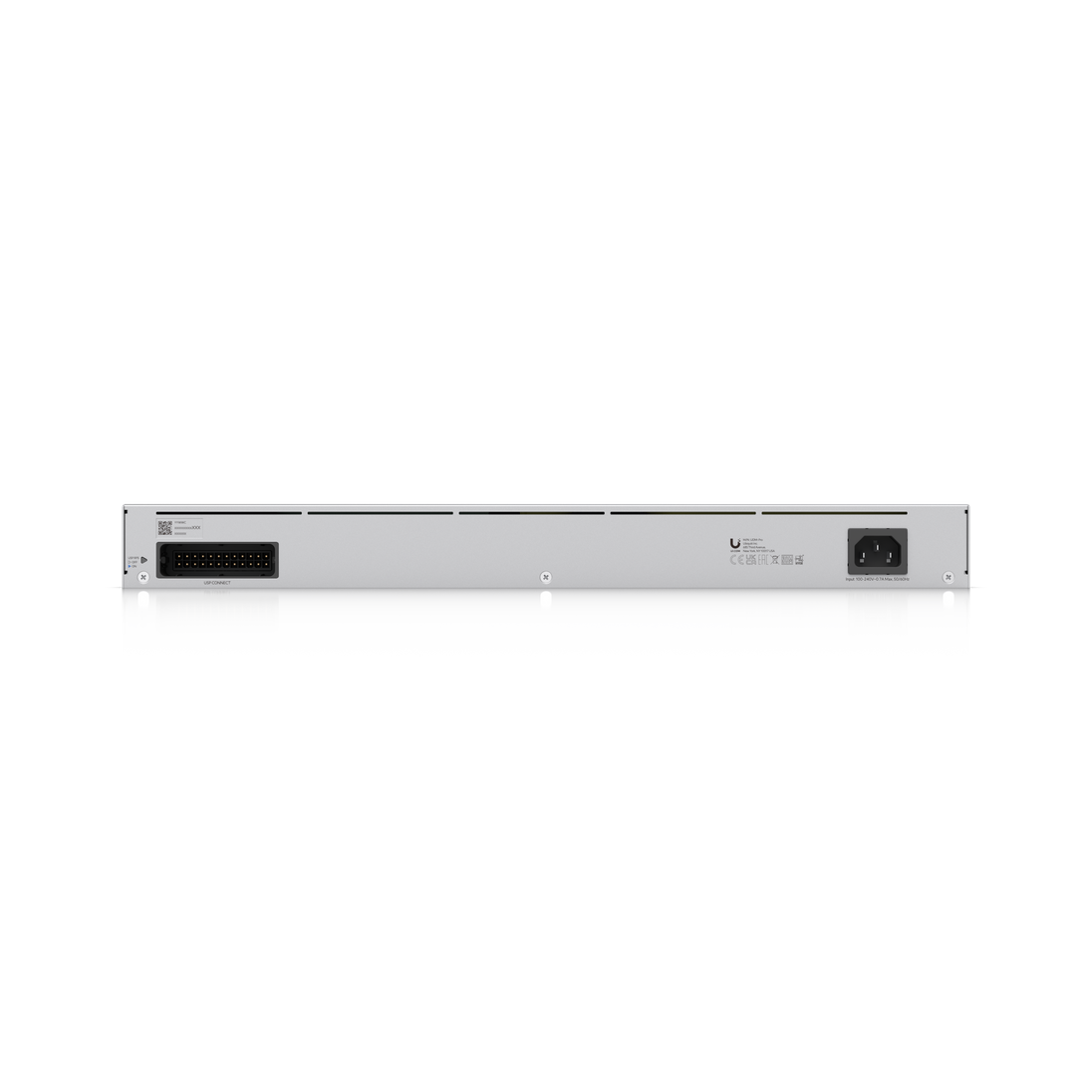

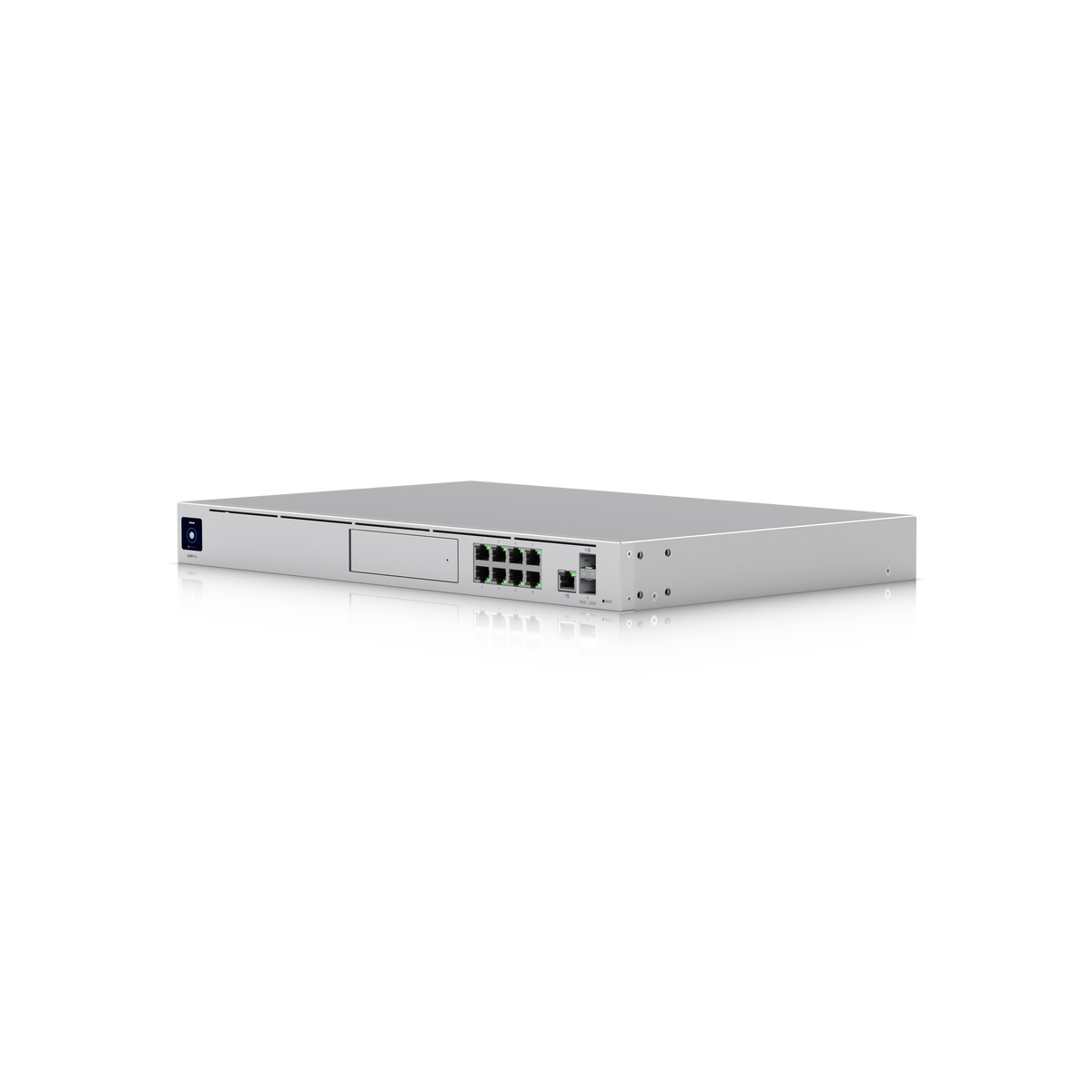

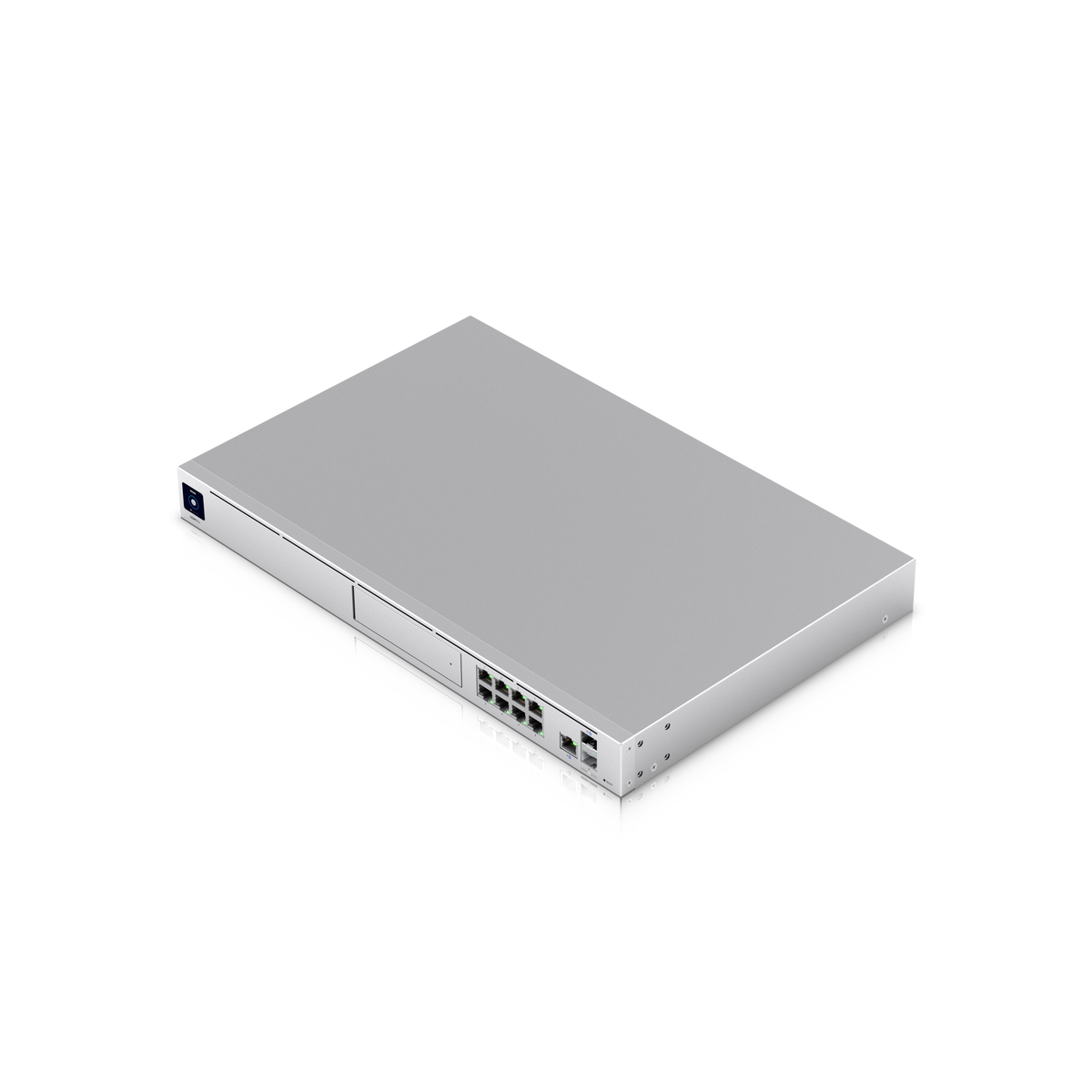

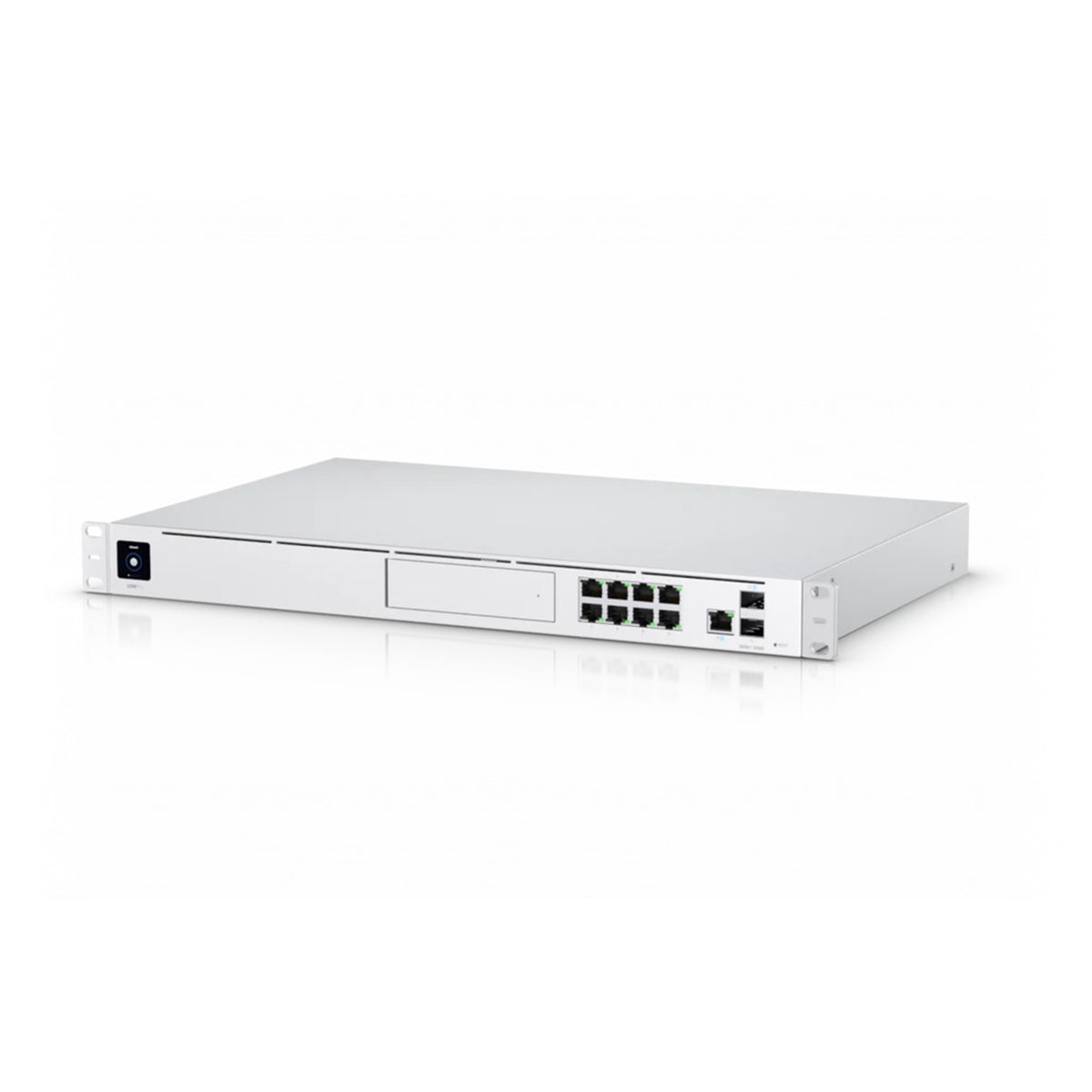

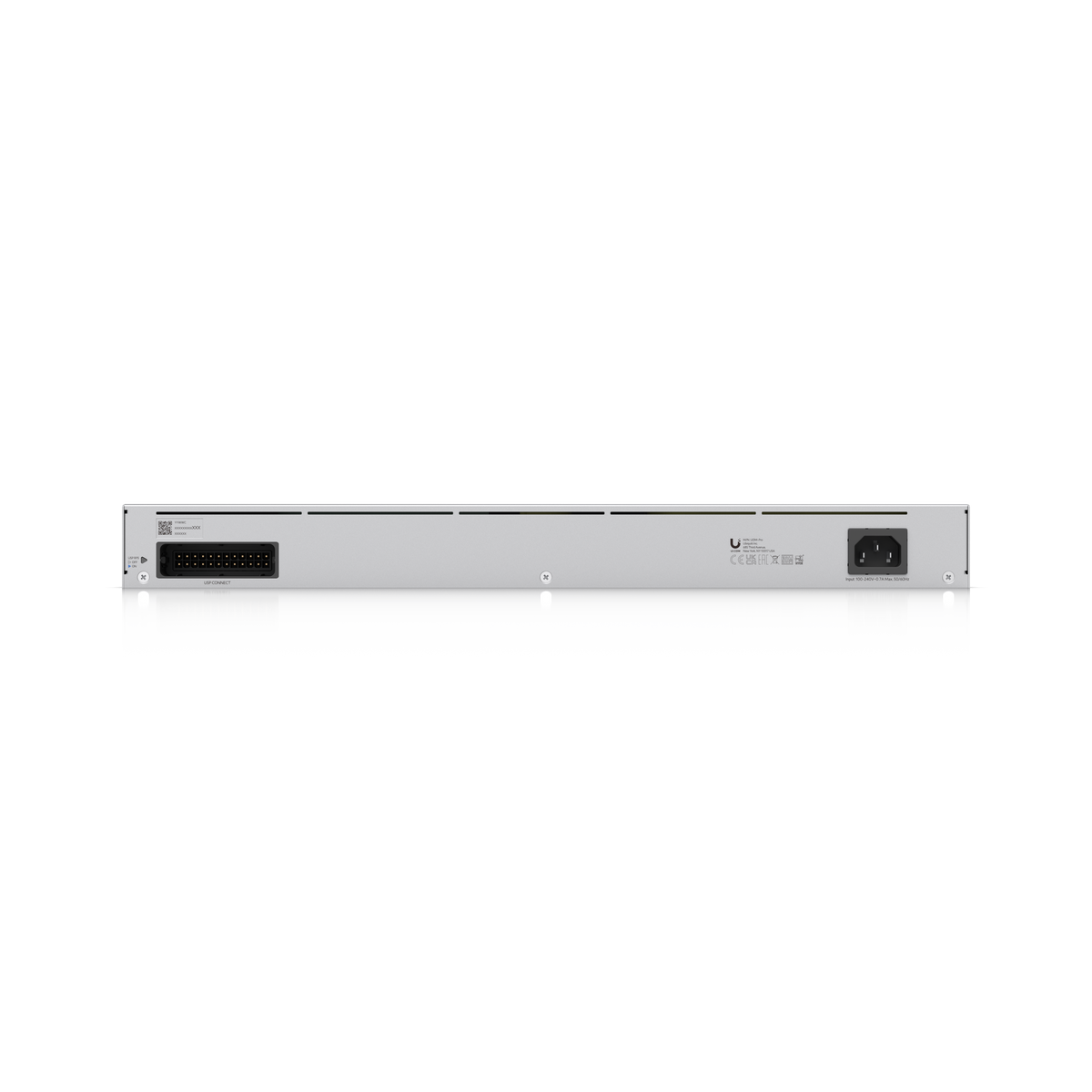

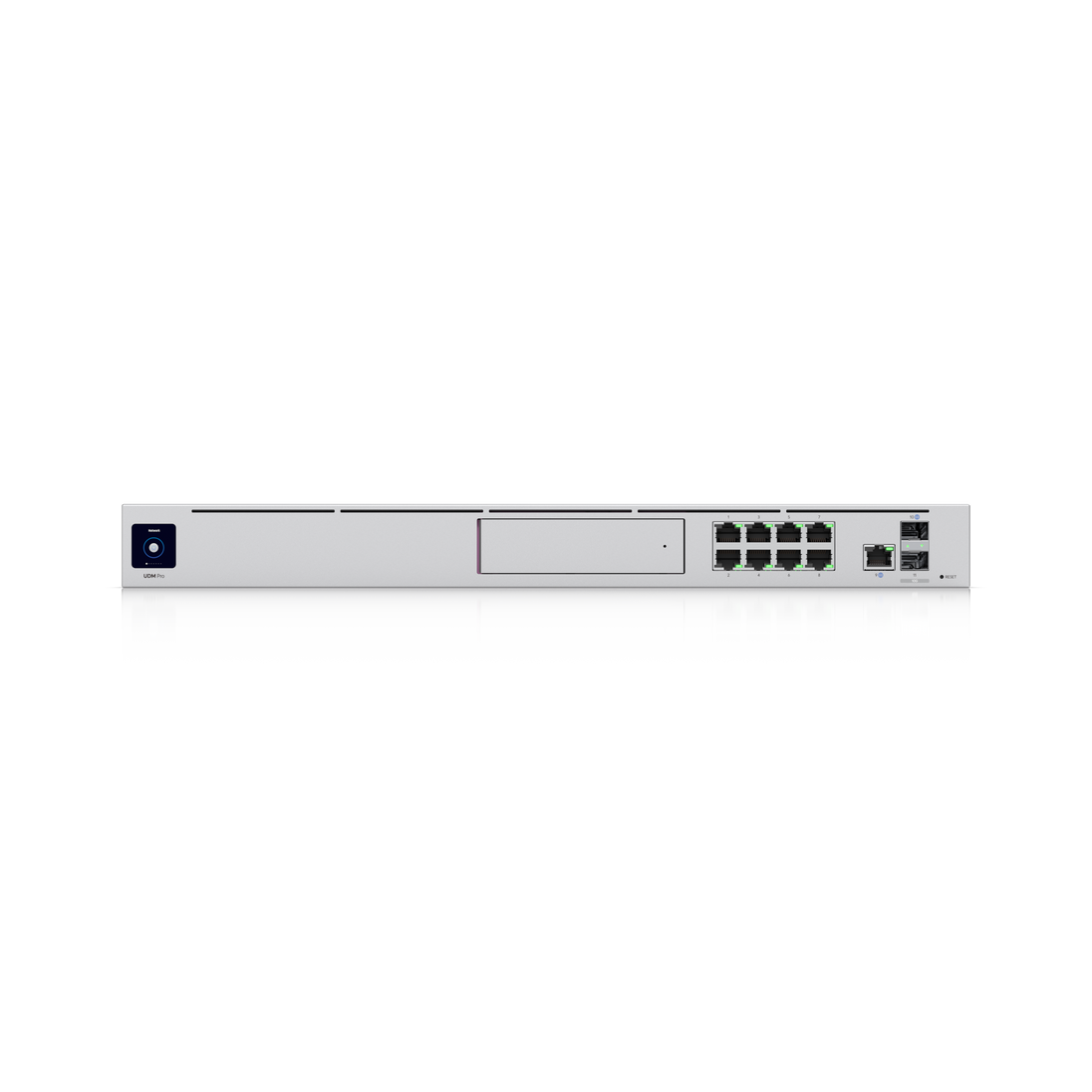

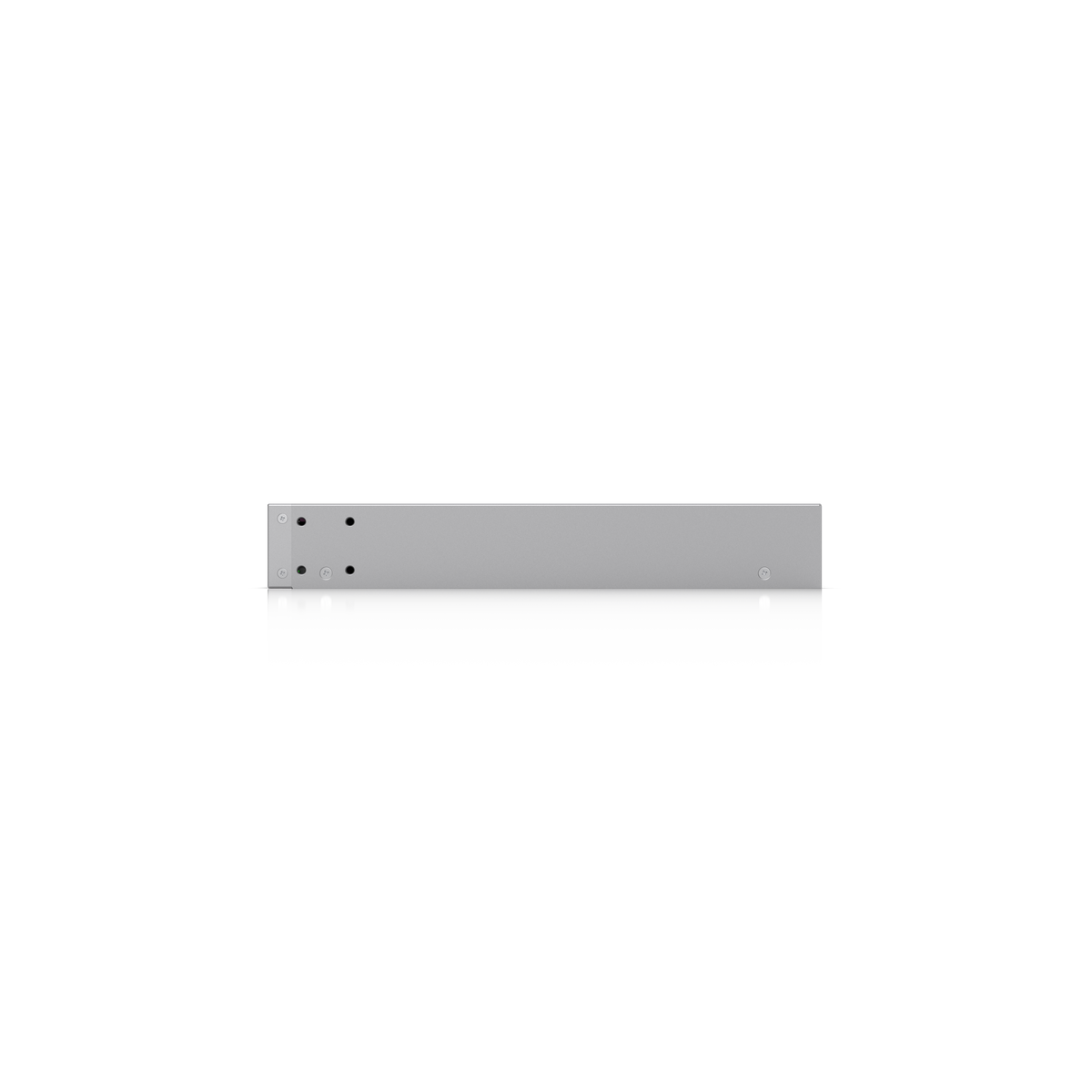

The Ubiquiti UniFi Dream Machine Pro is an all-in-one network appliance for small and medium-sized businesses, and for larger networks that need centralised management. It brings UniFi network management, a security gateway, an eight-port switch and video surveillance recording together in a 1U rack unit.
UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.
All-in-one 1U rack appliance for small to medium sized businesses
Combines new UniFi OS with 8-port switch and security gateway
UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD support
8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+ LAN
Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities
Powered by fast 1.7 GHz quad-core processor
Specification
| Specification | Detail |
|---|---|
| Dimensions | Width x Height x Depth: 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24") Weight: 3.90 kg (8.60 lb) With Mounting Kits: 3.99 kg (8.80 lb) |
| Package Contents | (2) Rackmount Brackets (8) Bracket Screws (4) Mounting Screws (4) Cage Nuts (1) Security Screw (4) 2.5" HDD Screws Power Cord (4) Rubber Feet |
| Interfaces | (8) 10/100/1000 RJ45 LAN Ports (1) 10/100/1000 RJ45 WAN Port (1) 1/10G SFP+ LAN Port (1) 1/10G SFP+ WAN Port |
| Management Interfaces | Ethernet In-Band (1) Bluetooth BLE |
| Technical Information | IDS/IPS Throughput: 3.5 Gbps * Processor: Quad ARM Cortex-A57 Core at 1.7 GHz System Memory: 4 GB DDR4 On-Board Flash Storage: 16 GB eMMC * Measured with iPerf3. |
| Environment | Operating Temperature: -10° to 40° C (14° to 104° F) Operating Humidity: 5 to 95% Noncondensing |
| Power | Max. Power Consumption: 33W Voltage Range: 100 to 240VAC Power Method: (1) Universal AC Input, 100-240VAC, 50/60 Hz Redundant Power: (1) RPS DC Input Power Supply: Internal 50W/12V ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV |
-
