Ubiquiti

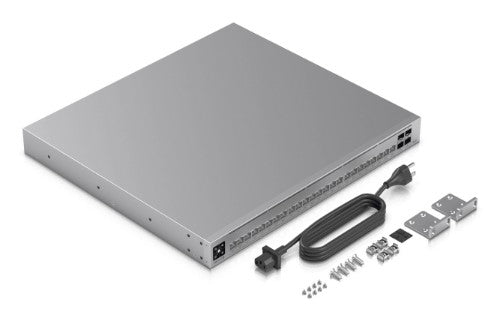

Ubiquiti UniFi Pro HD 24 PoE Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Grey

SKU USW-Pro-HD-24-PoE
£1,251.72
£812.49
£1,251.72
£812.49
Excluding taxes
230 Gbps, (24) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-), 56W, 22x 2.5/1 GbE, 100/10 MbE RJ45, 2x 10/5/2.5/1 GbE, 100 MbE RJ45, 4x 10/1G SFP+, SGCC steel, 442.4 x 400 x 44 mm

Key Features

  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
  • (22) 2.5 GbE, (2) 10 GbE PoE++ ports
  • (4) 10G SFP+ ports
  • DC power backup ready**
  • 600W total PoE availability

Description

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

Specifications

Management features
Reset button Yes
Switch type Managed
Quality of Service (QoS) support Yes
Multicast support Yes
Switch layer L2/L3
Ports & interfaces
SFP+ module slots quantity 4
Basic switching RJ-45 Ethernet ports quantity 22
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Power connector AC/DC
2.5G Ethernet (copper) ports quantity 22
10G Ethernet (copper) ports quantity 2
Network
Networking standards IEEE 802.1x
VLAN support Yes
Rate limiting Yes
Port mirroring Yes
Number of VLANs 1000
Flow control support Yes
Broadcast storm control Yes
10G support Yes
Virtual LAN features Voice VLAN
IPv4 routes 12000
IGMP snooping Yes
Data transmission
Packet buffer memory 2 MB
MAC address table 32000 entries
Switching capacity 230 Gbit/s
Jumbo frames support Yes
Static route Yes
Forwarding rate 171 Mpps
Throughput 115 Gbit/s
Number of VLANs 1000
Security
Loop protection Yes
IGMP snooping Yes
DHCP features DHCP guarding, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast support Yes
Design
Reset button Yes
Display type LCM
Form factor 1U
Product colour Grey
Stackable Yes
LED indicators Link, Speed, Status
Housing material SGCC
Rack mounting Yes
Power
Power consumption (max) 60 W
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Redundant power supply (RPS) support Yes
Power source AC/DC/PoE
Power connector AC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 15.4 W
Total Power over Ethernet (PoE) budget 600 W
Power over Ethernet (PoE) Yes
Power over Ethernet 4PPoE (PoE++) ports quantity 24
Operational conditions
Operating temperature (T-T) -5 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Virtual LAN features
VLAN support Yes
Number of VLANs 1000
Virtual LAN features Voice VLAN
Weight & dimensions
Width 442.4 mm
Depth 400 mm
Height 44 mm
Weight 6.2 kg
Packaging content
Rack mount kit Yes
Cables included Power
Performance
Packet buffer memory 2 MB
Stackable Yes
Technical details
Form factor 1U
Product colour Grey
Stackable Yes
Housing material SGCC
Rack mounting Yes
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Memory
Packet buffer memory 2 MB
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators Link, Speed, Status
Packaging data
Rack mount kit Yes
Cables included Power
