Ubiquiti UniFi Pro Max 24 PoE Network Switch - USW-Pro-Max-24-POE

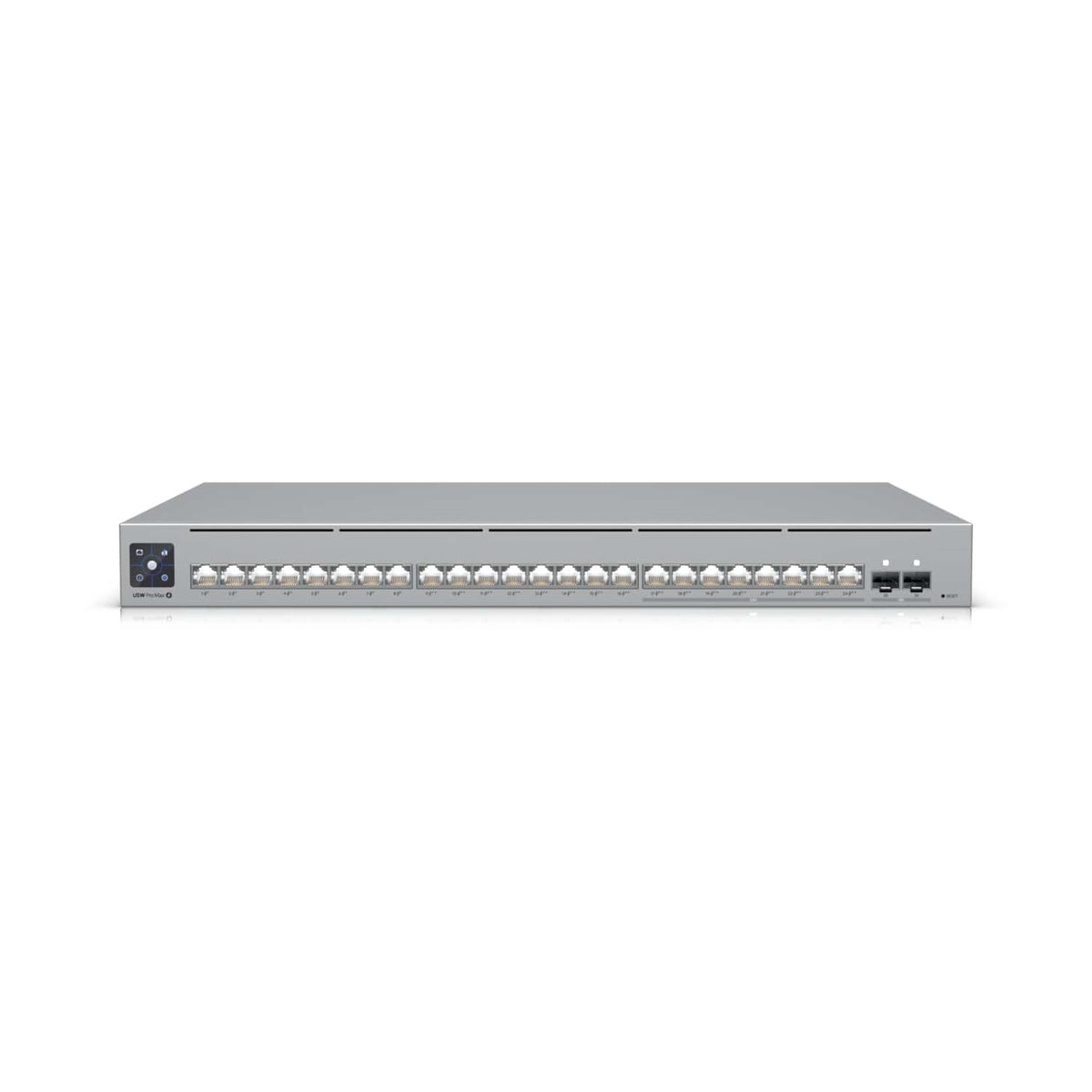

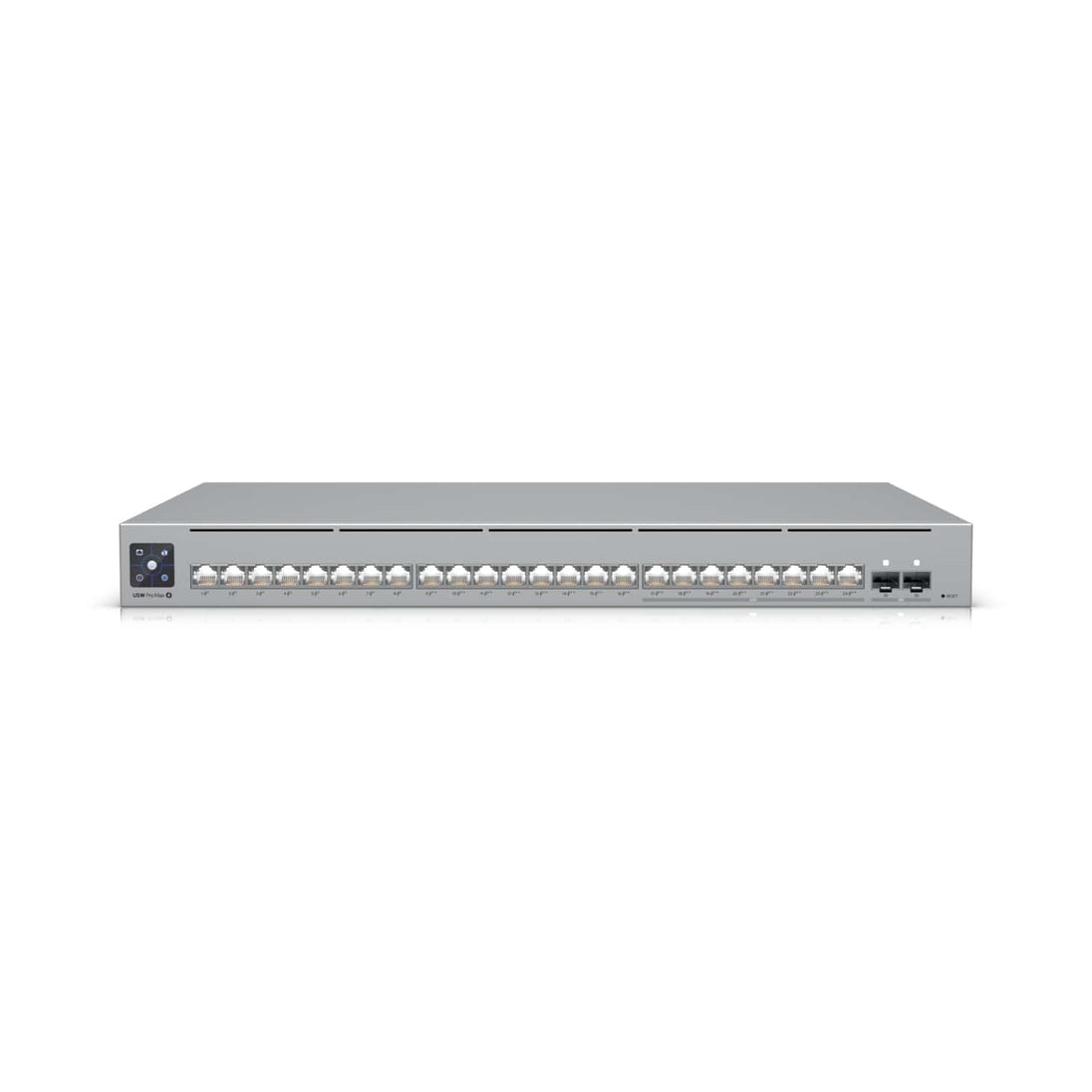

Ubiquiti UniFi USW-Pro-Max-24-POE Network Switch

y Features
24-port switch
8 x 2.5 GbE PoE++ ports
16 x GbE ports including (8) PoE+ and (8) PoE++
2 x 10G SFP+ ports
Layer 3
Etherlighting ports that illuminate
DC power backup ready
400W total PoE availability

The USW-Pro-Max-24-PoE is a cutting-edge Layer 3 Etherlighting switch, designed for high-power PoE++ output. This 24-port switch is an exceptional blend of performance and innovation, suitable for demanding network environments.

USW-Pro-Max-24-PoE features Etherlighting Ports that illuminate to indicate port location, speed/link, and native VLAN/network. When paired with UniFi Etherlighting Patch Cables, the brightness is optimised for easier port identification

USW-Pro-Max-24-PoE features 8 x 2.5 GbE PoE++ ports and 16 x GbE ports, which include 8 x PoE+ and 8 x PoE++ ports, allowing for versatile power delivery to connected devices. The switch is also equipped with 2 10G SFP+ ports for high-speed uplinks and data-intensive operations.

The USW-Pro-Max-24-PoE switch offers a total non-blocking throughput of 56 Gbps and a switching capacity of 112 Gbps.

Specifications

Mechanical

Weight &Dimensions
442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)

Enclosure material
SGCC steel

Hardware

Management interface
Ethernet In-Band

Networking interface
(16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports

PoE interface
(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput
56 Gbps

Switching capacity
112 Gbps

Power method
Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input

Power supply
AC/DC, internal, 450W

Supported voltage range
100—240V AC

Max. power consumption
50W (Excluding PoE output)

Total available PoE
400W

Max. PoE wattage per port by PSE
PoE: 15.4W
PoE+: 30W
PoE++: 60W

Voltage range PoE mode
PoE: 44—57V
PoE+: 50—57V

LCM display
(1) 1.3" touchscreen

Button
Factory reset

Operating temperature
-5 to 40° C (23 to 104° F)

Operating humidity
10 to 90% noncondensing

Certifications
CE, FCC, IC

Etherlighting

Ethernet
Locating
Speed/link
Native VLAN/network

SFP+
Locating
Speed/link
Native VLAN/network

LEDs

System
Status
RPSStatus

Box Contents
1 x USW-Pro-Max-24-PoE Switch
4 x rubber feet
1 x UK power cable
1 x Pair rackmount ears
1 x Rackmount accessories
