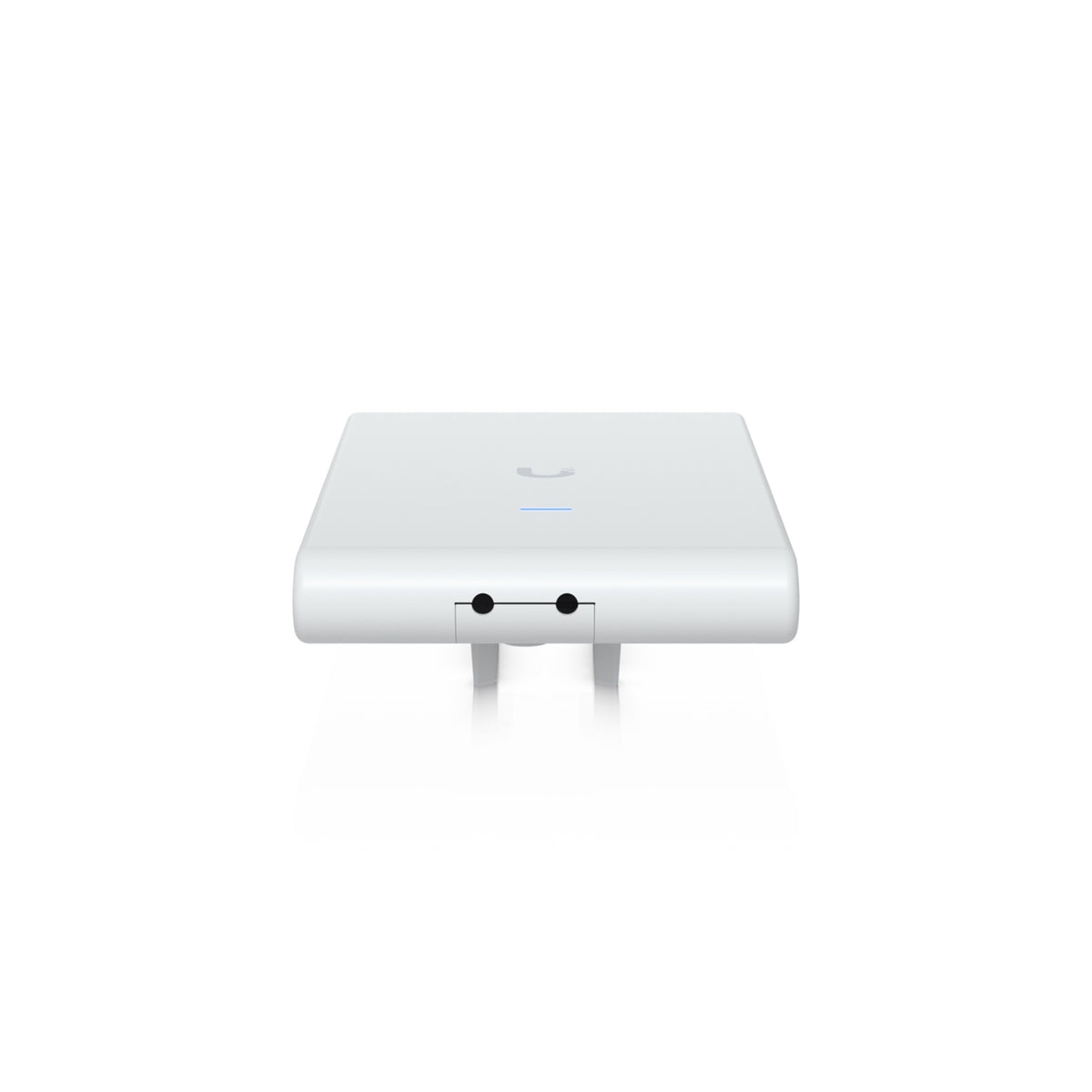

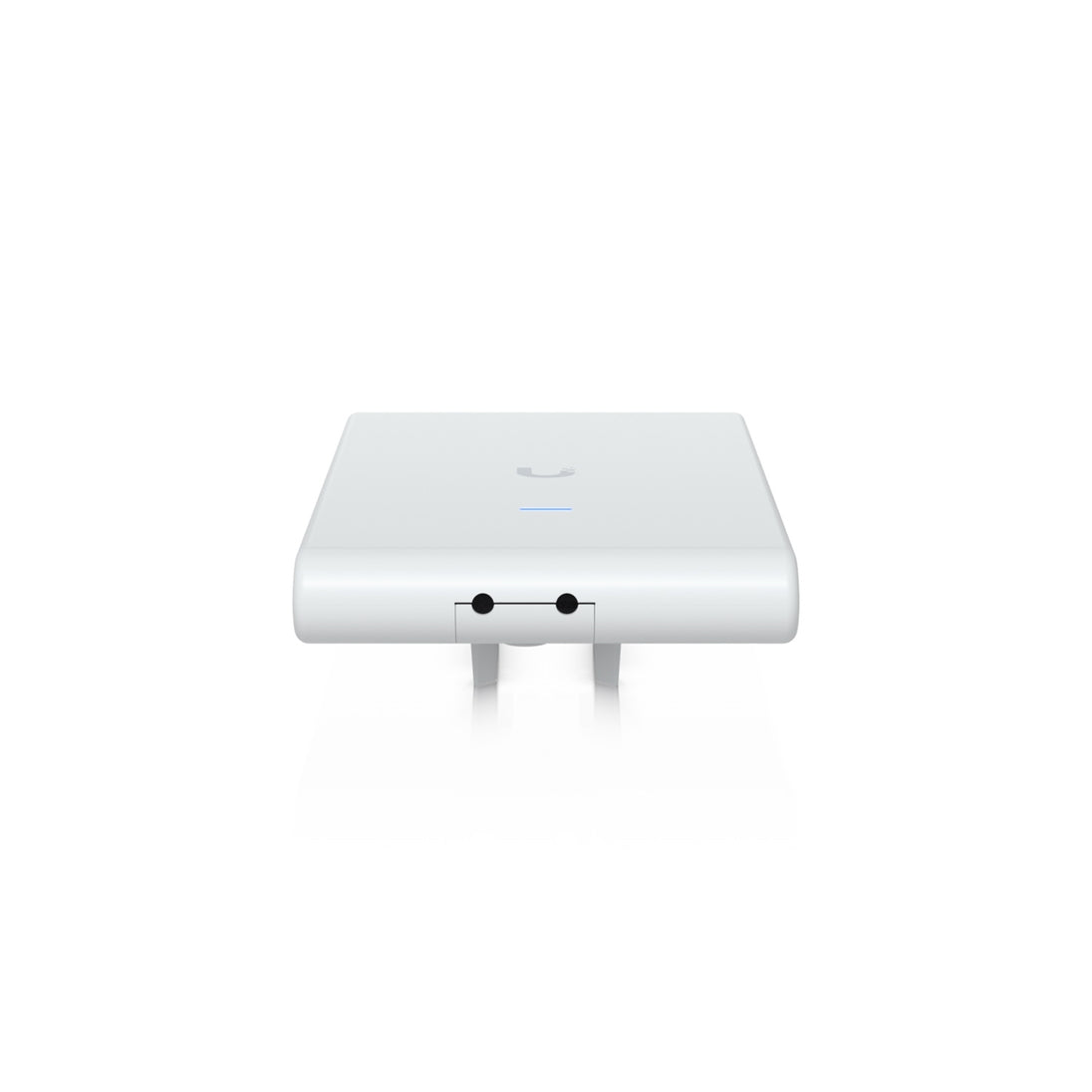

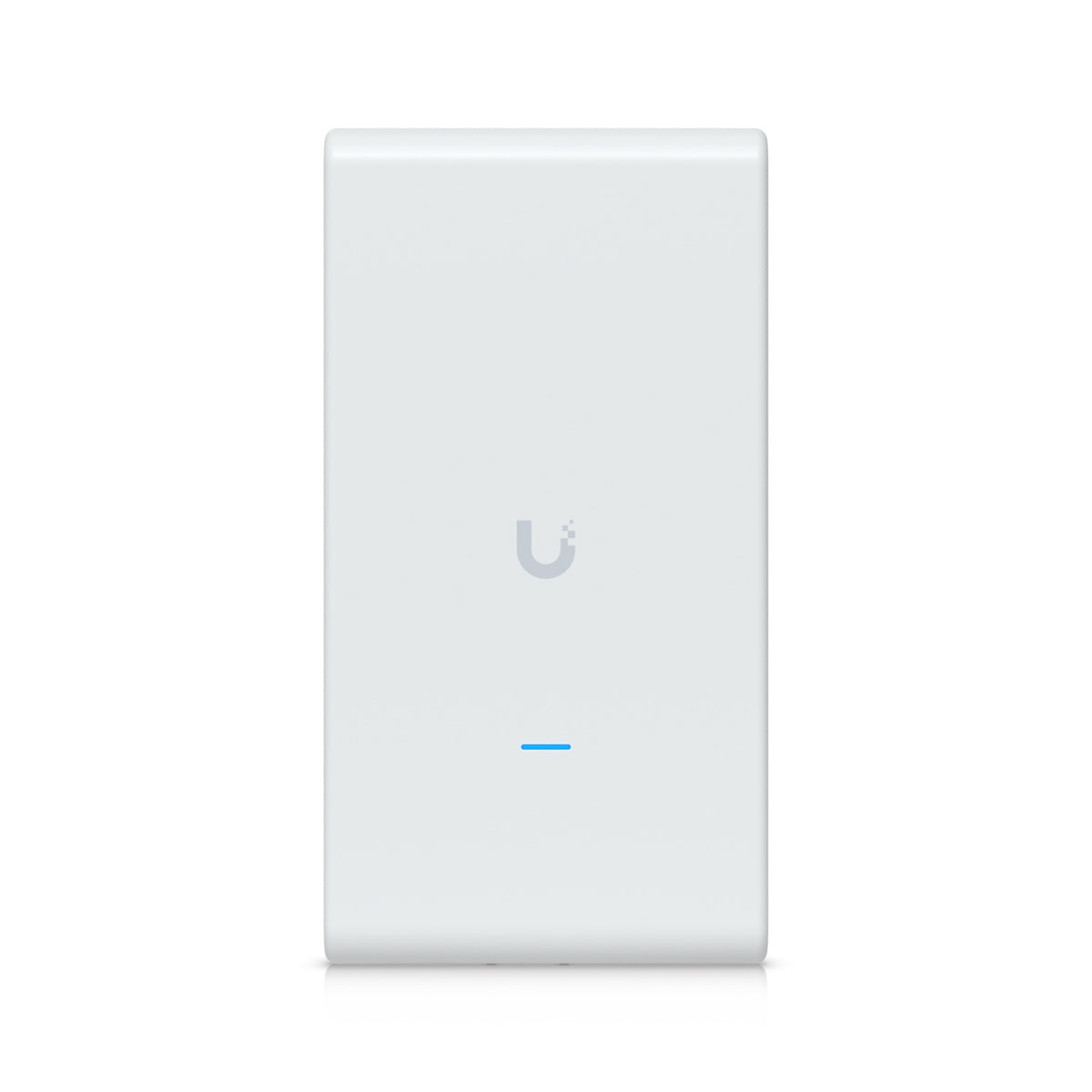

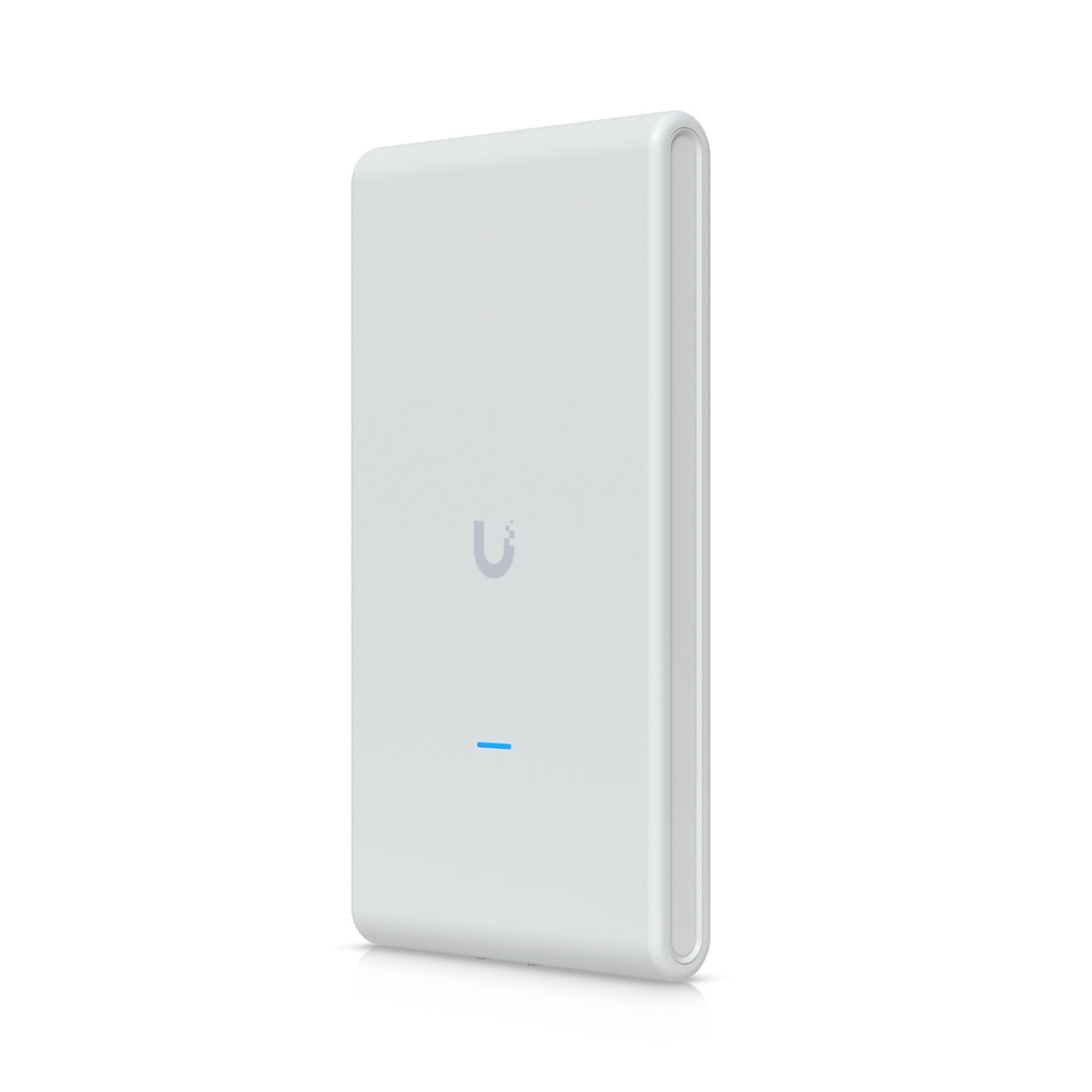

The Ubiquiti UniFi U6 Mesh Pro is an indoor and outdoor Wi-Fi 6 access point for homes, offices and other spaces that need wireless coverage across a wide area. It suits network owners extending a UniFi setup and businesses providing Wi-Fi for staff and guests.
Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
WiFi 6
4 spatial streams
185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
350+ connected devices
Powered using PoE

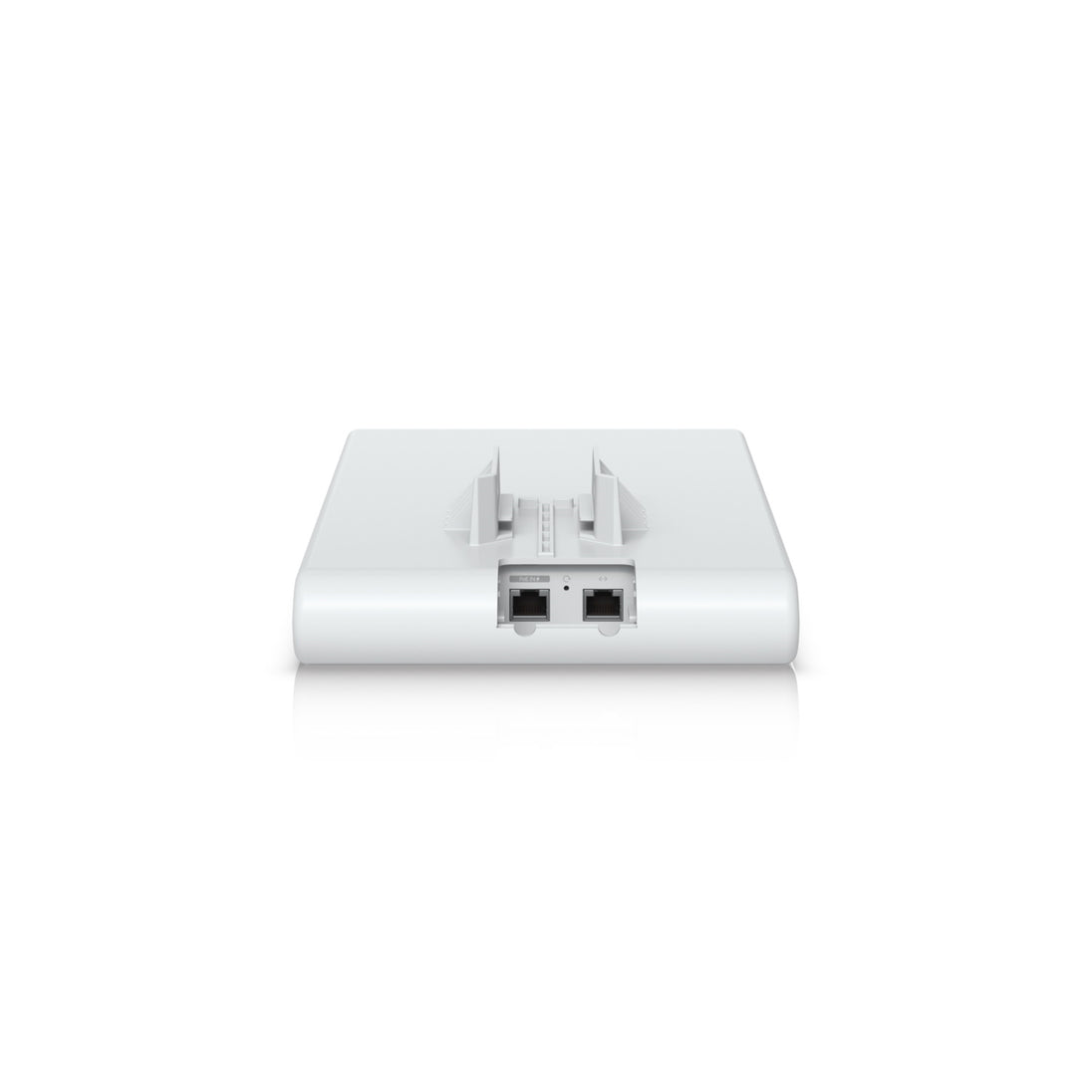

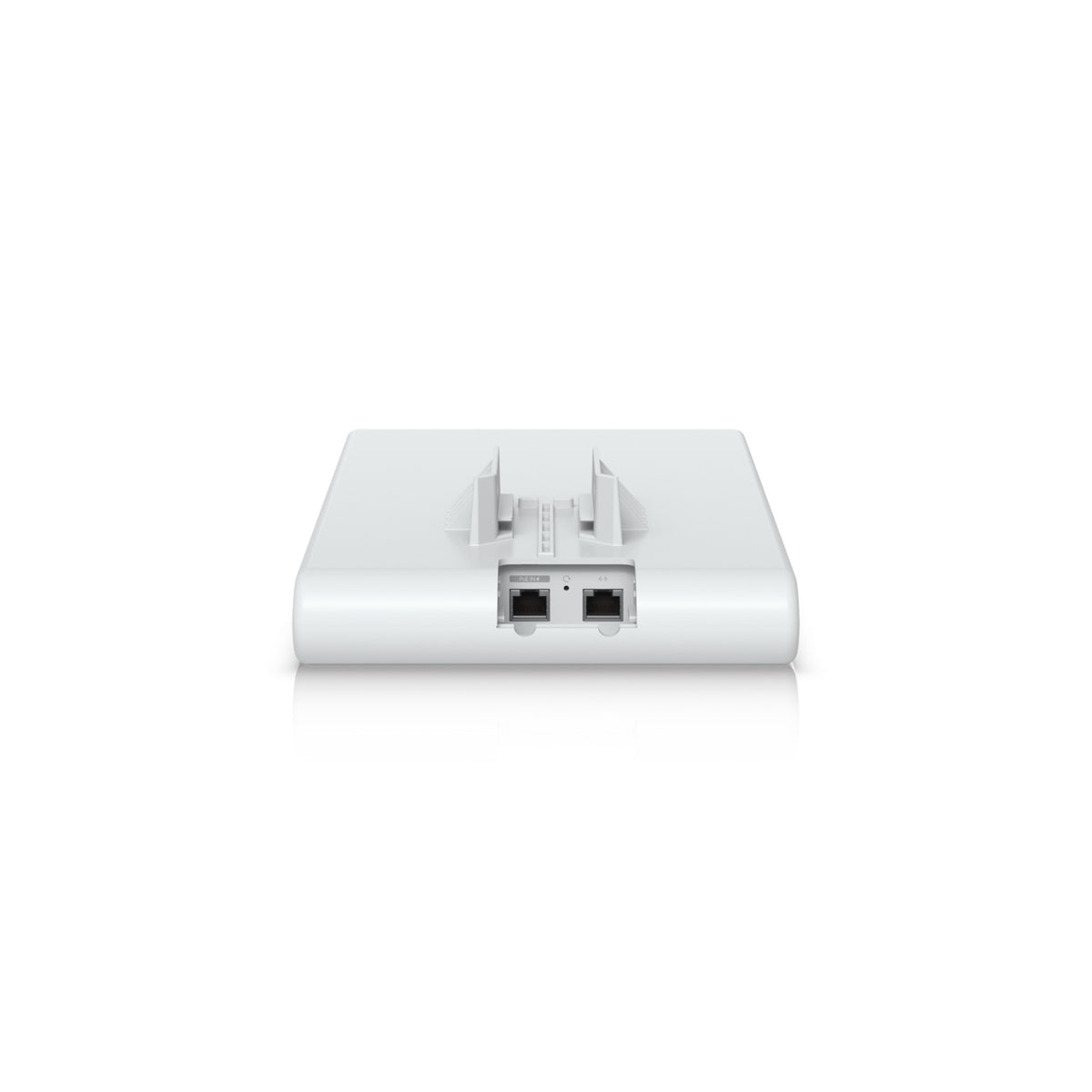

GbE uplink with (1) GbE passthrough port

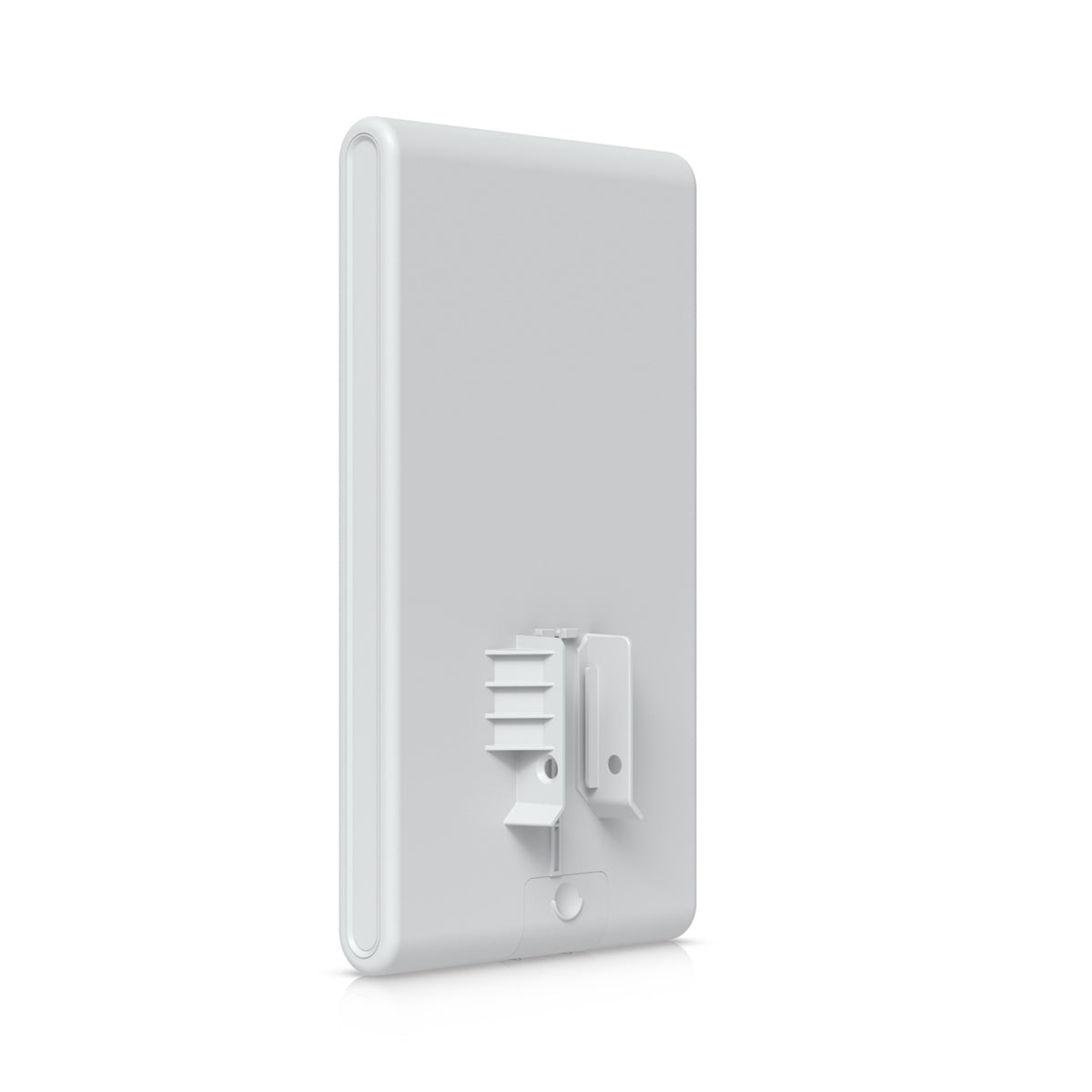

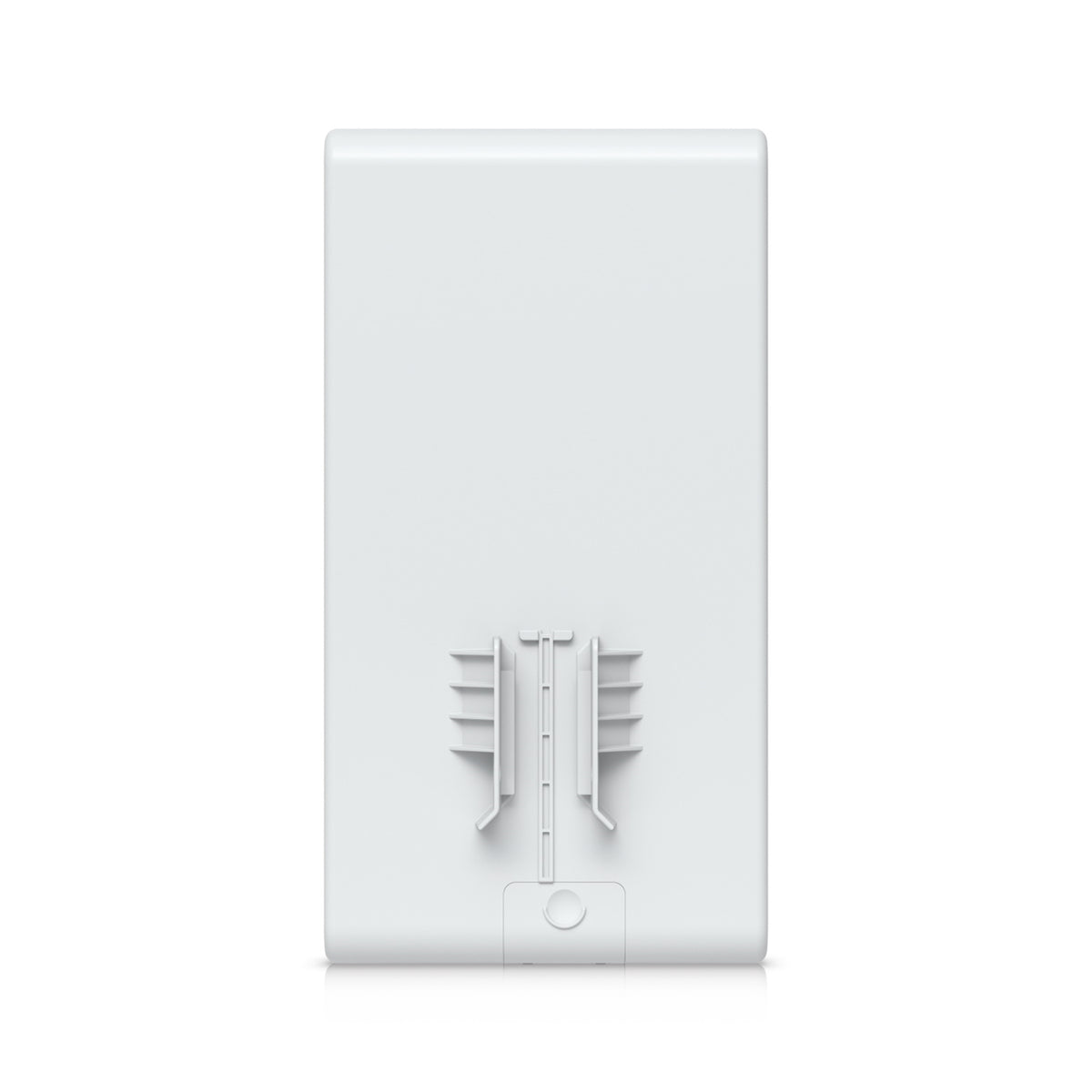

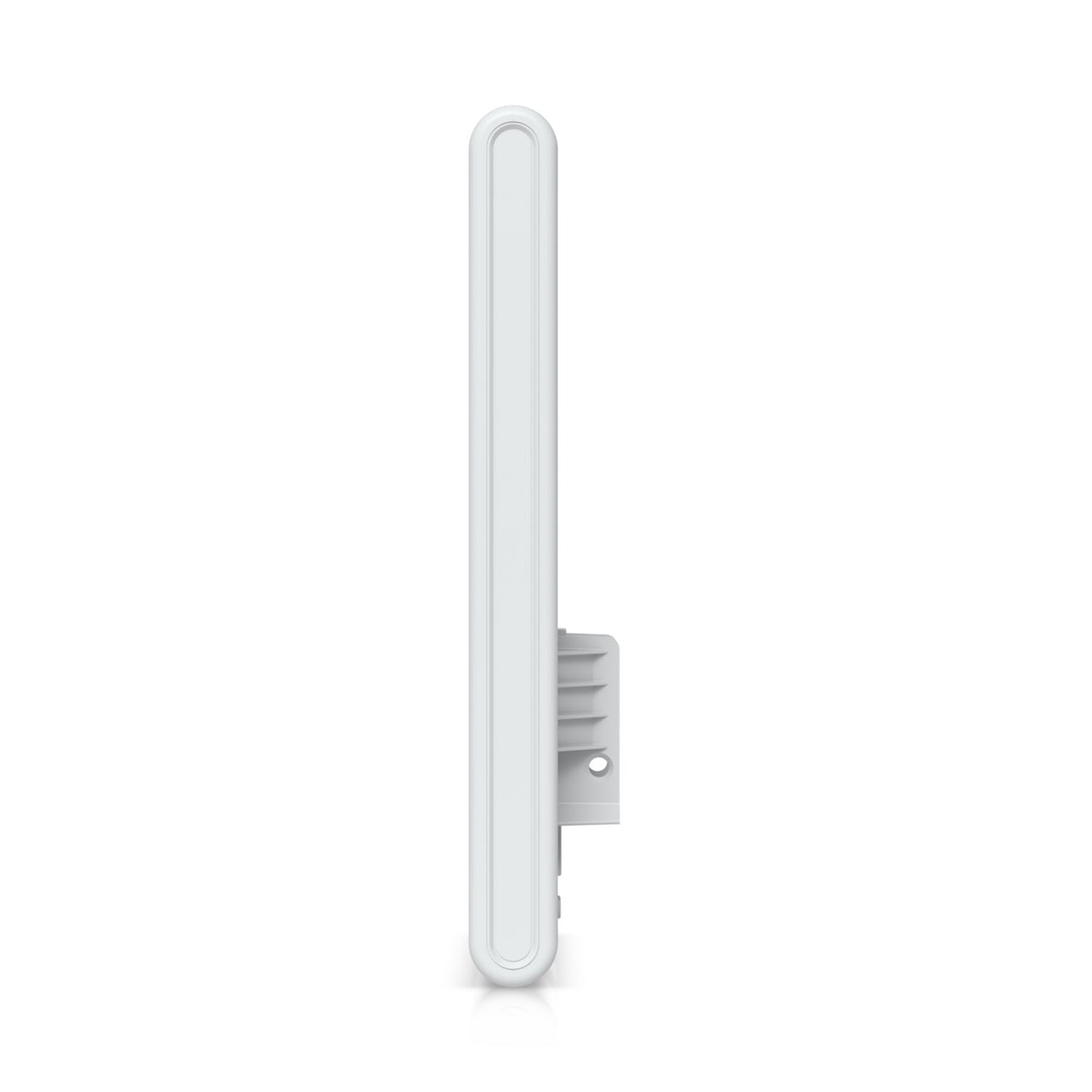

Versatile wall and pole mounting
Weatherproof (outdoor exposed)
Specification
| Specification | Detail |
|---|---|
| Dimensions | 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4") |
| Weight | 819 g (1.8 lb) |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | Aluminum alloy, steel |
| Pole Diameter | 1~2.5" on pipe outer diameter |
| Weatherproofing | IPX6 |
| Networking Interface | (2) GbE RJ45 ports |
| Management Interface | Ethernet WiFi |
| Power Method | POE |
| Power Supply | UniFi PoE switch 48V, 0.5A PoE adapter (Included) |
| Supported Voltage Range | 42.5—57V DC |
| Max. Power Consumption | 9W |
| Max. TX Power | 2.4GHz : 22 dBm 5GHz : 27 dBm |
| MIMO | 2.4GHz : 2 x 2 (DL/UL MU MIMO) 5GHz : 2 x 2 (DL/UL MU MIMO) |
| Max. Data Rate | 2.4GHz : 573.5 Mbps (BW40) 5GHz : 2.4 Gbps (BW160) |
| Antenna Gain | 2.4GHz : 8 dBi 5GHz : 8 dBi |
| LEDs | White/Blue |
| Button | Factory Reset |
| Mounting | Wall, pole (Included) |
| WiFi Standards | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 Per Radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 350+ |
-
