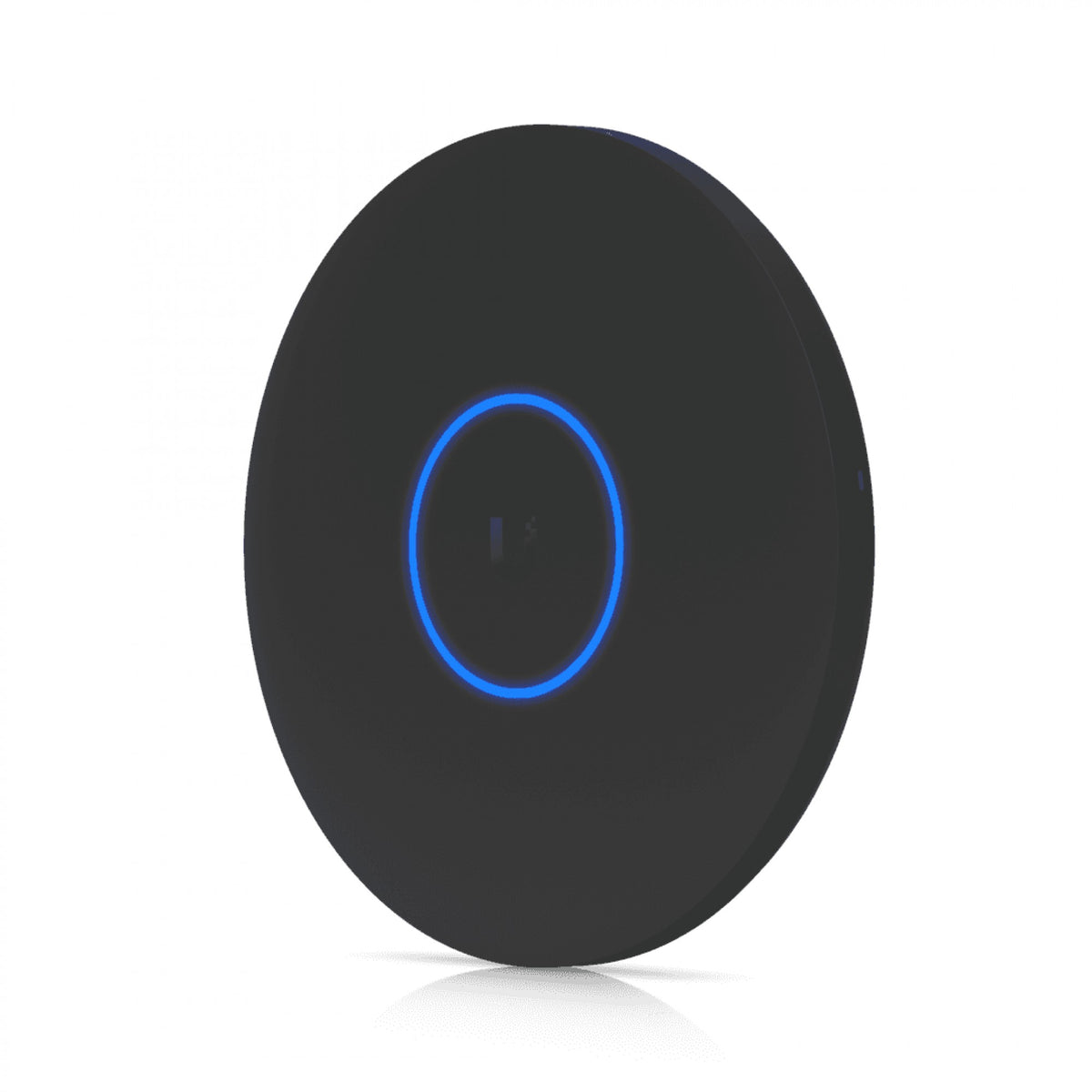

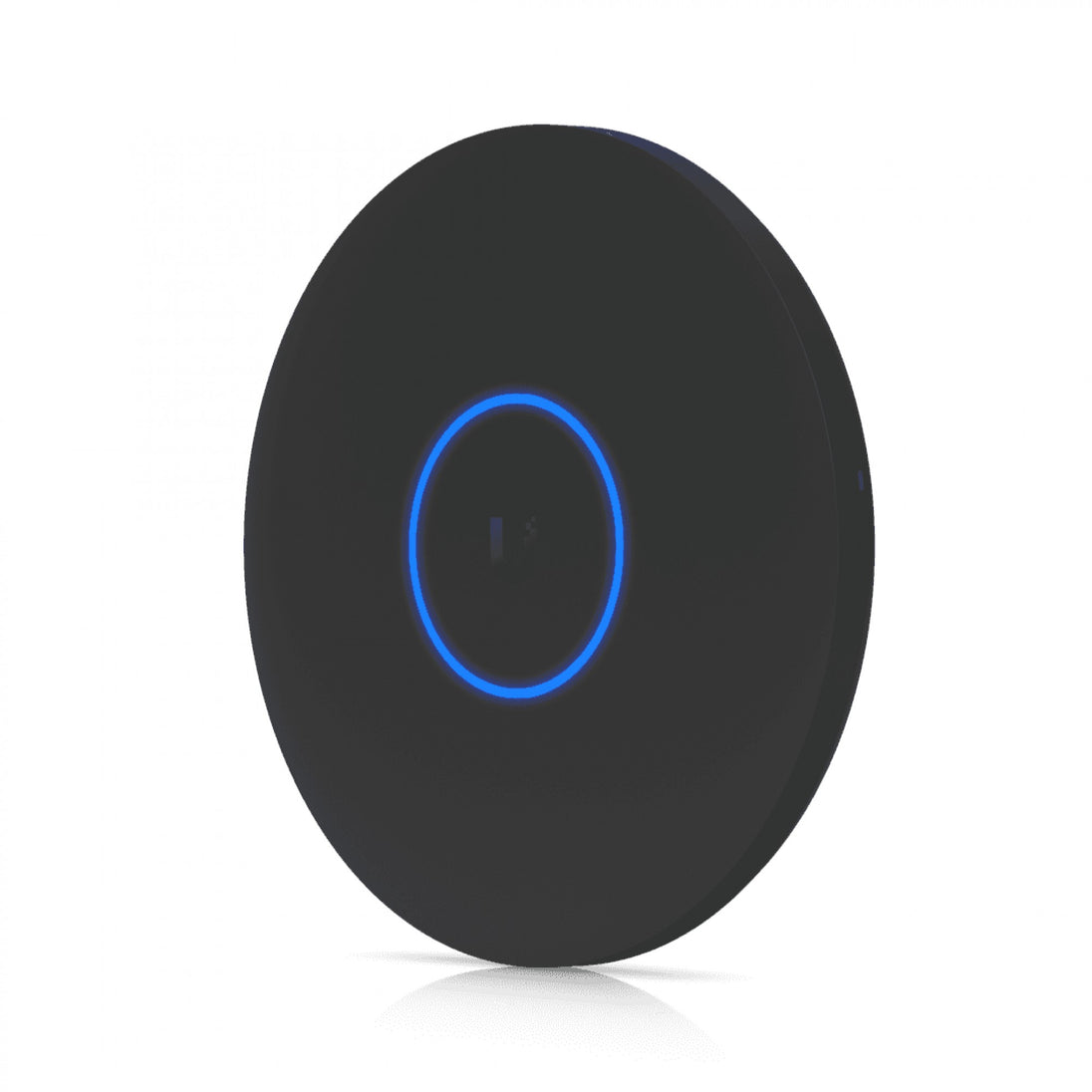

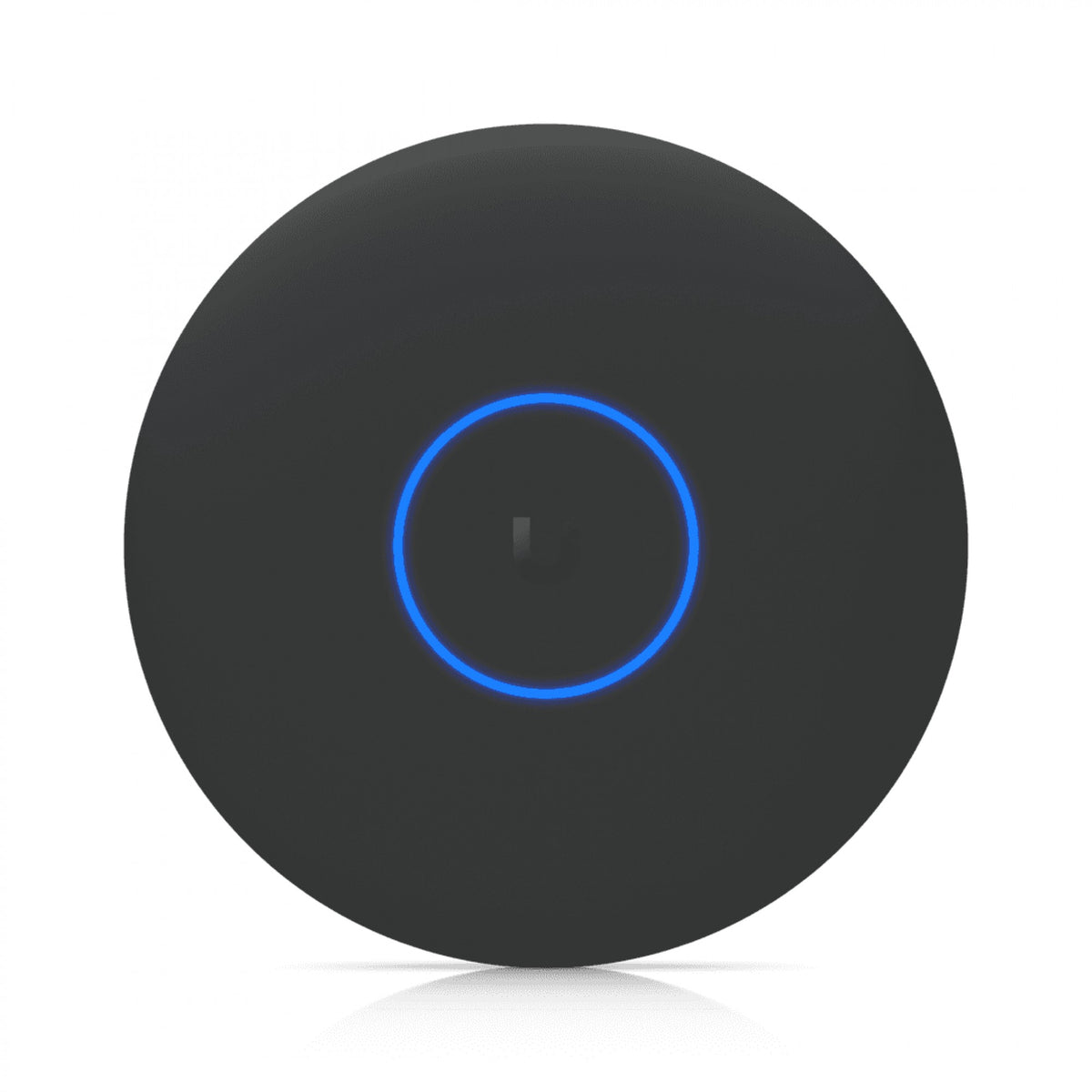

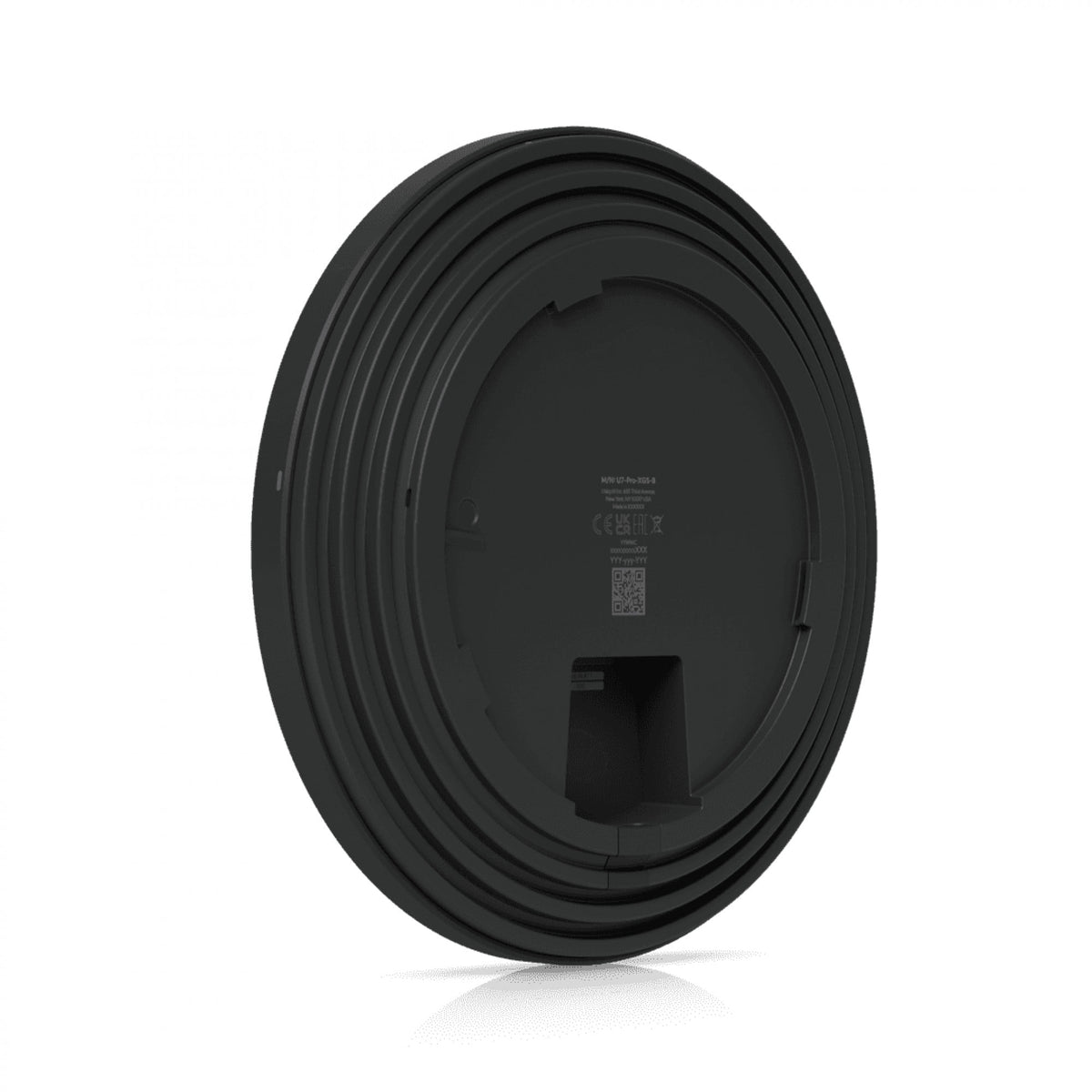

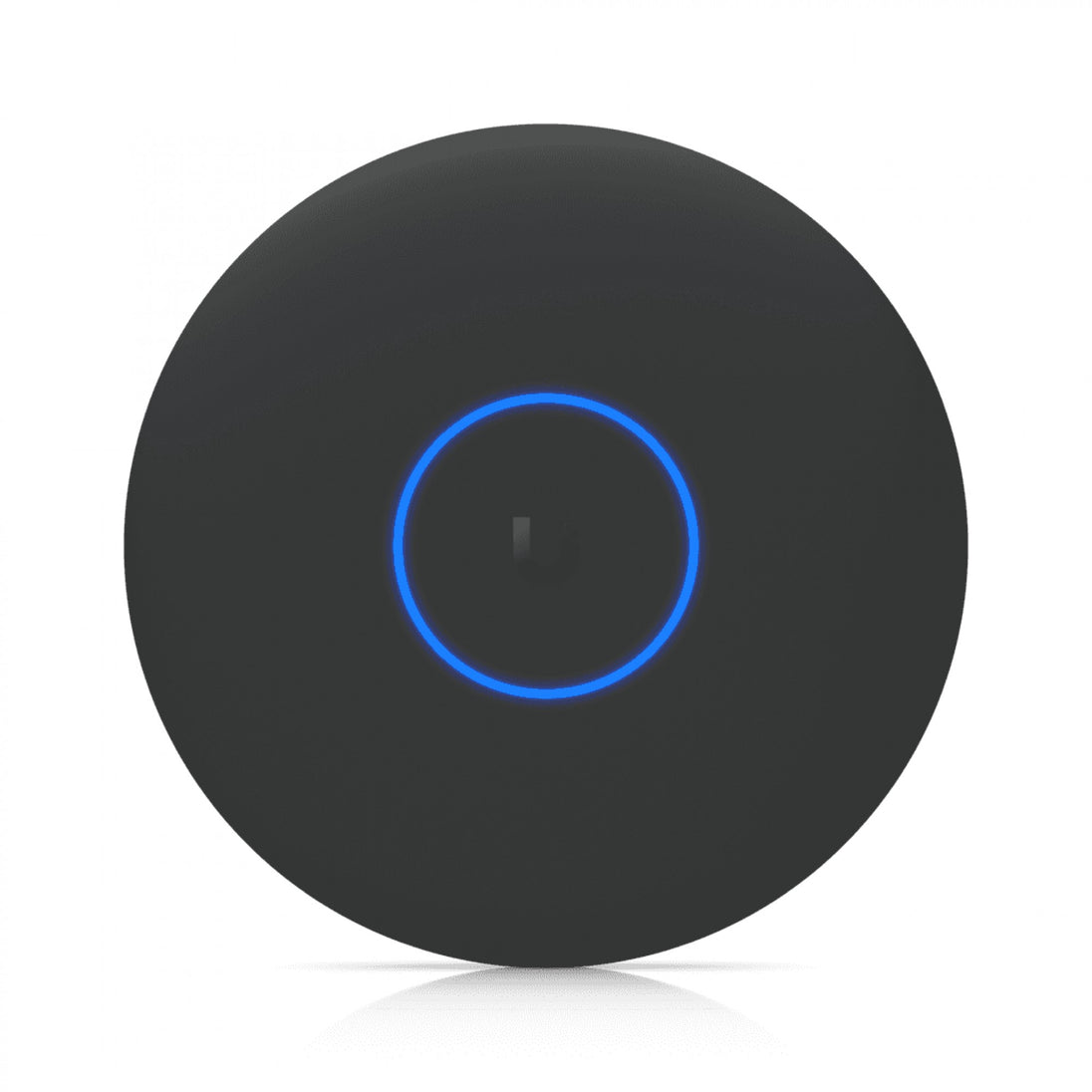

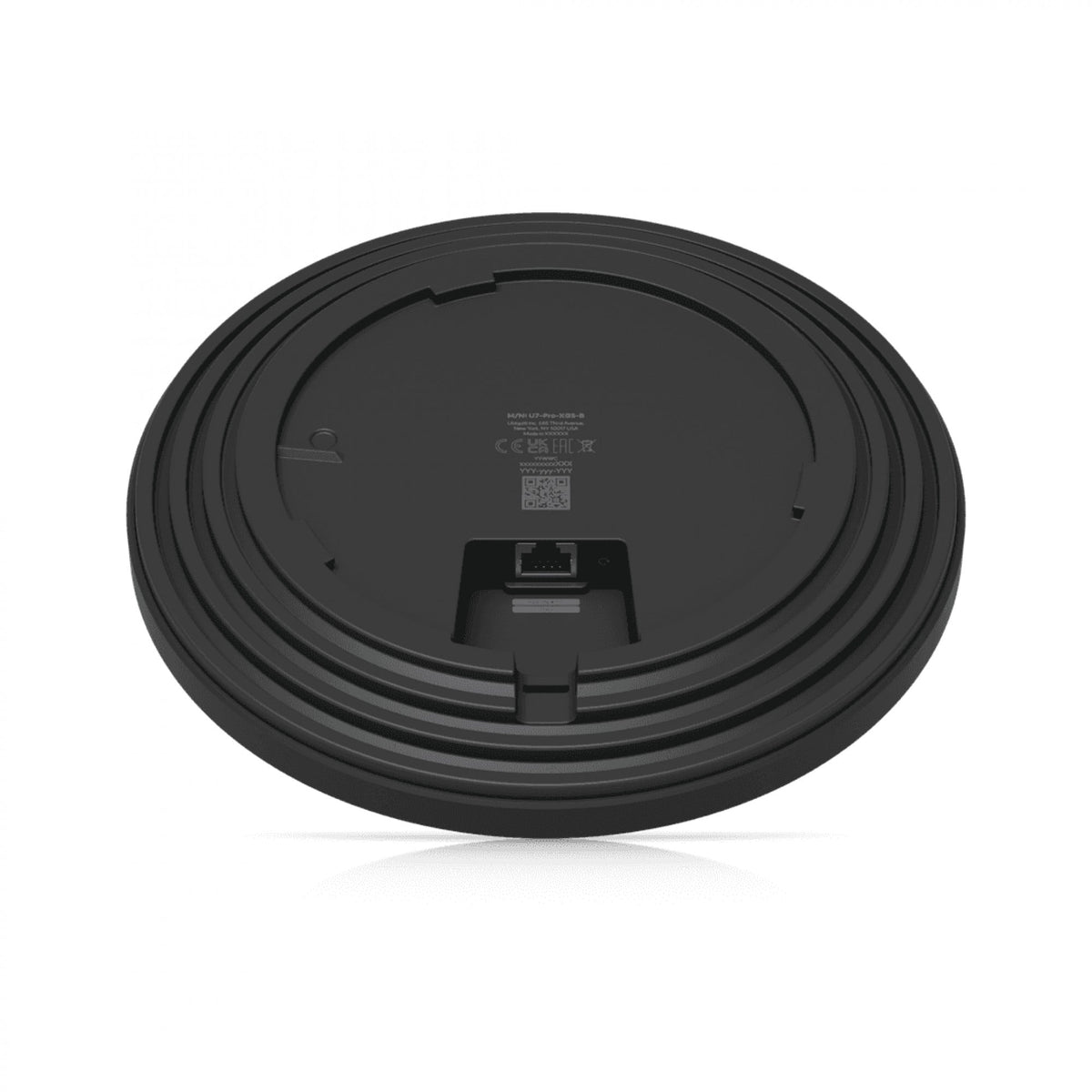

The Ubiquiti UniFi U7 Pro XGS is a tri-band Wi-Fi 7 access point for businesses and advanced home networks that need high wireless capacity. Its ceiling or wall mounting makes it suitable for offices, shared workspaces and other environments with many connected devices.
WiFi 7 with 6 GHz support
8 spatial streams
Real-time spectral analysis for enhanced channel selection
160 m2 (1,750 ft2) coverage
500+ connected devices
Powered using PoE++
10 GbE uplink
Specification
| Specification | Detail |
|---|---|
| Dimensions | d215 x 32.5 mm (d8.5 x 1.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 8 |
| Coverage Area | 160 m2 (1,750 ft2) |
| Max. Client Count | 500+ |
| Uplink | 10 GbE |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE++ |
| MIMO | 6 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz 5.8 Gbps (BW320) 5 GHz 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) |
| Antenna Gain | 6 GHz 6 dBi 5 GHz 6 dBi 2.4 GHz 4 dBi |
| Max. TX Power | 6 GHz 24 dBm 5 GHz 29 dBm 2.4 GHz 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Zero-Wait DFS | Yes |
| Advanced Radio Management | Yes |
| Real-Time Spectral Analysis | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Max. Power Consumption | 29W |
| Supported Voltage Range | 42.5 - 57V DC |
| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 800 g (1.8 lb) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs | System |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Certifications | CE, FCC, IC |
-
