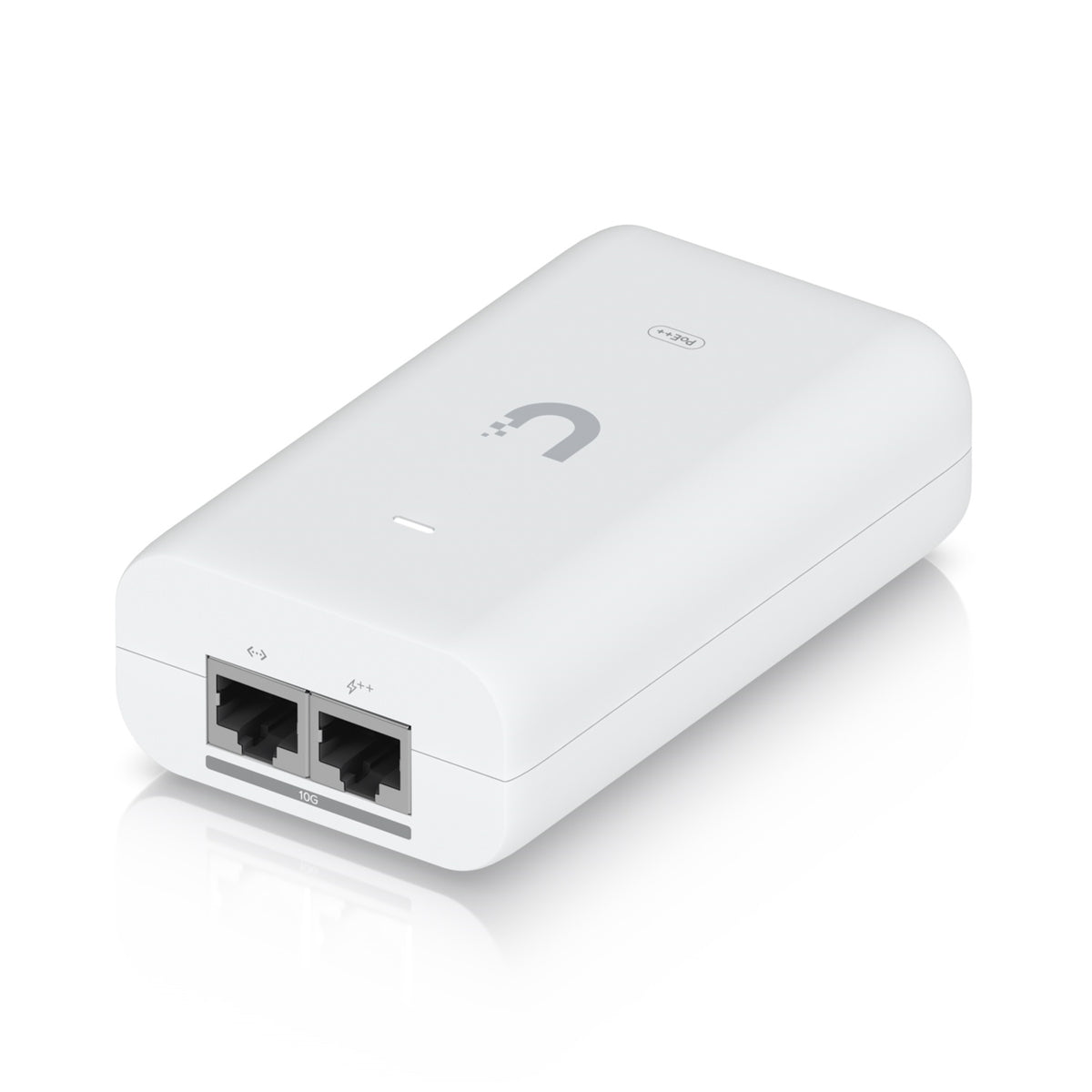

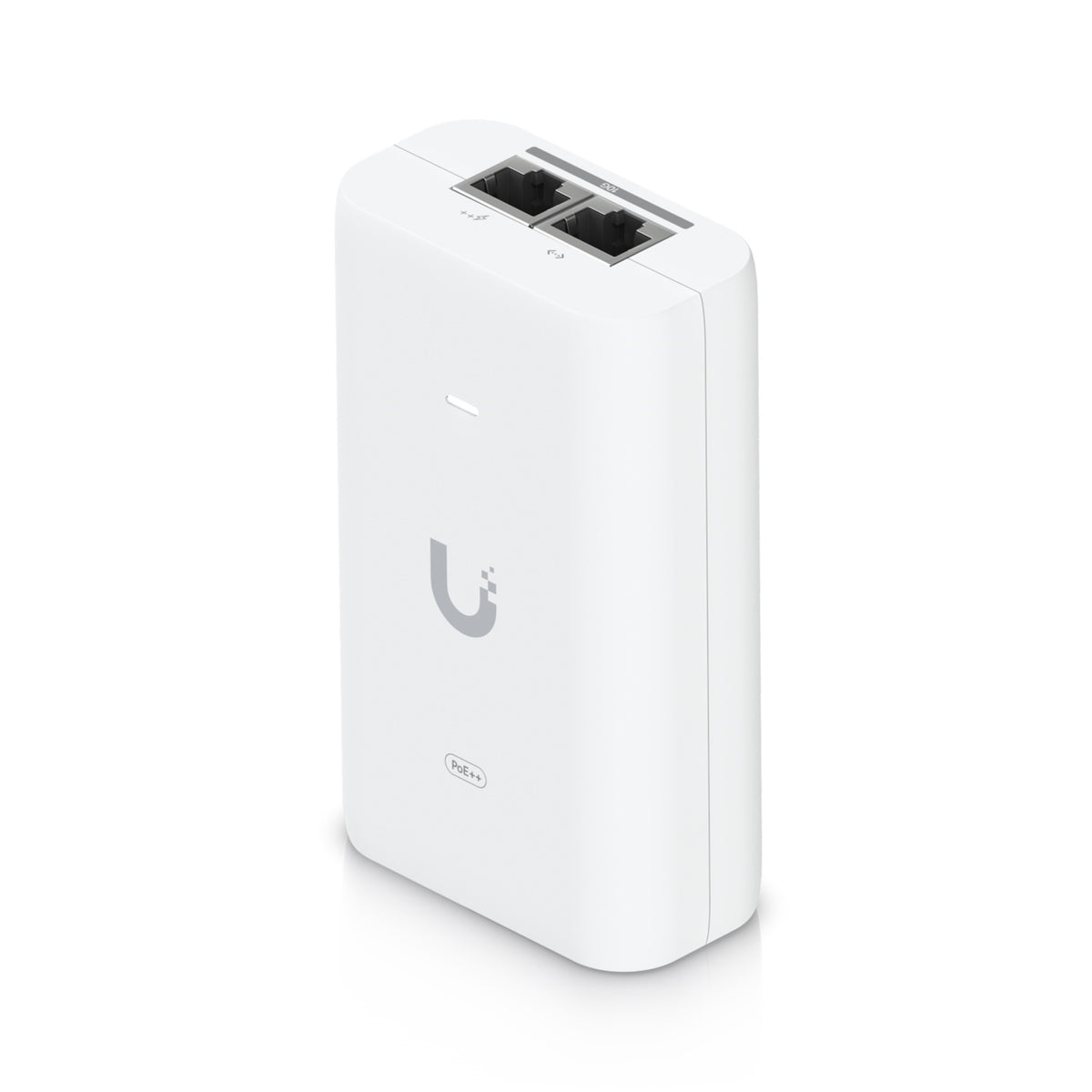

The Ubiquiti UniFi 10G PoE++ Adapter is a mains-powered injector for compatible PoE++ network devices. It suits installers adding a single access point or other PoE++ device where a PoE switch is unavailable, or where they want to reduce the load on a switch’s PoE power supply.
An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection

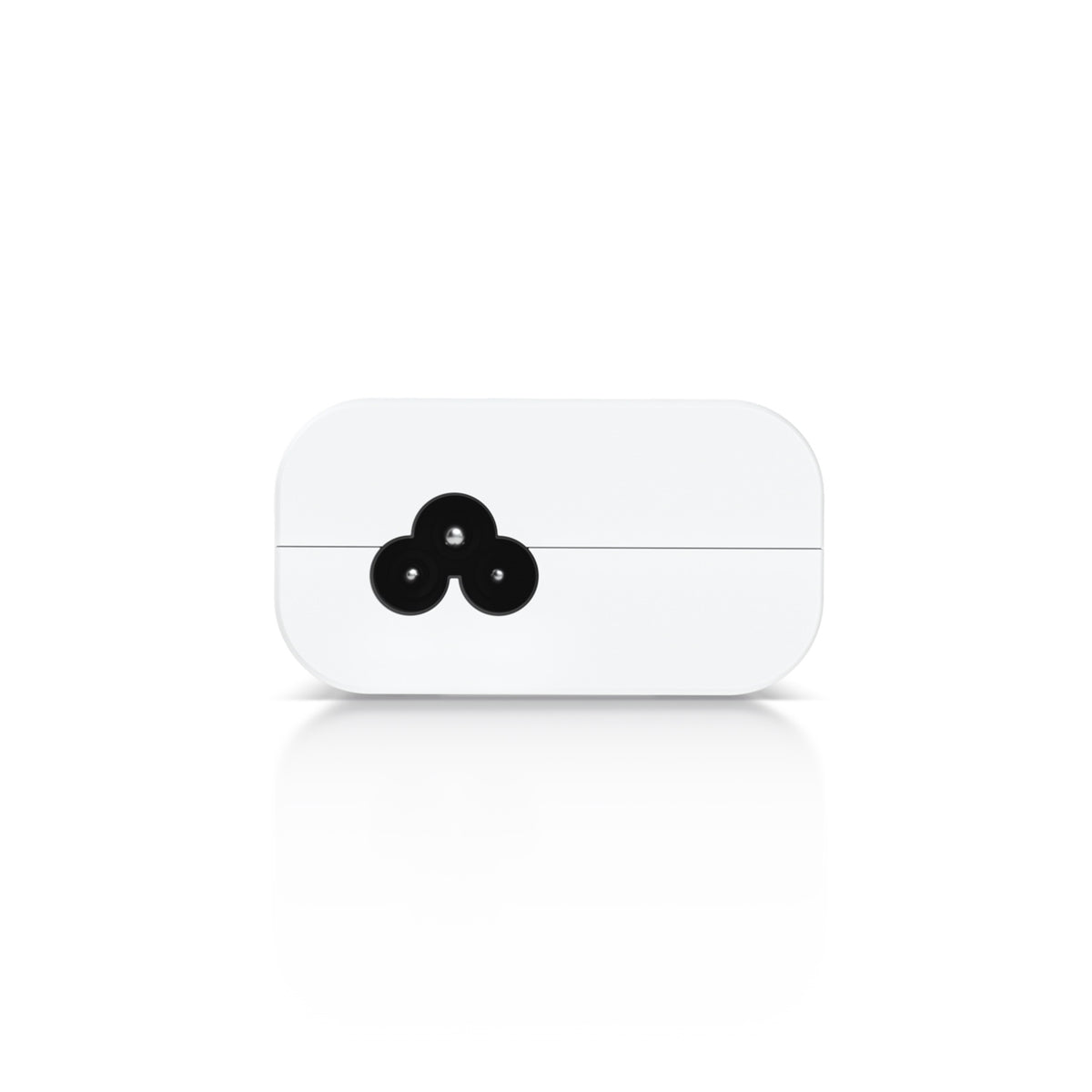

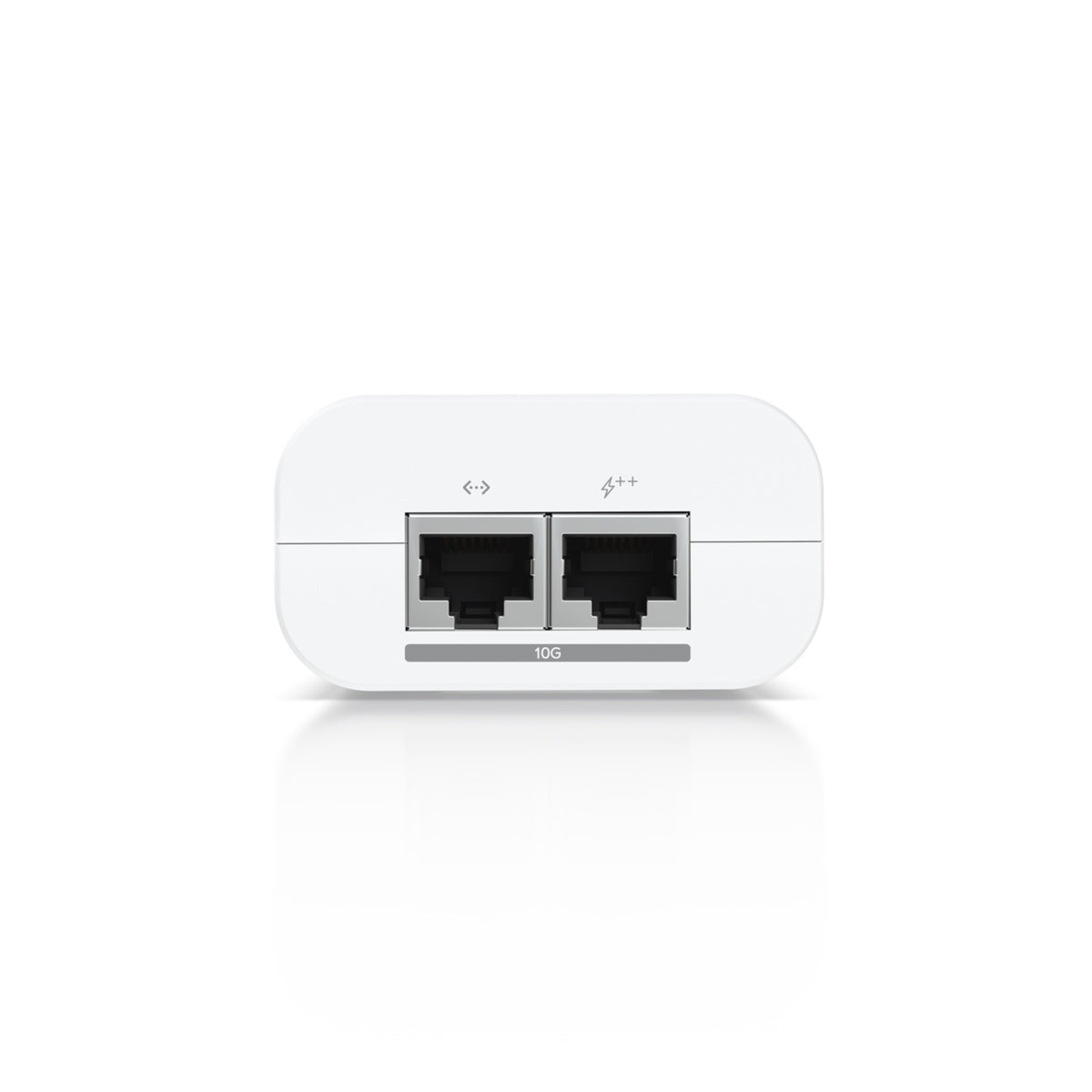

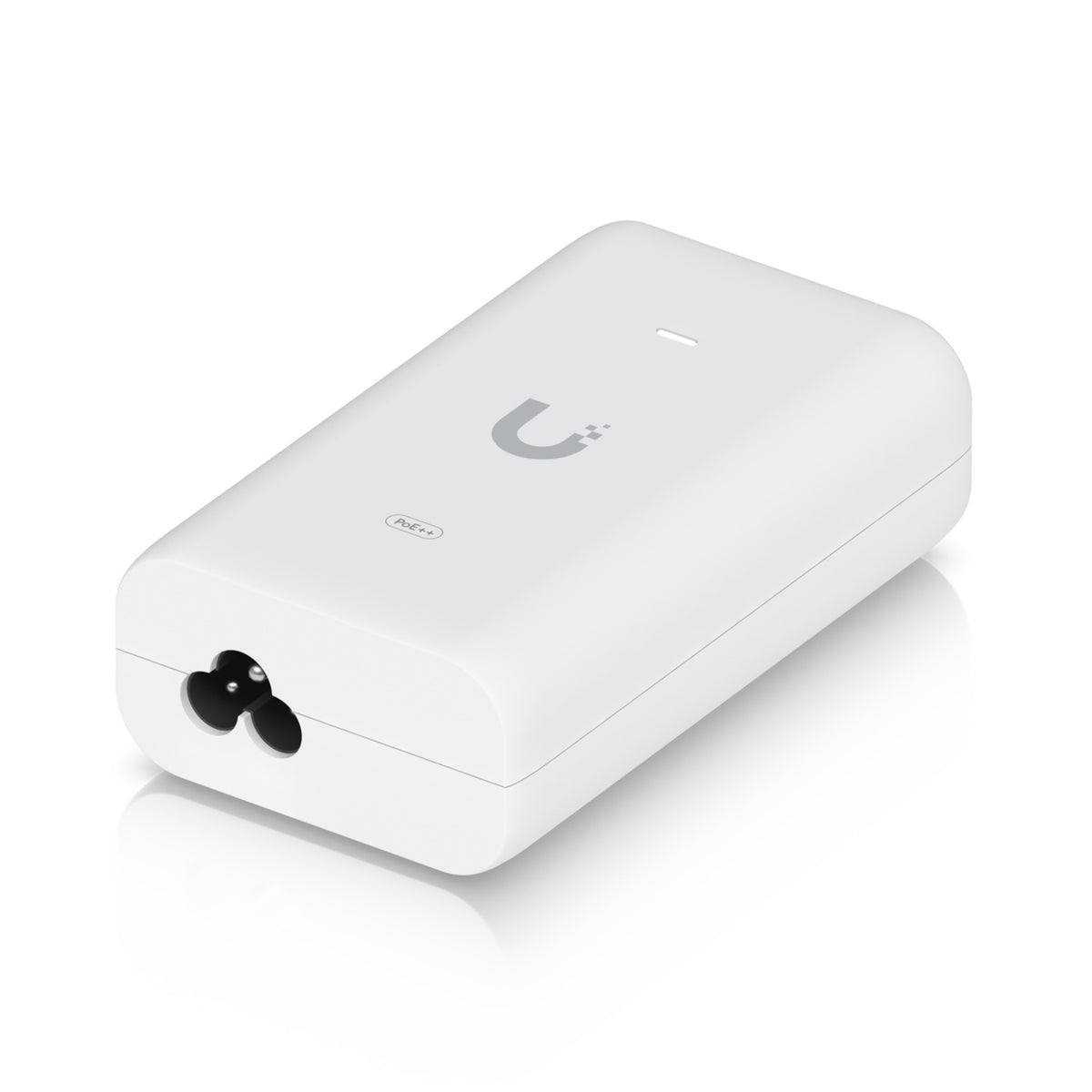

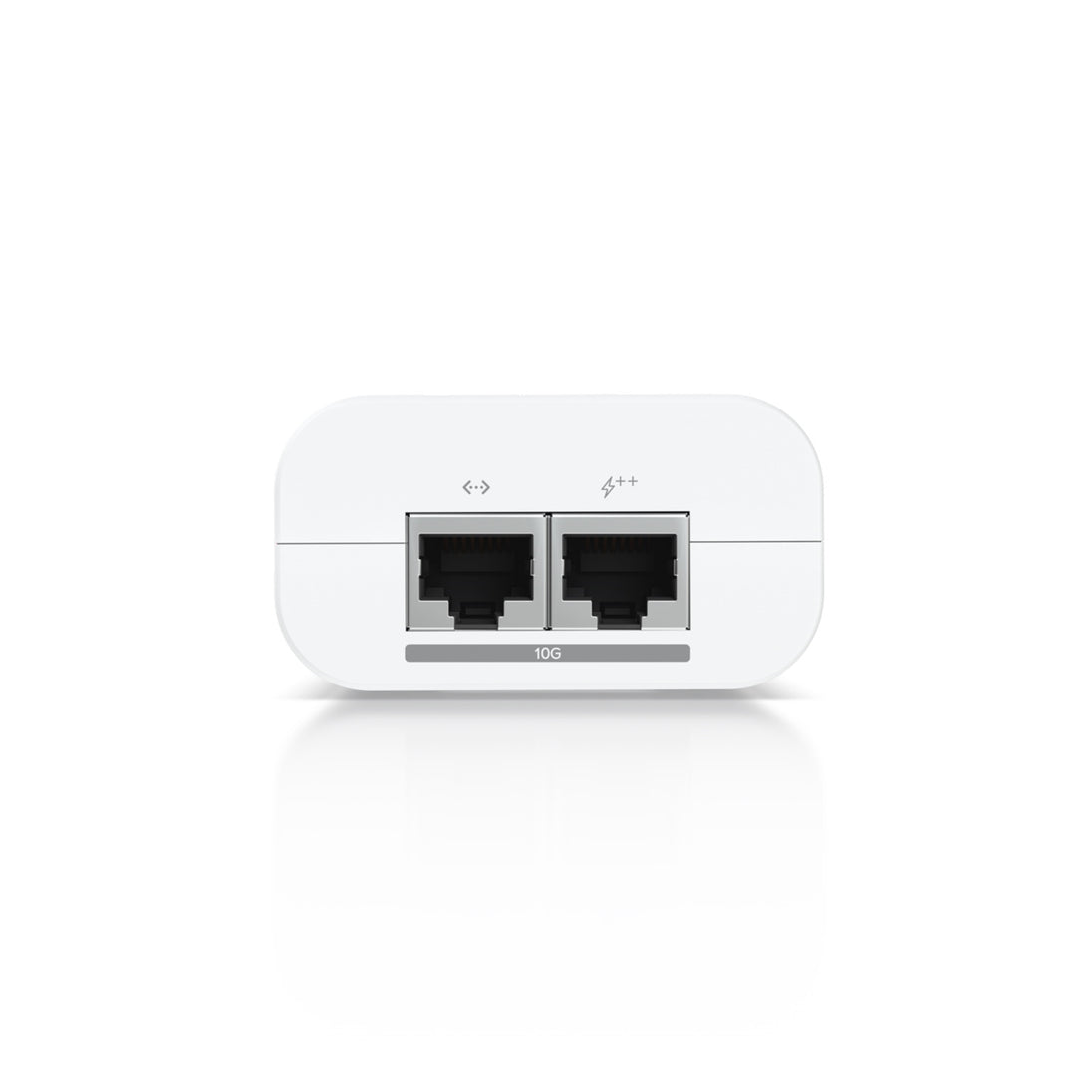

Contains RJ45 data input, AC cable with earth ground, and PoE++ output

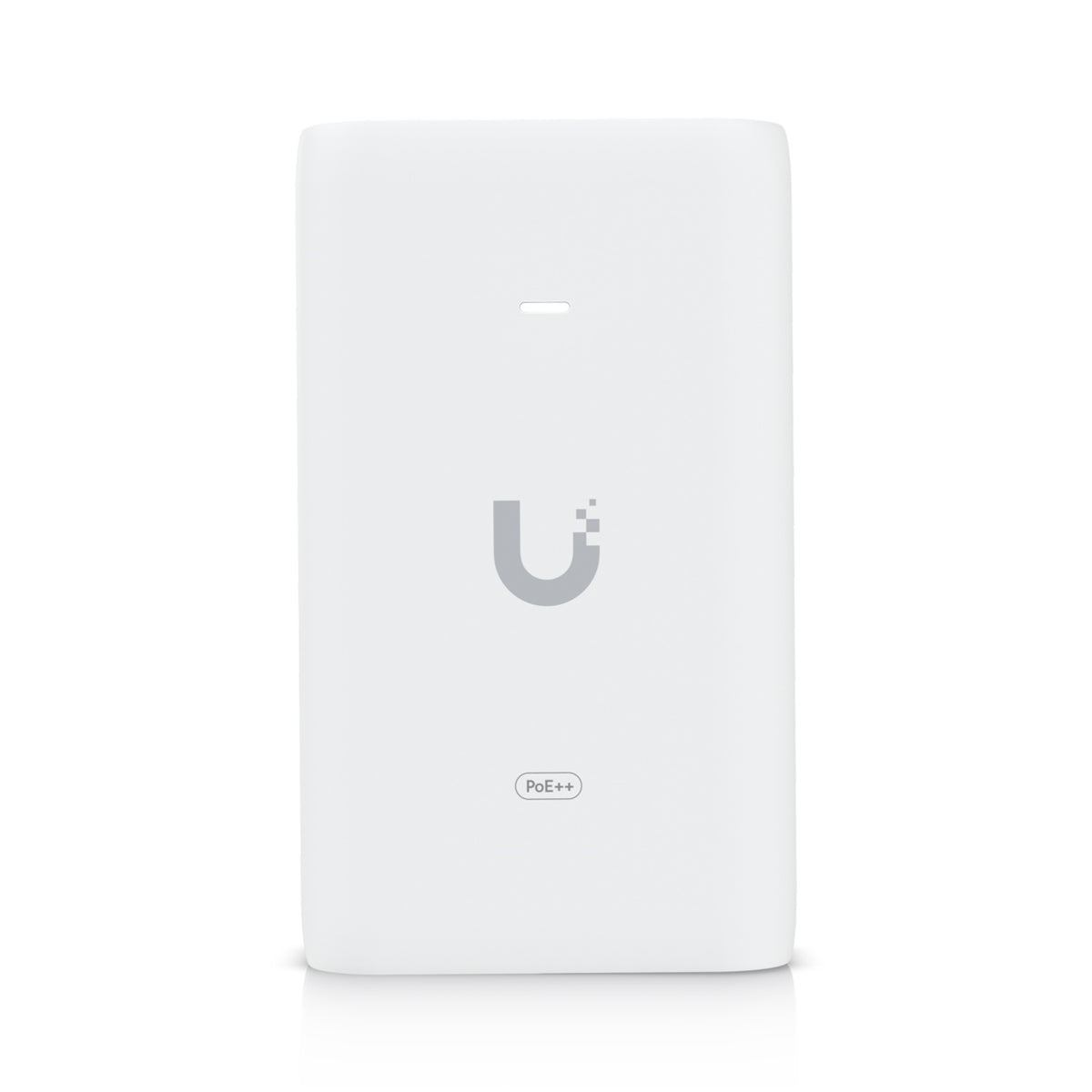

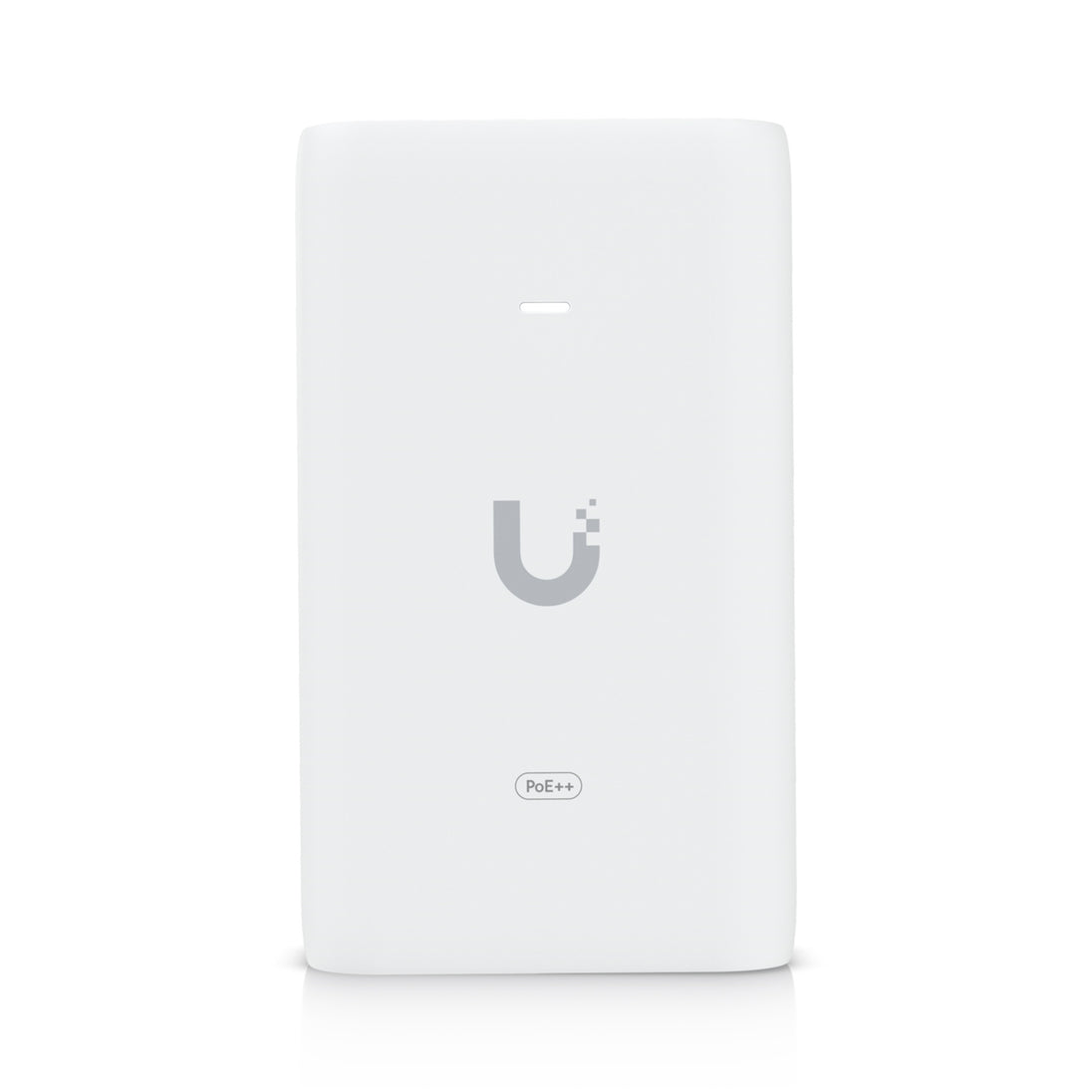

LED indicator for status monitoring
Specification
| Specification | Detail |
|---|---|
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
| Weight | 210 g (7.4 oz) |
| Output Voltage | 54V DC @ 1.12A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes, up to 10 GbE |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100—240V AC @ 50/60Hz |
| Input Current | 1.5A max. |
| Inrush Current | <150A peak @ 230V AC |
| Efficiency | >88% |
| Output Ripple | 1% max. |
| Switching Frequency | 65 kHz |
| Line Regulation | < 2% |
| Load Regulation | < 5% |
| 2-Pair Powering | No |
| 4-Pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Data In / POE | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11V data, 60V power |
| Max. Surge Discharge | 1500A power |
| Peak Pulse Current | 36A data |
| Shunt Capacitance | <5 pF Data |
| Response Time | <1 ns |
| Max. PoE+ wattage per port by PSE | 60W |

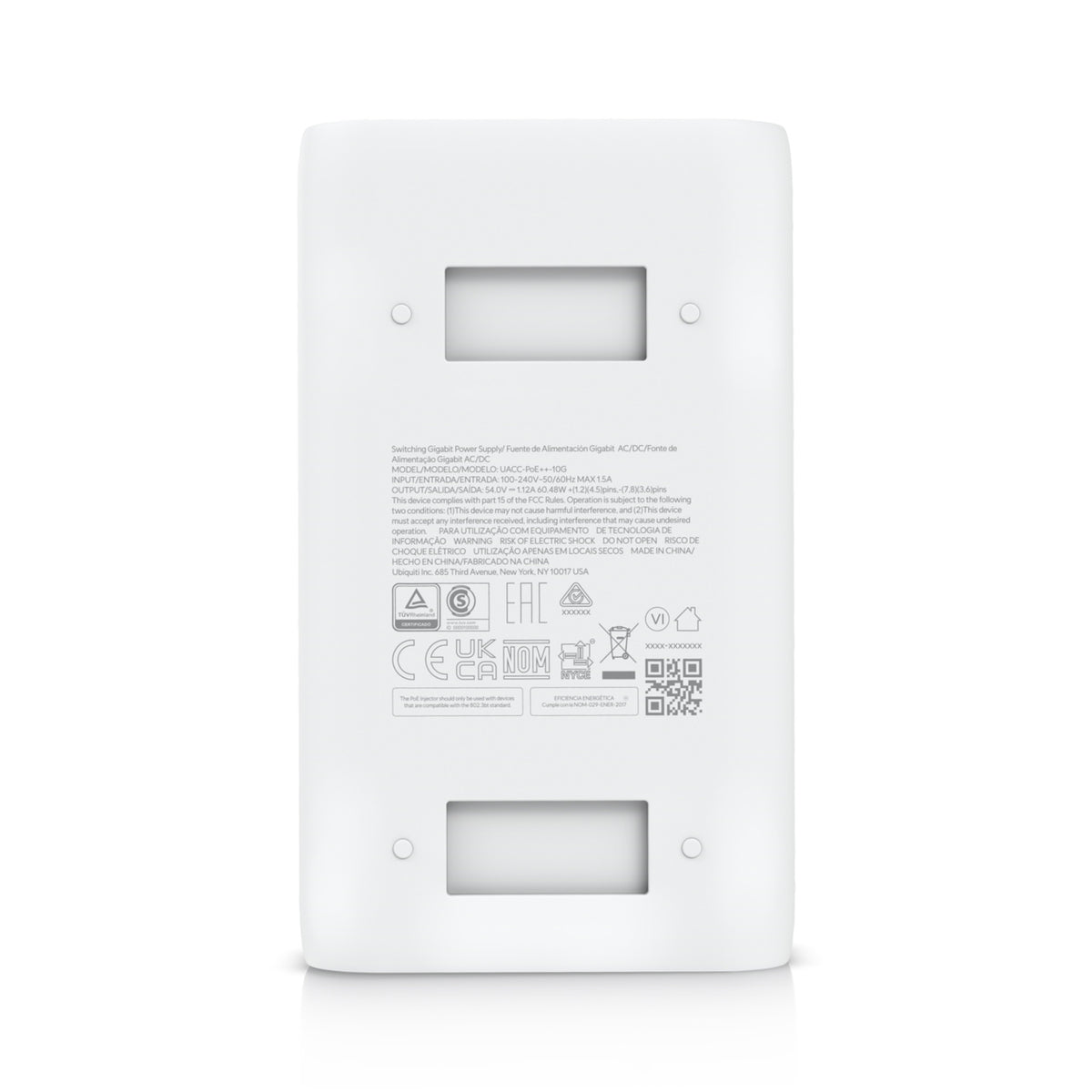

| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
-
