Ubiquiti

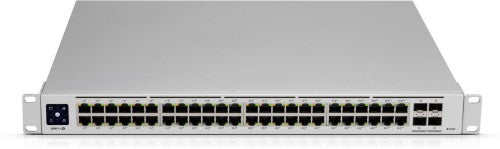

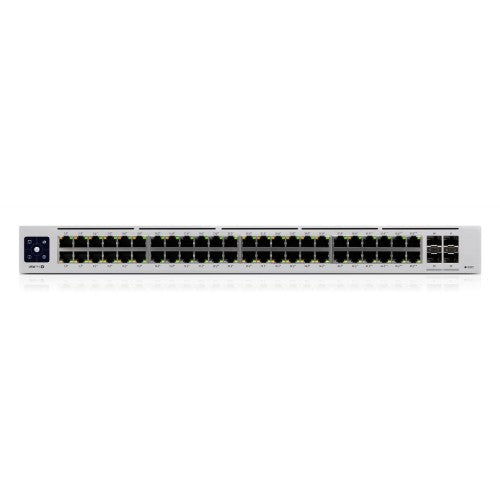

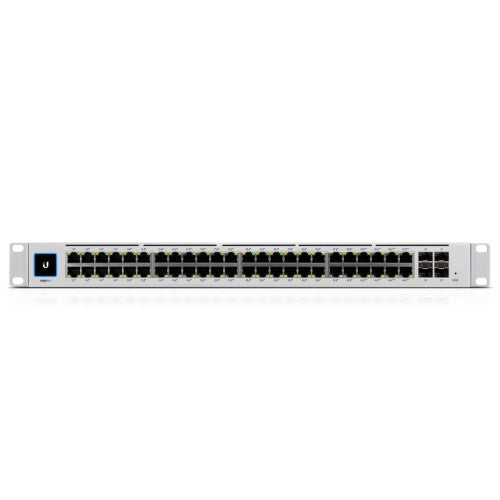

Ubiquiti UniFi USW-PRO-48 network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Silver

SKU USW-PRO-48
£828.80
£484.57
£828.80
£484.57
Excluding taxes
48x Gigabit Ethernet, 4x 10G SFP+, L2/L3, 1.3" Touch, 176Gbps, 60W

Key Features

  • (48) Gigabit RJ45 ports
  • (4) 10G SFP+ ports
  • Layer 2 and Layer 3 features
  • UniFi SmartPower RPS DC input
  • Near-silent cooling
  • 1.3" touchscreen display
  • Managed by UniFi Network Controller

Description

UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.

The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Specifications

Management features
Switch type Managed
Switch layer L2/L3
Ports & interfaces
SFP+ module slots quantity 4
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.1x
VLAN support Yes
Spanning tree protocol Yes
Port mirroring Yes
Link aggregation Yes
Flow control support Yes
Broadcast storm control Yes
10G support Yes
Data transmission
Switching capacity 176 Gbit/s
Forwarding rate 130.944 Mpps
Security
Authentication type IEEE 802.1x, RADIUS
Design
Backlight display Yes
Form factor 1U
Product colour Silver
LED indicators Activity, Link, Speed
Rack mounting Yes
Certification CE, FCC, IC ETSI300-019-1.4
Power
Power consumption (max) 60 W
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Input current 5.22 A
DC input voltage 11.5 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) -5 - 45 °C
Operating relative humidity (H-H) 10 - 90%
Virtual LAN features
VLAN support Yes
Weight & dimensions
Width 442.4 mm
Depth 285.4 mm
Height 43.7 mm
Weight 4 kg
Packaging content
User guide Yes
Technical details
Form factor 1U
Product colour Silver
Rack mounting Yes
Performance
Harmonized System (HS) code 85176990
Certificates
Certification CE, FCC, IC ETSI300-019-1.4
Indication
LED indicators Activity, Link, Speed
Packaging data
User guide Yes
Logistics data
Harmonized System (HS) code 85176990
