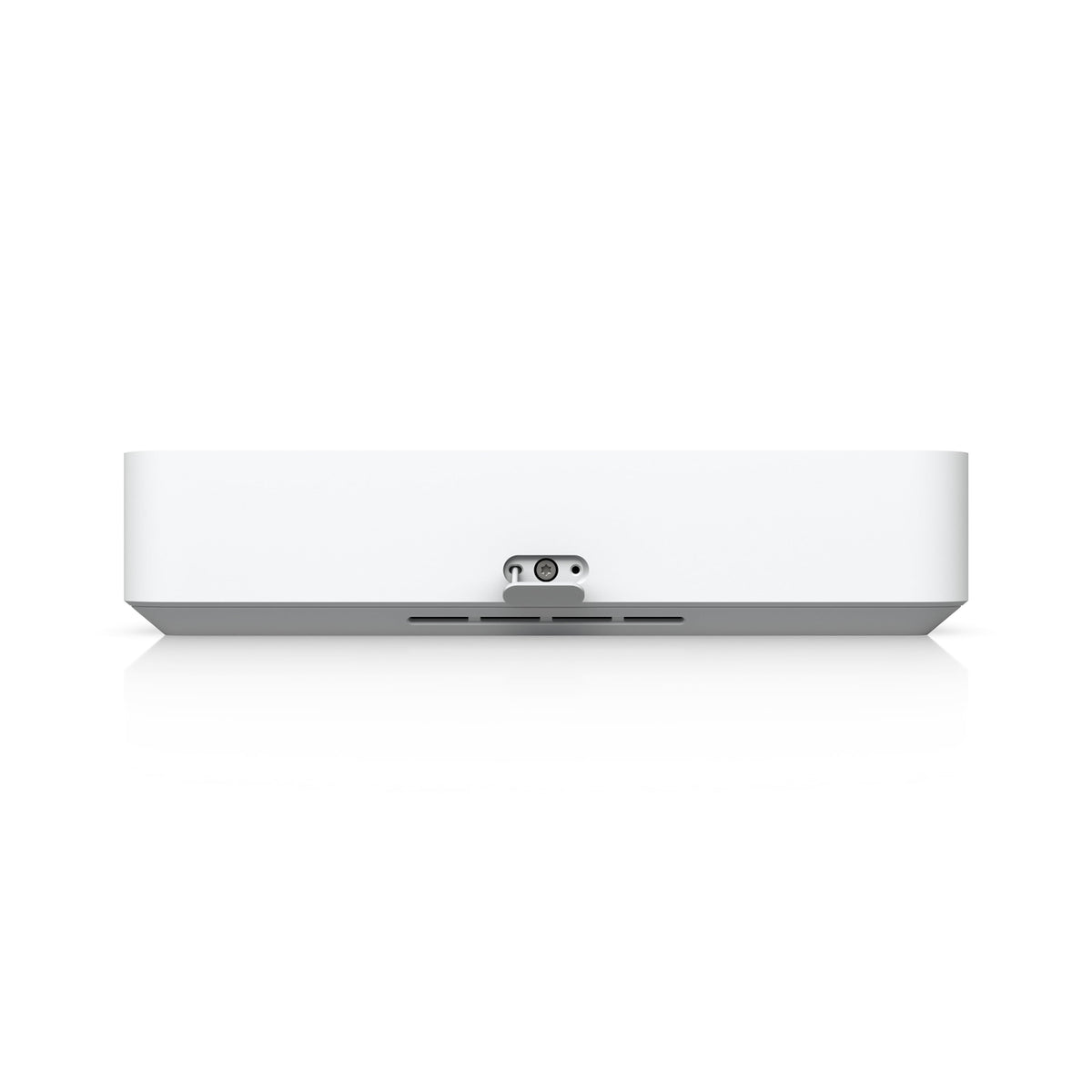

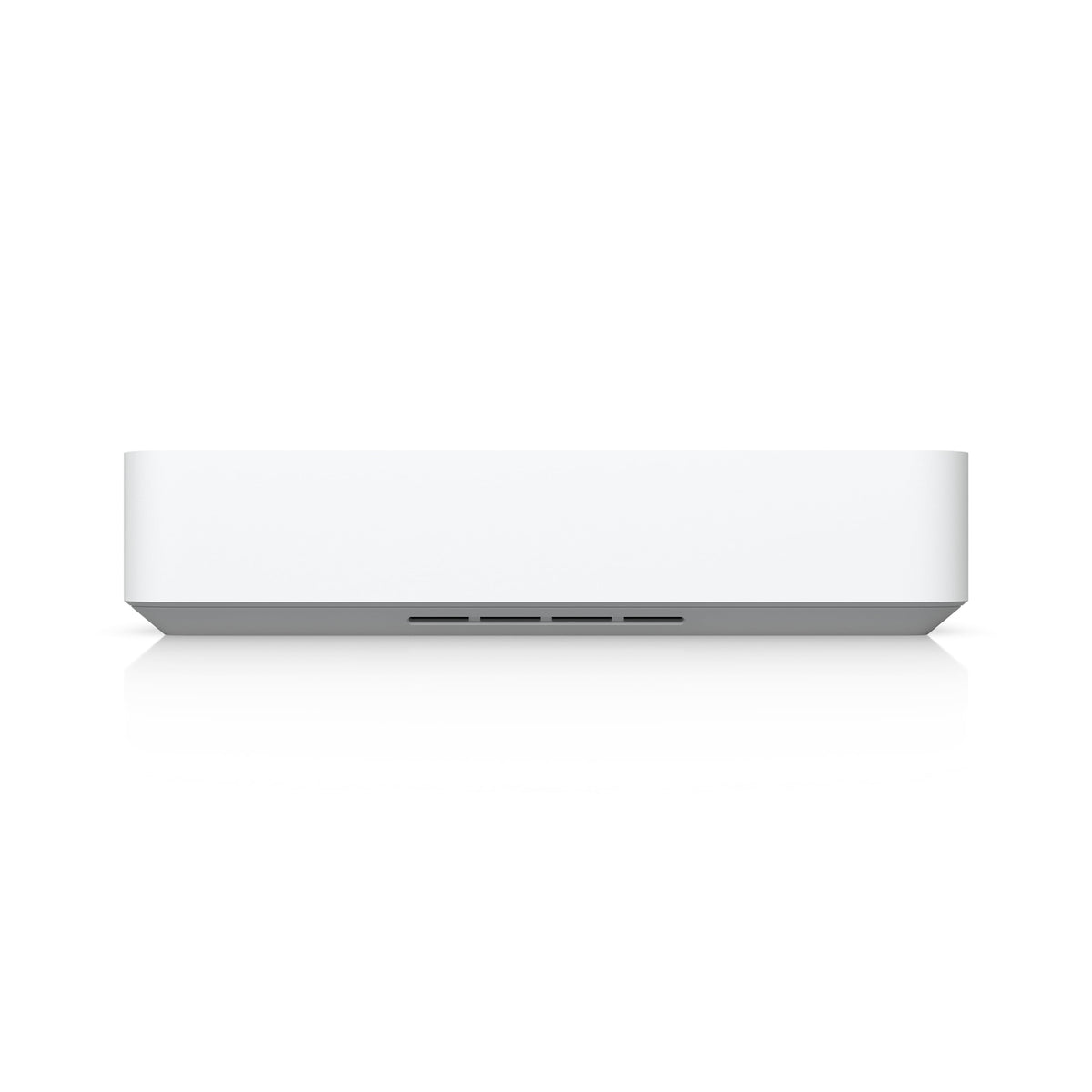

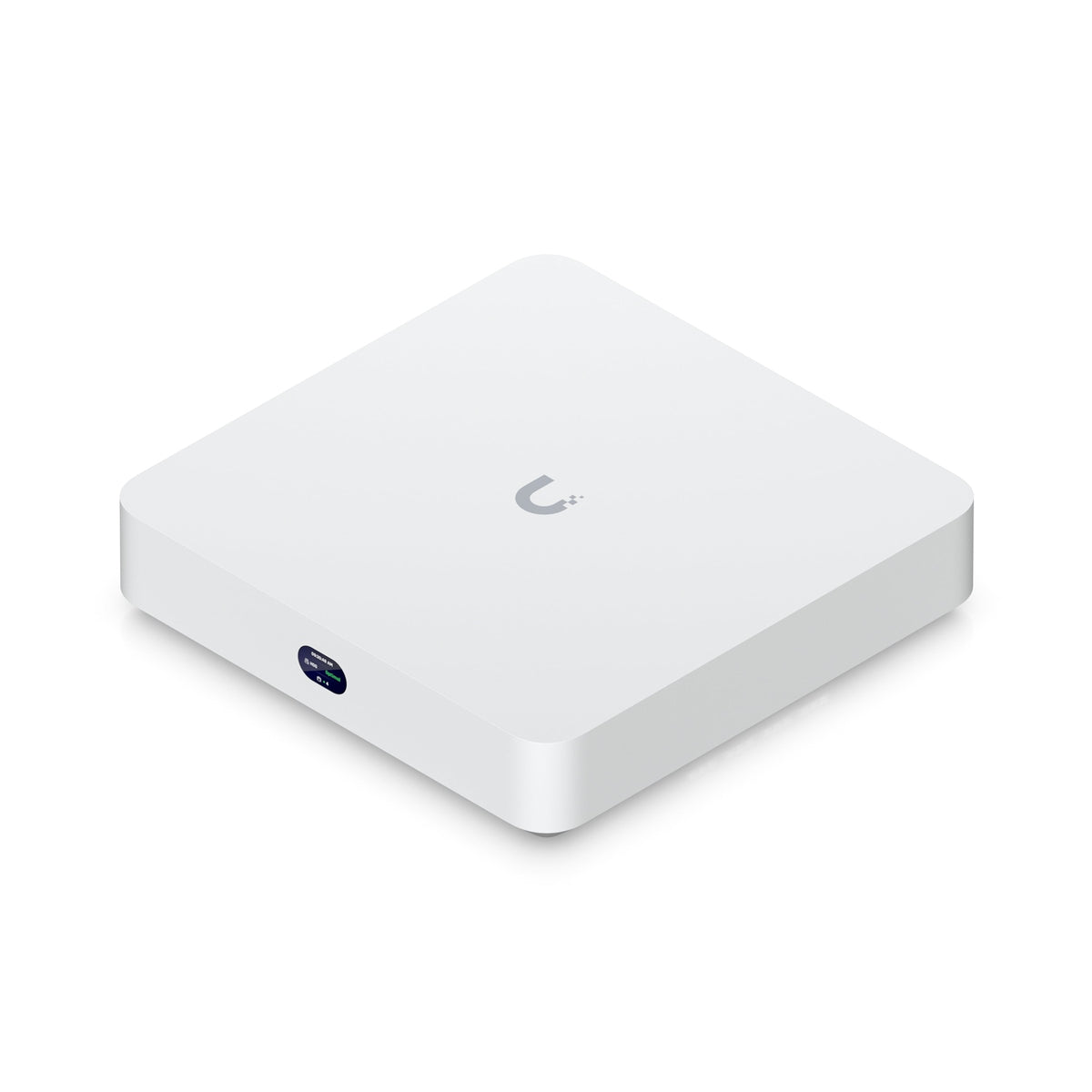

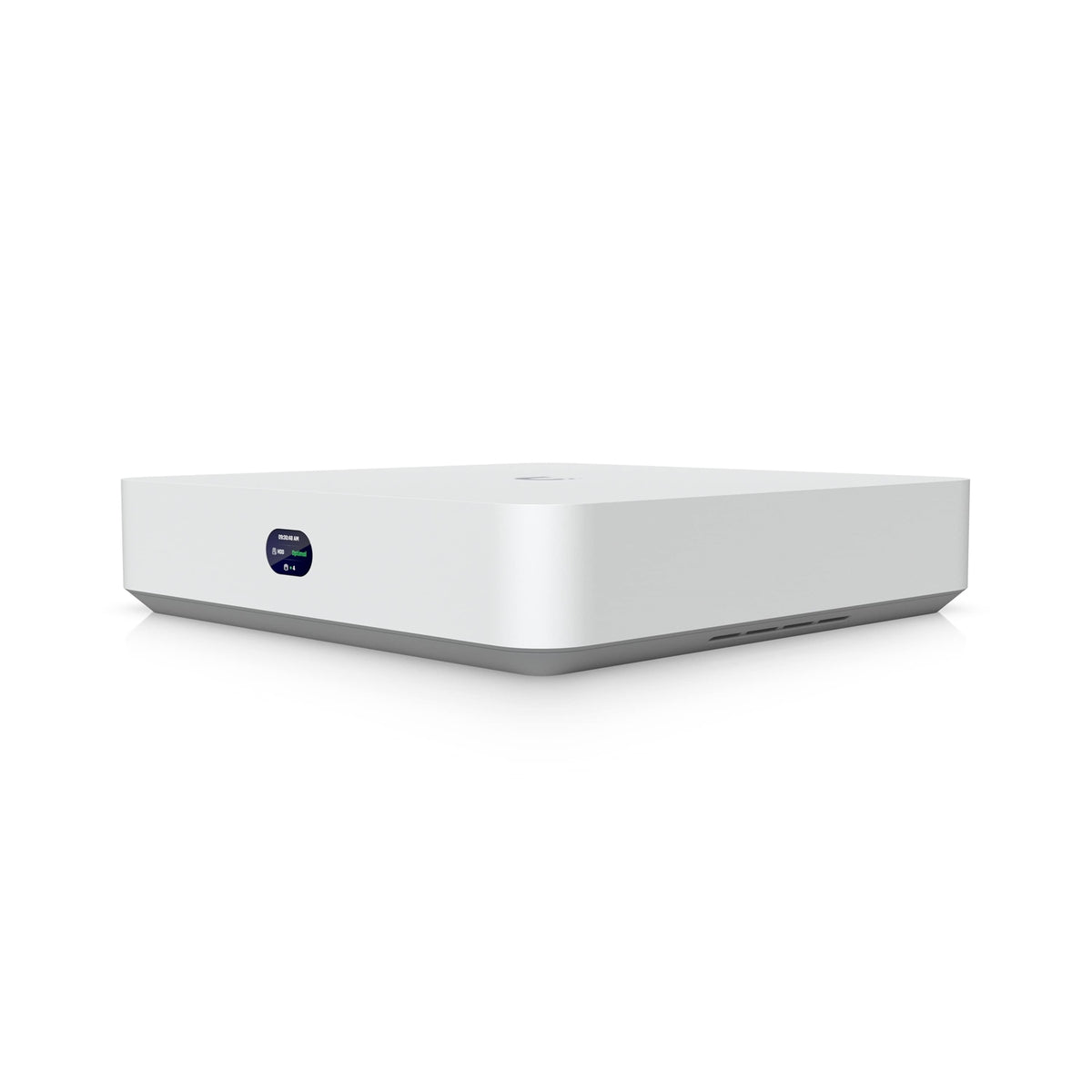

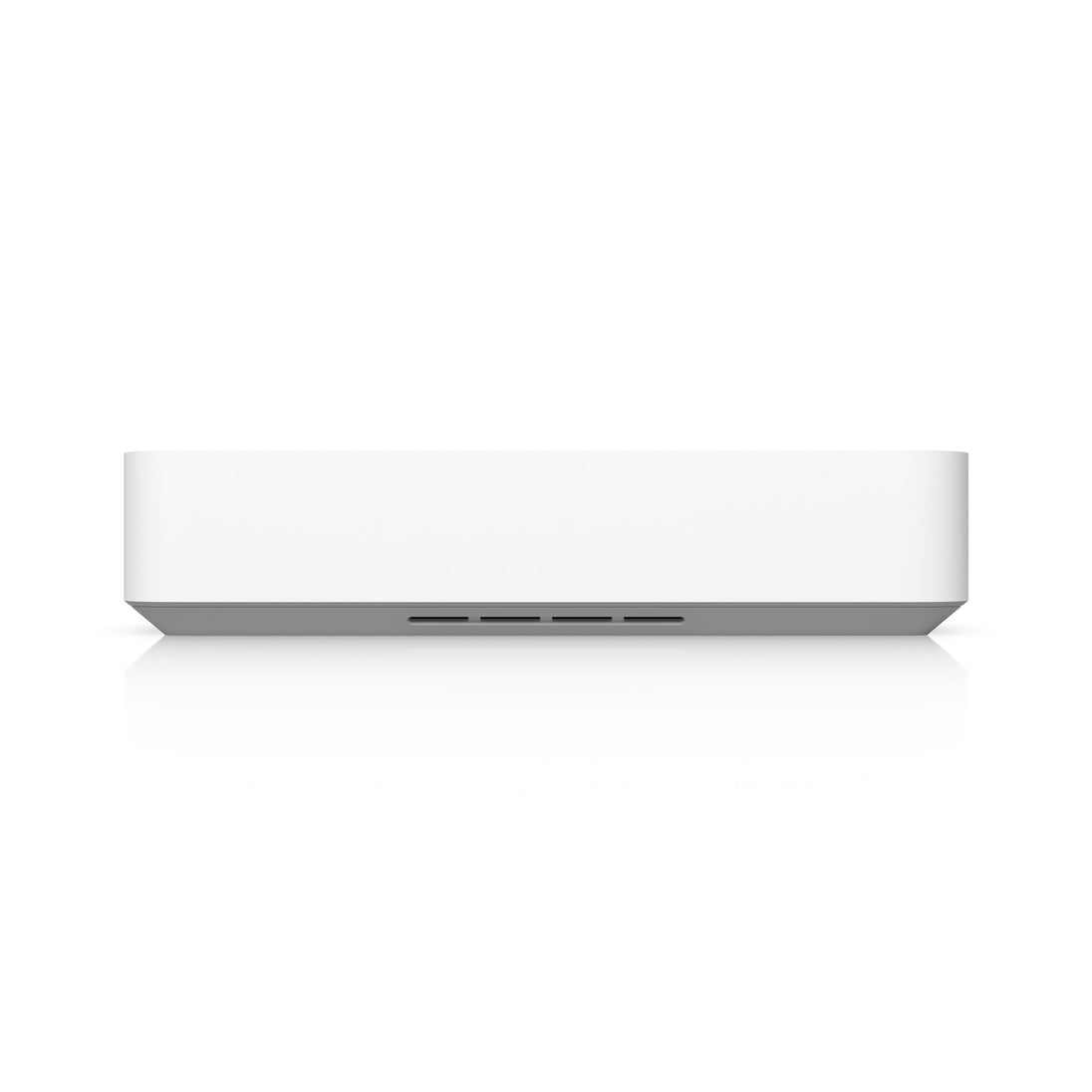

The Ubiquiti Network Video Recorder Instant is a compact desktop recorder for homes and small businesses building a UniFi Protect camera system. It also suits installers who need local recording and a direct way to connect several cameras in a compact setup.
Specification
| Specification | Detail |
|---|---|
| Dimensions | 220 x 220 x 47 mm (8.7 x 8.7 x 1.9") |
| UniFi Application Suite | Protect - Yes Access - Yes |
| Managed Cameras | (15) HD (8) 2K (6) 4K |
| Managed Access Hubs | 50 Storage Capacity (1) 3.5" drive bay |
| Data Protection | Yes |
| Vantage Point | yes |

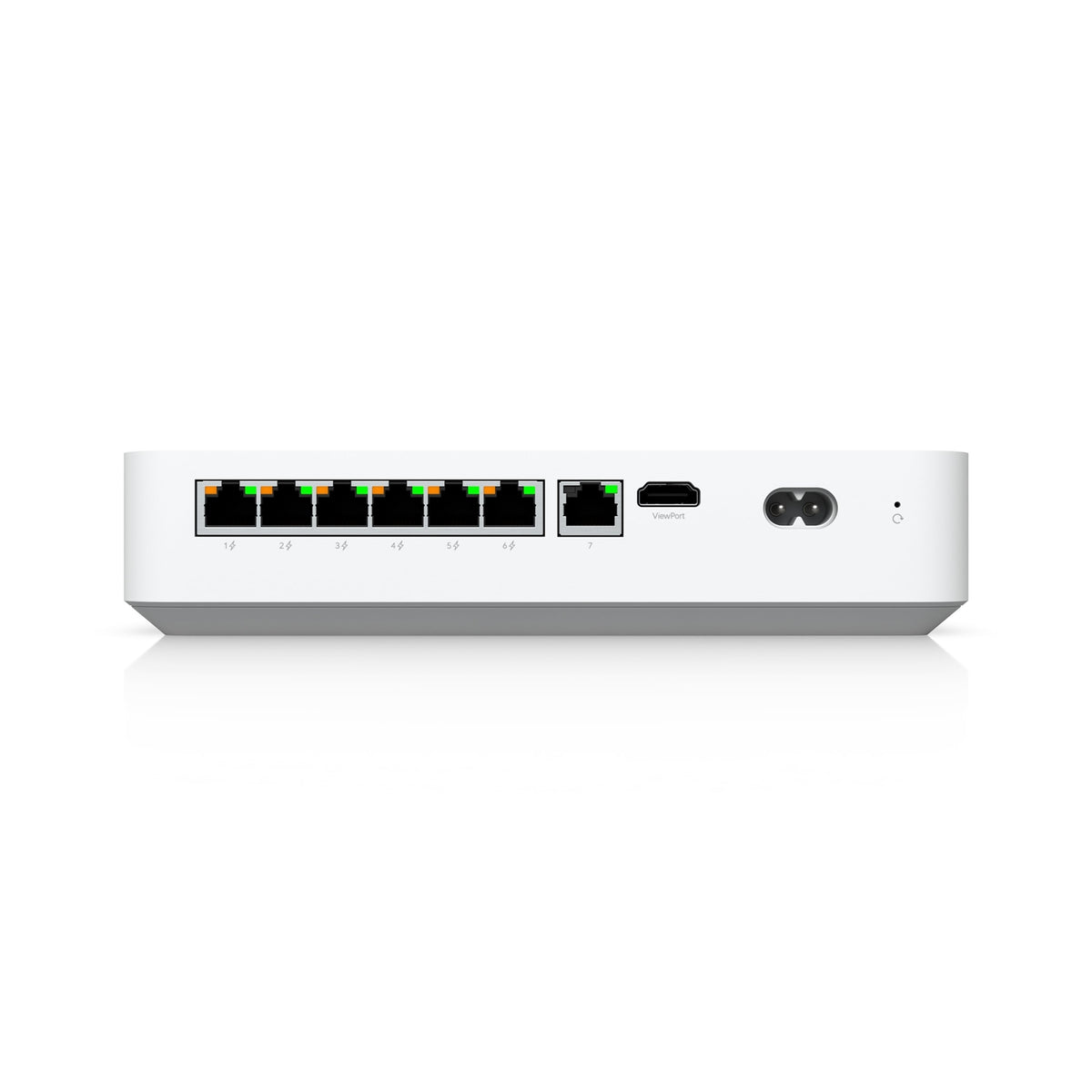

| Networking Interface | (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, Din rail mount (Included) |
| Door Access Support | Yes |

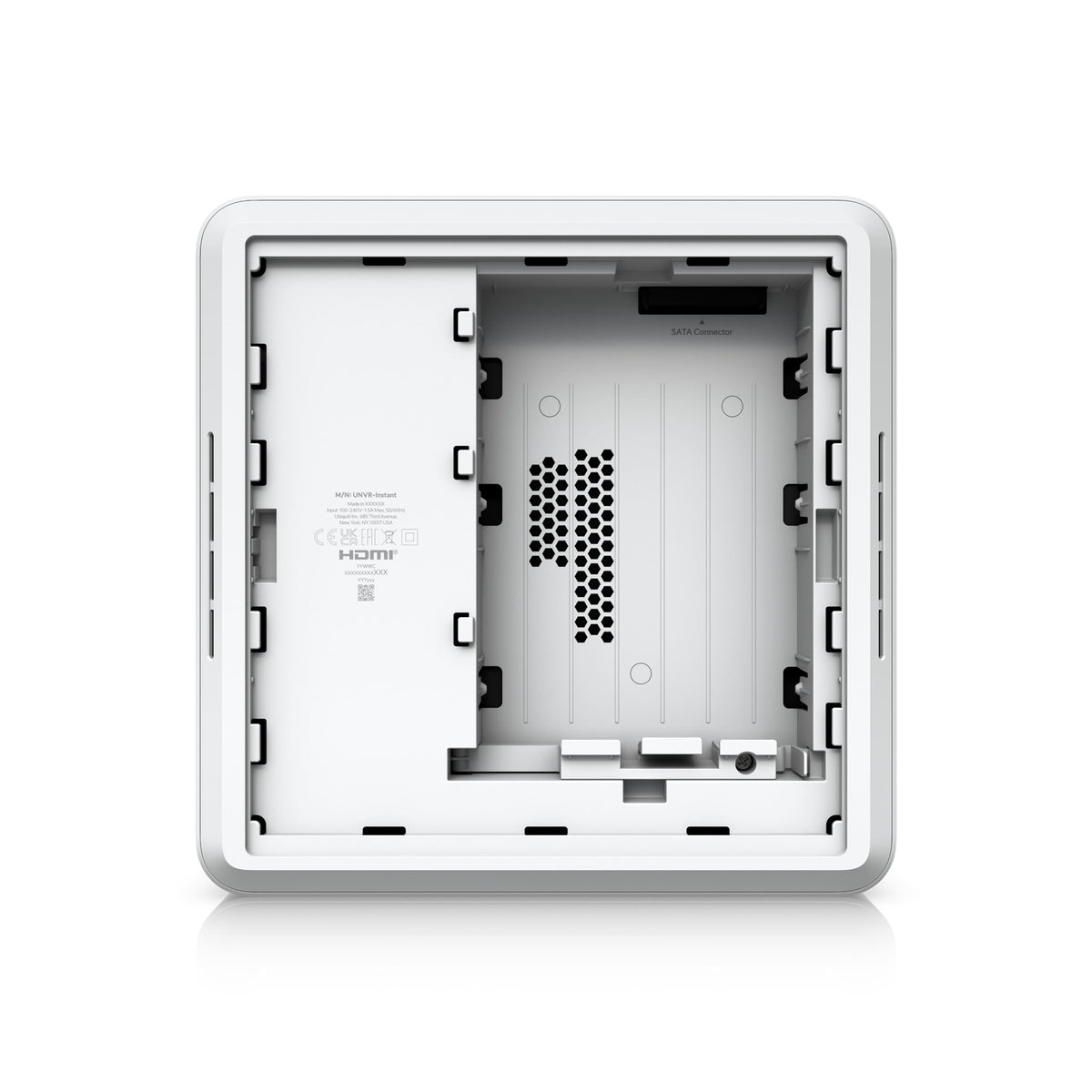

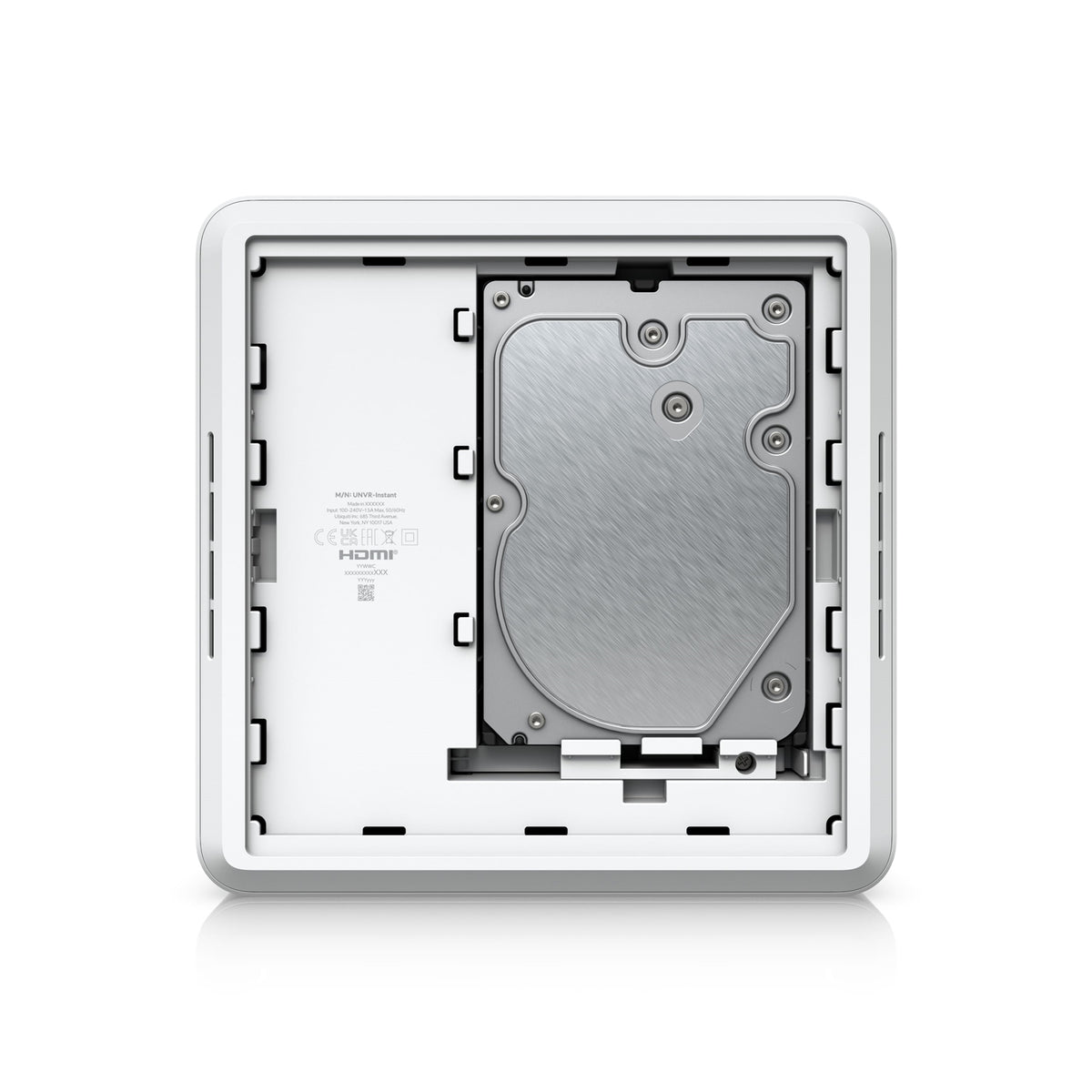

| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9W |
| Power Method | Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W Max. PoE Wattage per Port by PSE PoE 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Processor | Quad-core ARM Cortex-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet Bluetooth |

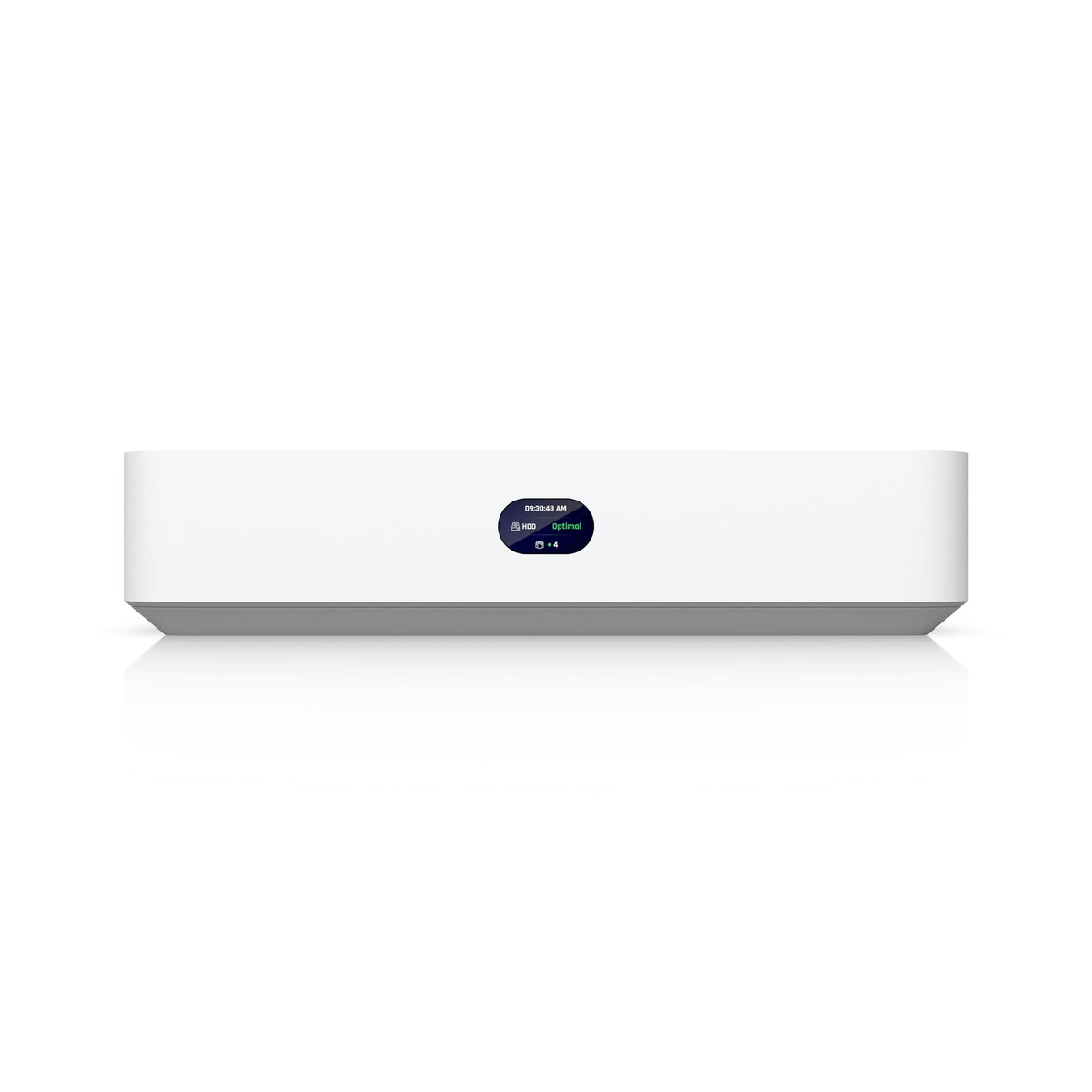

| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| LEDs | Ethernet - Yes PoE - Yes |
| Ambient Operating Temperature | 0 to 40C (32 to 104F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE, Electrical Safety |
-
