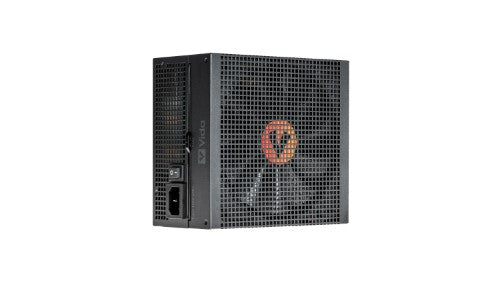

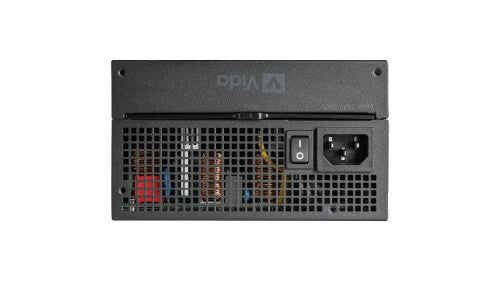

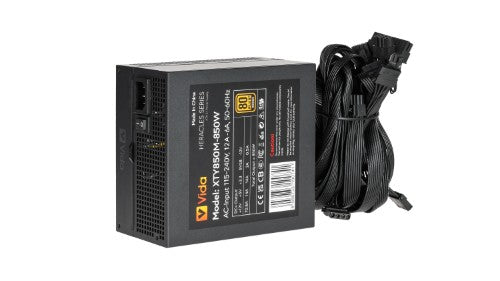

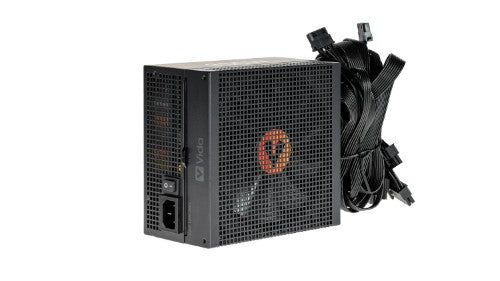

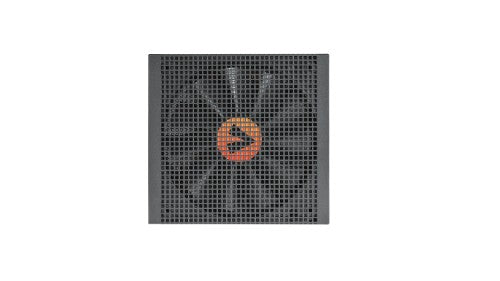

VIDA 850W Heracles Black ATX 3.1 Gaming PSU, 80+ Bronze, 14cm Ultra-Quiet FDM Fan, Flat Black Cables, PCIe 5.1, Power Lead Not Included power supply unit 24-pin ATX

850W Heracles Black ATX 3.1 Gaming PSU, 80+ Bronze, 140mm Ultra-Quiet FDM Fan, Flat Black Cables, PCIe 5.1, Power Lead Not Included

Description

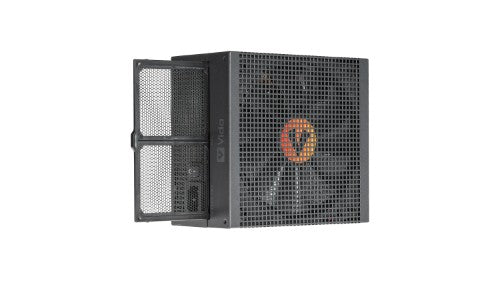

Elevate your PC's performance with the Heracles 850W Bronze power supply (XTY850M-850W). Designed for ATX 12V compatibility, this fully wired unit delivers 850 watts of reliable power. It comes equipped with essential connectors, including SATA and PCIe, and features an ultra-quiet 140mm black fan with fluid/hydraulic bearing for efficient cooling and stable performance. One standout feature is the removable dust filter, which helps maintain optimal airflow and prolongs the power supply's lifespan. With an 80+ Bronze certification, the Vida 850W Heracles power supply balances power efficiency and reliability, all backed by a 2-year warranty for your peace of mind.

Specifications

Cooling
Fan diameter	14 cm
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Purpose	PC
ATX version	3.1
Country of origin	China
Bearing technology	FDB
Removable filter	Yes
Design
80 PLUS certification	80 PLUS Bronze
Product colour	Black
Fan diameter	14 cm
On/off switch	Yes
Number of fans	1 fan(s)
Illumination	No
Fan location	Top
Country of origin	China
Cooling type	Active
Power
Total power	850 W
AC input voltage	115 - 240 V
AC input frequency	50/60 Hz
Input current	10-8 A
Power Factor Correction (PFC) type	Active
Max output current (+3.3V)	14 A
Max output current (+12V)	70.8 A
Max output current (+5V)	14 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	2 A
Power protection features	Over voltage
Efficiency	85%
Number of +12V rail(s)	1
Ports & interfaces
Motherboard power cable length	55 cm
SATA power cable length	750 mm
Peripheral (Molex) power cable length	750 mm
PCI Express power cable length	70 cm
CPU power cable length	65 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	6
Number of PATA power connectors	3
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	4
CPU P4 connector (4-pin)	2
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
Floppy disk drive connector	No
ATX Power connector (24-pin)	Yes
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (12+4 pin)	1
PCI Express power connectors (12+4 pin) cable length	600 mm
Number of SATA power cables	2
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Certificates
Compliance certificates	UKCA, RoHS, Federal Communications Commission (FCC), CCC, CB, CE
80 PLUS certification	80 PLUS Bronze
Packaging content
Cables included	CPU, PCIe, PATA, SATA, Peripheral (Molex)
Weight & dimensions
Width	160 mm
Depth	86 mm
Height	156 mm
Weight	1.76 kg
Packaging data
Cables included	CPU, PCIe, PATA, SATA, Peripheral (Molex)
Package depth	140 mm
Package width	295 mm
Package height	200 mm
Package weight	2.18 kg
Technical details
Compliance certificates	UKCA, RoHS, Federal Communications Commission (FCC), CCC, CB, CE
Logistics data
Country of origin	China
