Vision TC 15MUSBC/BL USB cable 15 m USB C Black

15m, USB-C, 4K/60Hz, Black

Description

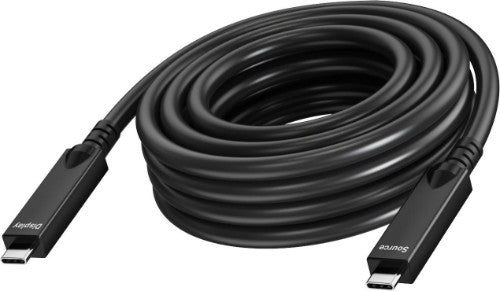

Black USB-C Cable 15m

USB-C is the latest USB connector. It has a smaller reversible plug which supports USB 3.2 Gen 1 signal. This cable is compatible with both 2-lane and 4-lane configurations. For a 4-lane connection, both connected devices must support 4 lanes.

Very Tough

This cable, reinforced with a Kevlar core, is designed to resist stretching forces. It can withstand a continuous force of up to 200 newtons or a momentary peak force of up to 400 newtons.

Tight Bends

Fiber cables boast a significantly tighter bend radius compared to copper cables. This particular cable features a dynamic bend radius of 20 mm and a static bend radius of 10 mm.

Directional

This cable contains a chip integrated into each connector, so the end marked 'display' must be connected to the display. The ends are not interchangeable.

Maximum Resolution

4K & 60 Hz

Specifications

Features
Country of origin	China
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector 1	USB C
Connector 2	USB C
Cable length	15 m
Connector contacts plating	Nickel
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Male
Cable jacket material	Kevlar, Polyvinyl chloride (PVC)
Output current (max)	3 A
Cable diameter	6.5 mm
Weight	1 kg
Quantity per pack	1 pc(s)
Power
Output current (max)	3 A
Weight & dimensions
Cable diameter	6.5 mm
Cable length	15 m
Weight	1 kg
Package width	180 mm
Package depth	180 mm
Package height	55 mm
Package weight	1.1 kg
Packaging data
Package width	180 mm
Package depth	180 mm
Package height	55 mm
Package weight	1.1 kg
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Ports & interfaces
Connector 1	USB C
Connector 2	USB C
Connector contacts plating	Nickel
Technical details
Product colour	Black
Country of origin	China
Compliance certificates	CE, RoHS
Certificates
Compliance certificates	CE, RoHS
Other features
Product colour	Black
Compliance certificates	CE, RoHS
Logistics data
Country of origin	China
