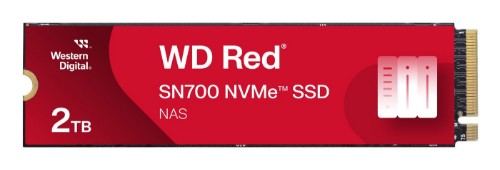

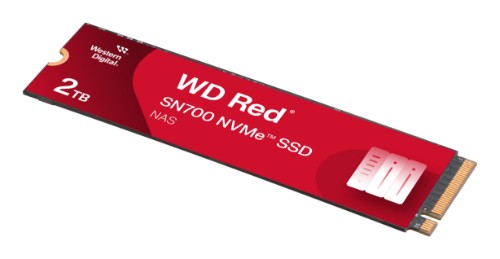

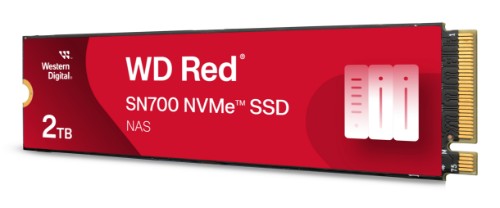

Western Digital Red WD ™ SN700 NVMe™ POWERED BY SANDISK 2 TB

WD Red SN700 NVMe POWERED BY SANDISK 2 TB

Description

Accelerate Your NAS

Tackle extreme workloads in high-intensity NAS environments with the fast-caching WD Red SN700 NVMe™ SSD. The drive’s robust system responsiveness and exceptional I/O performance are perfect for multi-user, multitasking applications, letting you tame your SMB’s toughest projects from virtualization to collaborative editing to intensive database storage with efficient caching —all while helping to lower your TCO.

Accelerate Your NAS
The fast-caching power of the WD Red SN700 NVMe™ SSD delivers robust system responsiveness and exceptional I/O performance compared to our SATA SSDs.

Built to Last
Tackle 24/7 NAS workload environments with reliability and endurance of up to 5100 TBW (4TB1 model), backed by a 5-year limited warranty.

Step Up to NVMe™
Tame your SMB’s toughest projects—from virtualization to collaborative editing to intensive database storage with efficient caching —with storage designed to outperform while helping to lower your TCO.

Perfect for SMBs
Even in smaller operations, multiple people working at the same time can tax a NAS device. NVMe caching easily handles random workloads in multi-user, multitasking applications to let small-to-medium businesses do more.

Optimize Your Workflow
Purpose-built and tested to be compatible with many of today’s most popular NAS systems for maximum flexibility to optimize your workflow.

Specifications

Hard drive
SSD capacity	2 TB
Data transmission
Read speed	3400 MB/s
Write speed	2900 MB/s
Random write (4KB)	540000 IOPS
Random read (4KB)	480000 IOPS
Data transfer rate	8 Gbit/s
Endurance
Mean time between failures (MTBF)	1750000 h
Features
Interface	PCI Express 3.0
Component for	NAS
NVMe	Yes
TBW rating	2500
SSD capacity	2 TB
Read speed	3400 MB/s
Write speed	2900 MB/s
Random write (4KB)	540000 IOPS
Random read (4KB)	480000 IOPS
Mean time between failures (MTBF)	1750000 h
Data transfer rate	8 Gbit/s
Certification	FCC, UL, TUV, KCC, BSMI, VCCI, C-Tick
SSD form factor	M.2
Harmonized System (HS) code	84717070
Power
Current	2.8 A
Certificates
Certification	FCC, UL, TUV, KCC, BSMI, VCCI, C-Tick
Performance
Interface	PCI Express 3.0
Component for	NAS
NVMe	Yes
TBW rating	2500
SSD capacity	2 TB
Read speed	3400 MB/s
Write speed	2900 MB/s
Random write (4KB)	540000 IOPS
Random read (4KB)	480000 IOPS
Mean time between failures (MTBF)	1750000 h
Data transfer rate	8 Gbit/s
Design
Component for	NAS
Certification	FCC, UL, TUV, KCC, BSMI, VCCI, C-Tick
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Weight	7.5 g
Height	2.38 mm
Depth	80 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-55 - 85 °C
Technical details
Interface	PCI Express 3.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-55 - 85 °C
SSD form factor	M.2
Logistics data
Harmonized System (HS) code	84717070
