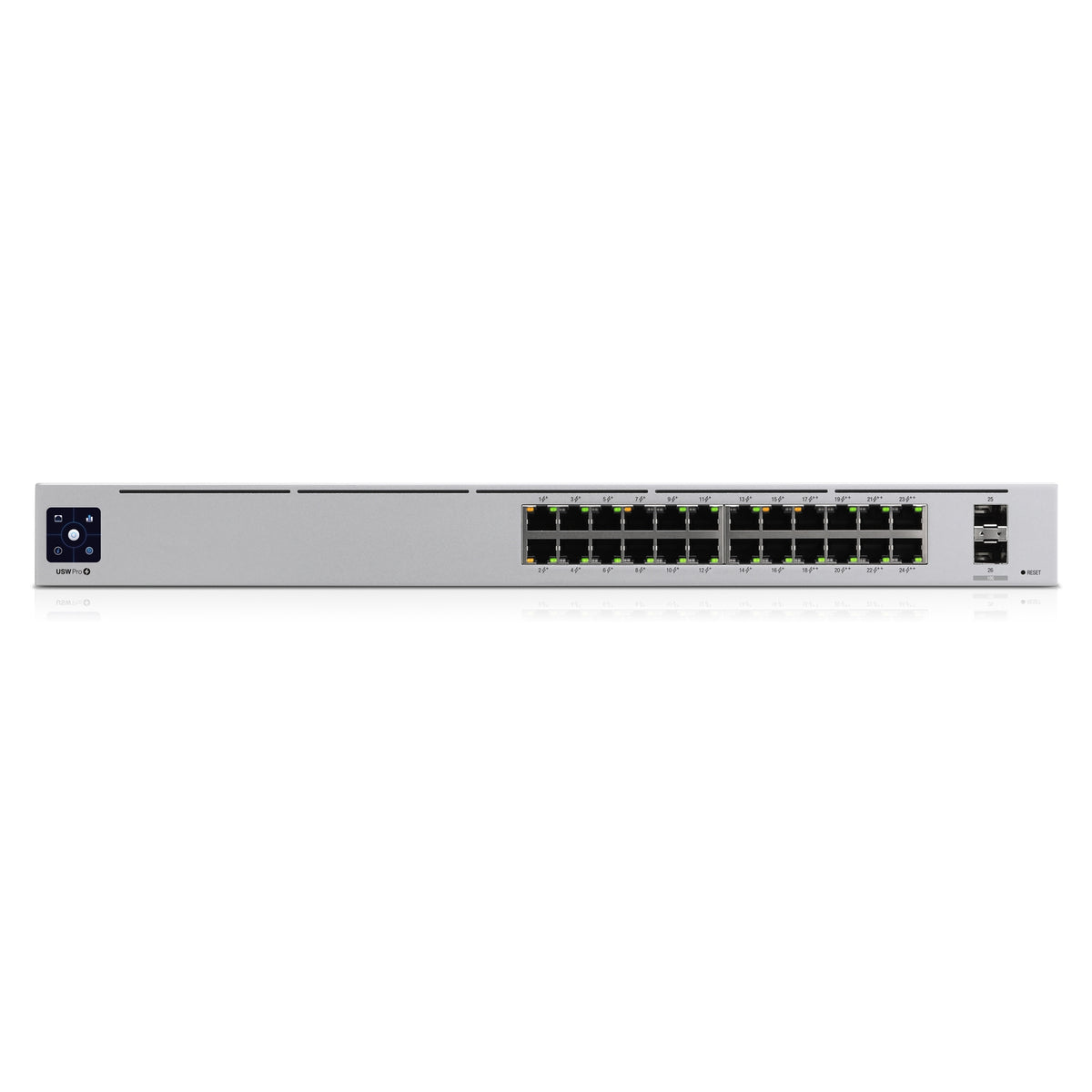

We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
* Available in a future software release
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Synchronized LCM Displays
Touch one to wake up all the screens and view a rich set of information.
System Information
Errors
Warnings
Port Statistics
PoE Power
Throughput
And a lot more...
Specifications
Power Budget
AC/DC, Internal, 450W
RJ45
(24) 10/100/1000 RJ45 Ports
PoE+
(1-16) IEEE 802.3af/at
PoE++
(17-24) 60W IEEE 802.3bt
SFP+
(2) 1/10G SFP+ Ethernet Ports
LCM
Yes
USP-RPS Power Redundancy
Yes
Dimensions
442.4 x 285.4 x 43.7 mm
-
